Summary of Contents for Lynx CPS-210

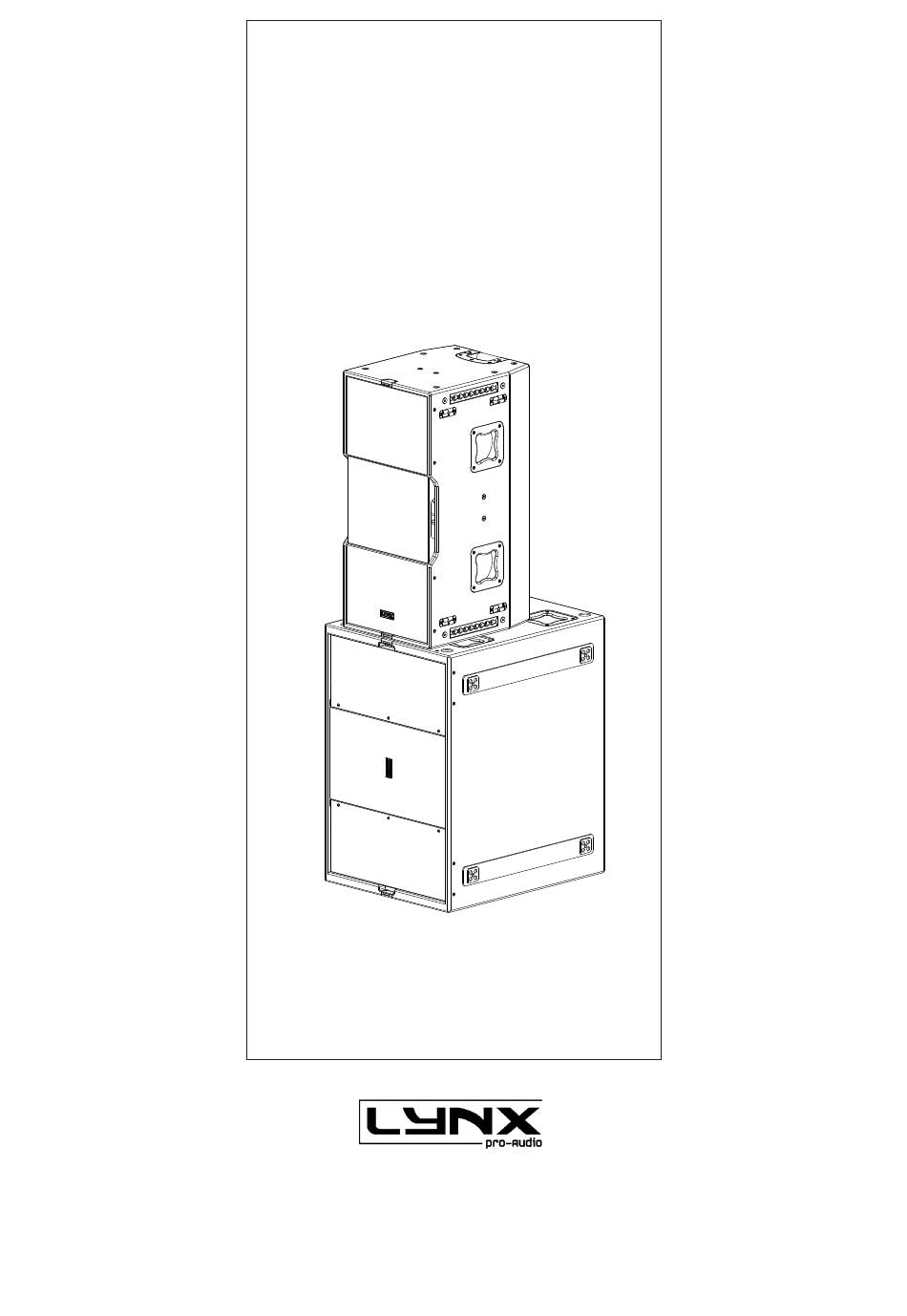

- Page 1 CPS series USER MANUAL CPS-214 CPS-210 CPS-14 CPS-18S Lynx Pro Audio S.L. Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com V.23.12...
- Page 2 LYNX Pro Audio S.L. Calle 1 - Pol. Ind. Picassent E-46220 Picassent (Valencia) CE CERTIFICACTION, EUROPEAN PRODUCT This user guide is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited. Copyright 2020. All rights reserved.
-
Page 3: Table Of Contents
The CPS (Coaxial Point Source) Series is our new high power, point source system. There are three coaxial point source cabinets available: CPS-214, CPS-210 and CPS-14, together with one sub-bass unit, CPS-18S. Extreme care has been taken to select and customize the most advanced components on the market, including coaxial Mid/high drivers together with full electronic synergy through the coupling of the system amplification &... -
Page 4: Safety Precautions
When flying this system please observe the technical and “Rainbow” software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual. Use Only flying accessories provided by Lynx Pro Audio S.L. Rigging must be always carried out by professionals. • Delicate Material Please ensure no foreign object or water enters the speaker. -
Page 5: System Overview
16A Neutrik powerCON TRUE1 TOP with looping output Finish: Polyurea coating, high grade resistant paint Material: 15 mm Premium birch plywood Dimensions: 900 x 420 x 515 mm (H x W x D) Weight: 49 Kg (108 lbs) • CPS-214 measurements Lynx Pro Audio S.L www.lynxproaudio.com... -

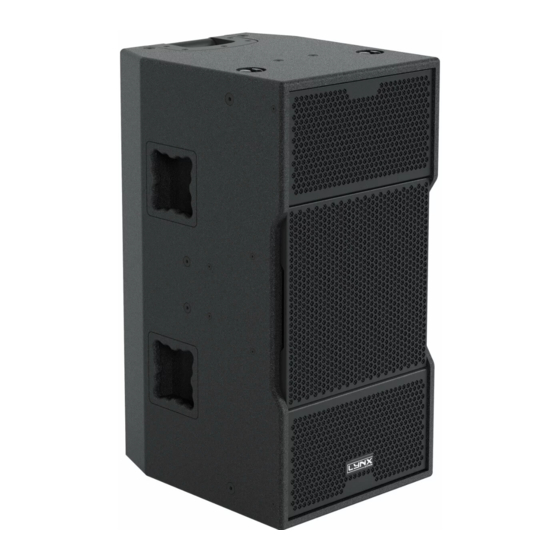

Page 6: Cps-210
16A Neutrik powerCON TRUE1 TOP with looping output Finish: Polyurea coating, high grade resistant paint Material: 15 mm Premium birch plywood Dimensions: 710 x 350 x 428 mm (H x W x D) Weight: 35 Kg (77.1 lbs) CPS-210 measurements • Lynx Pro Audio S.L www.lynxproaudio.com... - Page 7 16A Neutrik powerCON TRUE1 TOP with looping output Finish: Polyurea coating, high grade resistant paint Material: 15 mm Premium birch plywood Dimensions: 755 x 415 x 430 mm (H x W x D) Weight: 33 Kg (72.75 lbs) CPS-14 measurements • Lynx Pro Audio S.L www.lynxproaudio.com...
-
Page 8: Cps-18S
16A Neutrik powerCON TRUE1 TOP with looping output Finish: Polyurea coating, high grade resistant paint Material: 15 mm Premium birch plywood Dimensions: 600 x 900 x 750 mm (H x W x D) Weight: 62 Kg (136.6 lbs) CPS-18S measurements • Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 9: Back Panel
CPS Series User Manual CPS BACK PANEL panel CPS-214, CPS-210 and CPS-14 back panel: IPS display & digital control Multifunction joystick control digital INPUT Main input Main Link digital Through analog analog connection Ethernet Through INPUT Lynx Pro Audio S.L... - Page 10 CPS Series User Manual CPS BACK PANEL panel CPS-18S back panel: Main input Main Link IPS display & digital control digital INPUT Multifunction joystick control digital Through analog analog connection Ethernet Through INPUT Lynx Pro Audio S.L www.lynxproaudio.com...
-
Page 11: Connectors And Connections
AC Power c onnect ors under load. NAC3FX-W NAC3MX-W XLR SOCKET CONNECTORS XLR AEREAL CONNECTORS INPUTS 1.- EARTH 2.- LIVE (+) 3.- LIVE (-) OUTPUTS 1.- EARTH 2.- LIVE (+) 3.- LIVE (-) Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 12: Configuring The Digital Signal Processor
On the second screen you can modify some parameters. • Gain • Mute • Polarity • Delay • High Pass Filter: You can setup a High Pass filter selecting type, frequency and order. Lynx Pro Audio S.L www.lynxproaudio.com... - Page 13 The last screen shows you some general information regarding the cabinet’s components. Here you can see the cabinet model, its serial number, DSP firmware and hardware versions, amp module model with hardware version, as well as the accelerometer status. Lynx Pro Audio S.L www.lynxproaudio.com...
-
Page 14: Online Control System
User Manual ONLINE CONTROL SYSTEM • Who is it for? Users of Self powered DSP incorporated Lynx Pro Audio Cabinets where the user has requested the cabinets be supplied with the Ethernet Module kit. • What is it for? Obtain detailed information of cabinet behaviour and monitor the cabinet/s in real time. You can change the preset, gain, mute, polarity and phase. -
Page 15: Rainbow 3D Acoustic Simulation Software
Additionally, the export of FIR coefficients can be performed with the optimization for later loading in the DSP via Ethernet or a USB device. In the near future direct communication with Lynx Pro Audio and OCS will be available. -
Page 16: Hardware And Accessories
UBR-HCPS214 UBR-VCPS214 UBR-HCPS210 UBR-VCPS210 UBR-HCPS14 UBR-VCPS14 Horizontal U bracket for Vertical U bracket for CPS- CPS-214, CPS-210 or 214, CPS-210 or CPS-14 CPS-14 CA-CPS18S CA-CPS214 Removable front transport Removable front transport dolly for CPS-18S dolly for CPS-214 AGR-10 SV-CPS214... - Page 17 How to rotate the horn • The CPS-214, CPS-210 and CPS-14 cabinets enable the horn to be rotated 60º H x 40º V offering further coverage options. The rotatable horn feature enables the installer to also set the cabinet up horizontally whilst maintaining the horn features such as horizontal and vertical coverage.
- Page 18 Make sure that the horn fits correctly. Make sure it is correctly fixed. • Place the cabinet grill back into the former position. Make sure that the cabinet grill is properly fixed with the magnets. Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 19 U BRACKET: HORIZONTAL MOUNTING FOR CPS-214 / CPS-210 / CPS-14 UBR-HCPS is the horizontal mounting system specially designed for Lynx Pro Audio CPS-214, CPS-210 and CPS-14 cabinets. In order to correctly mount the horizontal U bracket, you must first put the wooden adapter (Picture A) before mounting the U bracket.
- Page 20 CPS Series User Manual U BRACKET: HORIZONTAL MOUNTING FOR CPS-214 / CPS-210 / CPS-14 Now, you can attach the UBR-HCPS, composed by the U type support made of steel and 4 special fixing screws (2 per side) in order to fix the cabinet to the U support.
- Page 21 CPS Series User Manual U BRACKET: HORIZONTAL MOUNTING FOR CPS-214 / CPS-210 / CPS-14 The first thing to do is to fix the UBR support in the place required (ceiling, wall, floor, etc). Always check the suspension point is secure and free of excess weight, vibration, etc.
- Page 22 CPS Series User Manual U BRACKET: HORIZONTAL MOUNTING FOR CPS-214 / CPS-210 / CPS-14 If you choose Position 1 or 2 you will have to insert two special fixing screws into the cabinet (one per side) before installing the enclosure.
- Page 23 U BRACKET: VERTICAL MOUNTING FOR CPS-214 / CPS-210 / CPS-14 UBR-VCPS is the vertical mounting system specially designed for Lynx Pro Audio CPS-214, CPS-210 and CPS-14 cabinets. It is composed by the U type support made of steel and 4 special fixing screws (2 per side) in order to fix the cabinet to the U support.
- Page 24 CPS Series User Manual U BRACKET: VERTICAL MOUNTING FOR CPS-214 / CPS-210 / CPS-14 Vertical mounting installation The first thing to do is to fix the UBR support in the place required (ceiling, wall, floor, etc). Always check the suspension point is secure and free of excess weight, vibration, etc. And be careful where the cabinets are suspended from.
- Page 25 CPS Series User Manual U BRACKET: VERTICAL MOUNTING FOR CPS-214 / CPS-210 / CPS-14 Once the 2 screws are inserted (keeping 12 mm free) into the enclosure (one per side) then you can hook up the cabinet (from the 12 mm free screws) into the UBR support.
-
Page 26: How To Use The Flying Frame Sv-Cps On Cps-214
12º 0º 12º 9º 6º 3º 0º Use the screws given with support kit to fix the frame (Figure C). Once the frame is secure, it can be hooked up for its installation (Figure D). Lynx Pro Audio S.L www.lynxproaudio.com... - Page 27 Figure C. NOTE: The start position will be 0 degrees. The angulation can open up to 12 degrees. Each point will add 3 degrees of angulation. Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 28 NOTE: Each hole has a degree position, as shown in the picture above. Make sure to insert the screws in the right holes to obtein the desired angulation. • Finally, you can hook the flying bracket to the engine in the desired position. Lynx Pro Audio S.L www.lynxproaudio.com...
-
Page 29: How To Use The Transport Dolly On Cps-214
HOW TO USE THE TRANSPORT DOLLY FOR CPS-214 Transport dolly for CPS-214: • • CPS-214 on a dolly with squid wheels for easy transport. Squid wheels • Remove latches from above and take off the dolly. Latches Latches Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 30: How To Use The Transport Dolly On Cps-18S
CPS Series User Manual HOW TO USE THE TRANSPORT DOLLY FOR CPS-18S Transport dolly for CPS-18S: • Squid wheels • Lay the cabinet carefully, remove latches and take off the dolly. Latches Latches Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 31: Application Examples For Cps-214 And Cps-18S
APPLICATION EXAMPLES FOR CPS-214 AND CPS-18S • Combination: 1 CPS-214 vertically mounted on top + 1 CPS-18S subwoofer in vertical position • Combination: 2 CPS-18S subwoofers stacked in horizontal + 1 CPS-214 on top in horizontal position Lynx Pro Audio S.L www.lynxproaudio.com... - Page 32 CPS Series User Manual APPLICATION EXAMPLES FOR CPS-214 AND CPS-18S • Combination: 2 CPS-18S subwoofers stacked in horizontal + 1 CPS-214 on top in vertical position Lynx Pro Audio S.L www.lynxproaudio.com...
-
Page 33: Application Examples For Cps-210 And Cps-18S
User Manual APPLICATION EXAMPLES FOR CPS-210 AND CPS-18S • Combination A: 1 CPS-210 mounted on top on vertical position as satellite with the subwoofer CPS-18S in horizontal position. • Combination B: 1 CPS-210 mounted on top on vertical position as satellite with the subwoofer CPS-18S in vertical position. -
Page 34: Application Examples For Cps-14 And Cps-18S
• Combination A: 1 CPS-14 mounted on top on vertical position as satellite with the subwoofer CPS-18S in horizontal position. • Combination B: 1 CPS-14 mounted on top on vertical position as satellite with the subwoofer CPS-18S in vertical position. Lynx Pro Audio S.L www.lynxproaudio.com... - Page 35 Calle 1 - Pol. Ind. Picassent 46220 Picassent (Valencia) SPAIN - EU Tel.: (+34) 961 10 96 01 www.lynxproaudio.com Lynx Pro Audio S.L. declares that ionic series are in conformity with the following EC directives: Low Voltage Directive 2014/35/UE Electromagnetic Compatibility EMC 2014/30/UE...
-
Page 36: Certifications And Guarantee
Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L. would supply all the necessary parts.
