Page 1: User Manual

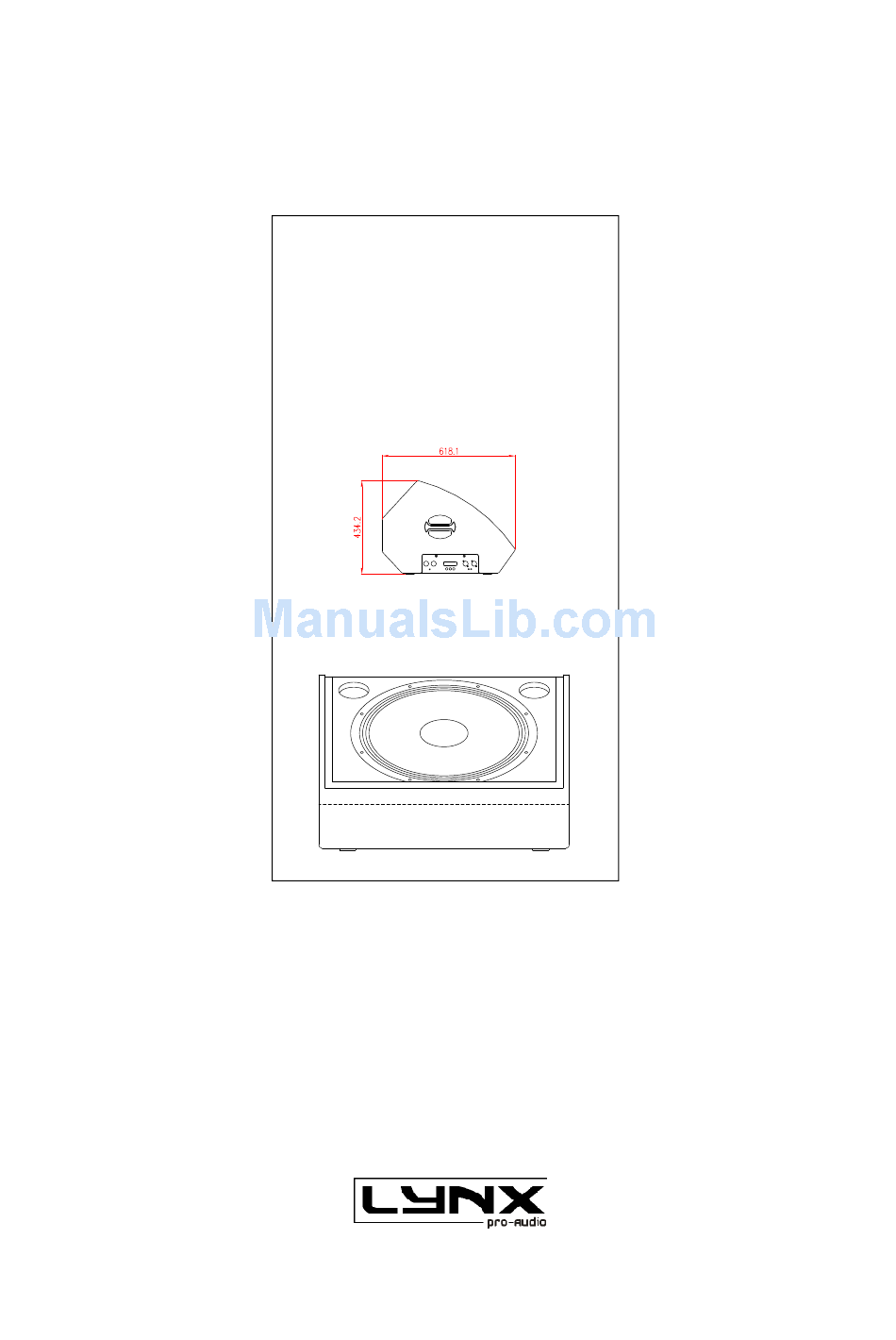

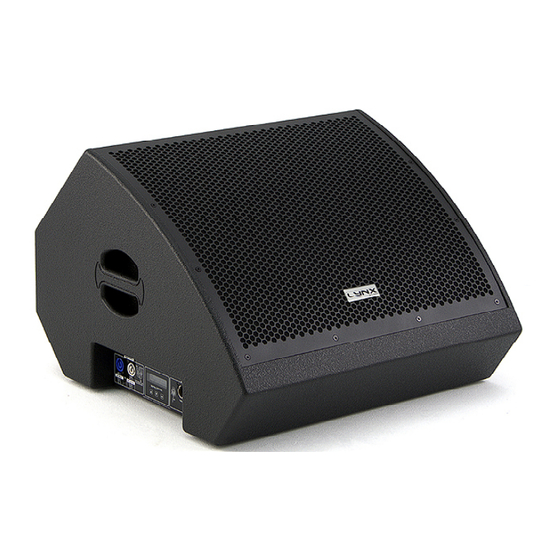

ADP-15M USER MANUAL V.12.12 Lynx Pro Audio S.L. Valencia, Spain www.lynxproaudio.com - info@lynxproaudio.com... - Page 2 ADP-15M Class D Powered (bi-amplified) Integrated Digital Processing Internal temperature control Electronic protection High quality components Online monitoring available LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
- Page 3 CB SCHEME, IEC SYSTEM FOR CONFORMITY TESTING AND CERTIFICATION OF ELECTRICAL EQUIPMENT CE CERTIFICACTION, EUROPEAN PRODUCT This user manual is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited. Copyright 2012. All rights reserved.
-
Page 4: Table Of Contents
BACK PANEL CONNECTORS AND CONNECTIONS - CONFIGURING THE CABINET DSP OPTIONS PRESET LIST FIR FILTERS CONFIGURATION PANEL SELECT AND RUN PRESET - ONLINE CONTROL SYSTEM - CONFIGURING ETHERNET - GUARANTEE LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... - Page 5 Do not hang the cabinets from the handles or from any other part other than the designated hanging point. When flying this system please observe the technical and “Lynx On Stage” software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual.
-
Page 6: Specifications
ADP-15M INTRODUCTION To facilitate, correct and reliable use of the stage monitor ADP-15M we have designed this instruction manual. Please read the manual carefully before proceeding to install the system. Please observe the technical data carefully and do not ignore the instructions included within this manual. -
Page 7: Back Panel
2.- LIVE (+) 3.- LIVE (-) 3.- LIVE (-) XLR AEREAL CONNECTORS Connect to input 1 Earth 2 Live(+) 3 Live(-) Connect to output 1 Earth 2 Live(+) 3 Live(-) LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... - Page 8 N - Neutral CAUTION: Do not connect or - Earth disconnect the AC Power connectors under load. CONNECTION EXAMPLE: 3 ADP-15M CABINETS Connect to signal output Connect to AC output LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
-
Page 9: Configuring The Cabinet Dsp Options
Finite Impulse Response (FIR) filters are used in the signal processing of the ADP-15M cabinet. FIR is a type of digital filter with linear phase characteristics. This frees system designers from the constraints of phase anomalies associated with analogue filters or their digital versions (IIR, Infinite Impulse Response). When properly used, FIR filtering can audibly improve a system’s impulse response and reduce crossover interference. -
Page 10: Configuration Panel
Once found, press OK (Fig2(3)) until the progress bar finishes (Fig3). The display will indicate “Loading DSP” (Fig4) Fig 3 Fig 4 Fig 2 Note: In case of a power cut, the DSP will save its last configuration when restarted. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... -
Page 11: Online Control System
ADP-15M ONLINE CONTROL SYSTEM Who is it for? Users of Self powered DSP incorporated Lynx Pro Audio Cabinets where the user has requested the cabinets be supplied with the Ethernet Module kit. What is it for? Obtain detailed information of cabinet behaviour and monitor the cabinet/s in real time. You can change the preset, gain, mute, polarity and phase. -
Page 12: Configuring Ethernet
ADP-15M CONFIGURING ETHERNET TO WORK WITH THE ADP-15M There are two possible ways to connect: 1.- Connecting through an ETHERNET SWITCH/HUB:: - You will need a normal CAT5 Cable. 2.- Connecting through a Wirless ETHERNET. Let us now proceed to configure the Ethernet network, setting the IP address of the computer as static. To do this go START >... - Page 13 Open the O.M.S Software and from the Initial Screen choose ETHERNET. It will open a different screen, as follows, there you can see your Network configuration, and the cabinets currently connected. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
- Page 14 Remember there cannot be two devices with exactly the same IP address, the last set of three numbers has to be different and unique to each one of the devices. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
- Page 15 Returning to the main screen, we can see each cabinet showing: Model, IP address and Name, as well as monitoring: RMS Level, Input Clip, Cabinet angulation, amplifier temperature and fan speed. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
- Page 16 It will open the cmd.exe from where you can type the IPCONFIG command ( ipconfig + Enter), which will show your actual IP settings. Here we can see that this PC has IP set as 192.168.2.99. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
- Page 17 If the IP is in use, the device will respond to the Ping, and we will obtain this information: You now have the Cabinets working in the ETHERNET Network Enviroment. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
-
Page 18: Guarantee
Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L.
