Summary of Contents for Lynx Ionic Series

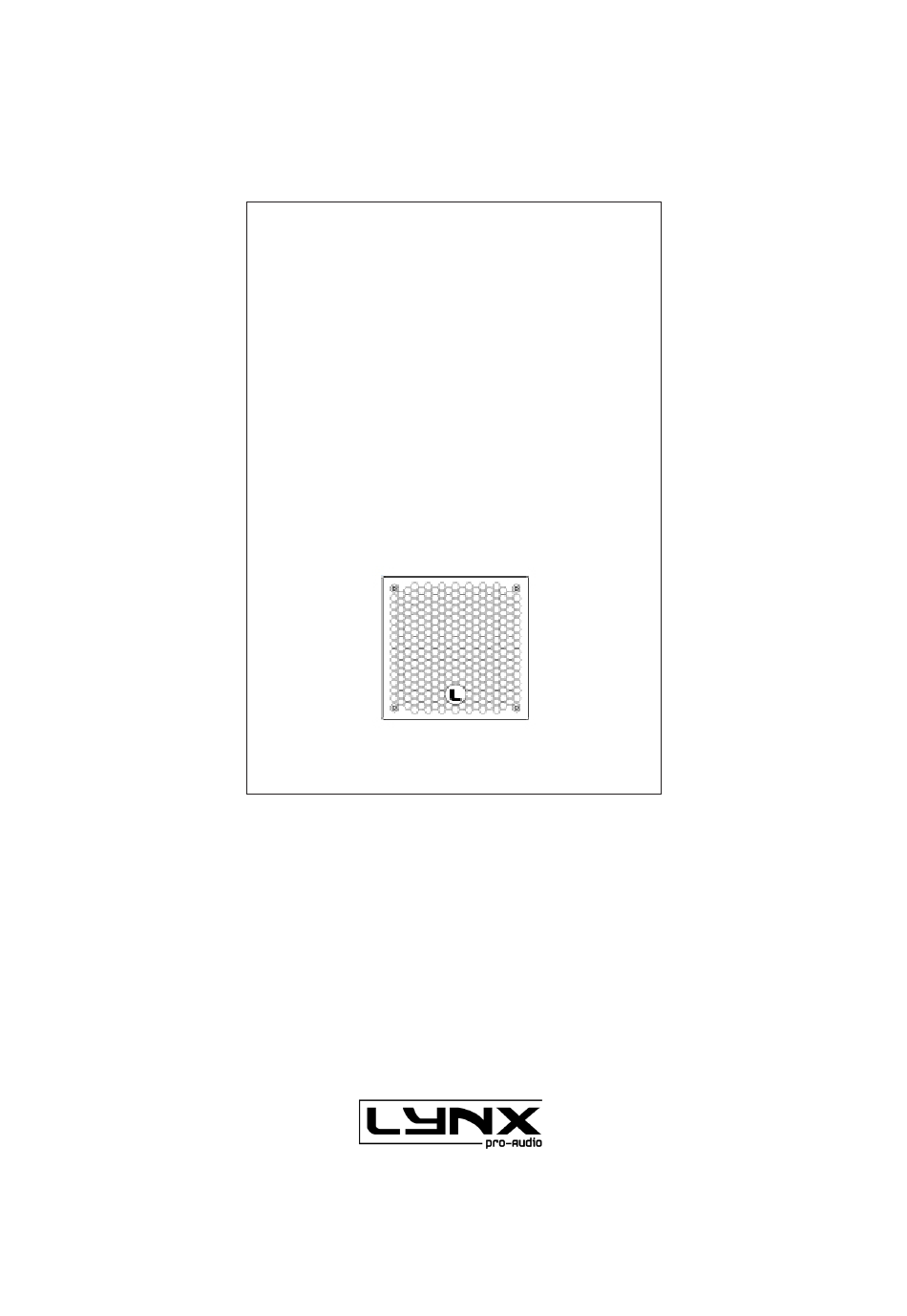

- Page 1 QB series USER MANUAL QB-5 SUB-08 Lynx Pro Audio S.L. Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com V.21.04...
- Page 2 LYNX Pro Audio S.L. Calle 1 - Pol. Ind. Picassent E-46220 Picassent (Valencia) CE CERTIFICACTION, EUROPEAN PRODUCT This user guide is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited. Copyright 2020. All rights reserved.
- Page 3 The QB series comprises one two-way, passive full range cabinet and one subwoofer and is the smallest series that Lynx Pro Audio offers, designed and intended for background sound reinforcement where the power of the HR or BS series is not required.
- Page 4 “Rainbow” software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual. Use Only flying accessories provided by Lynx Pro Audio S.L. Rigging must be always carried out by professionals. • Delicate Material Please ensure no foreign object or water enters the speaker.
- Page 5 9 mm premium birch plywood Dimensions: 254 x 167 x 186 mm (H x W x D) Weight: 3 Kg (6.6 lbs) • QB-5 measurements 2 x M6 for wall bracket (ref.:WB-10) 1 x M6 for wall bracket (ref.:UBR-QB5) Lynx Pro Audio S.L www.lynxproaudio.com...

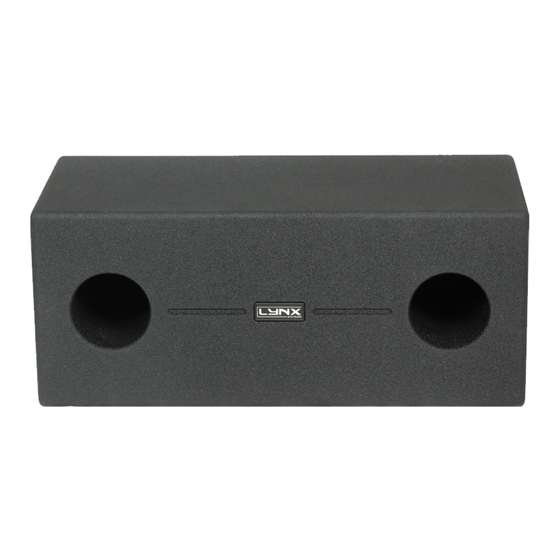

- Page 6 Input connectors: 2 x Neutrik Speakon NL4MP Finish: Polyurea coating Material: 15 mm Premium birch plywood Dimensions: 268 x 641 x 304 mm (H x W x D) Weight: 9 Kg (20 lbs) SUB-08 measurements • Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 7 Insert the male speakon in its corresponding hole and turn right until it clicks. This fixes it safely and strongly and helps stop it being pulled out by mistake. At the other end of the cable connect in the same way to the amplifier channel. Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 8 1 cabinet by the number connected. E.g: 2 QB-8 cabinets in parallel have an impedance of 4Ohm (8Ohm impedance - for 1 cabinet - divided by 2 – numbers of cabinets connected). Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 9 • Multiple listening zones The program can simulate all Lynx Pro Audio’s acoustic enclosures located in a 3D space, including the classic side, top and front views. It can also define multiple listening zones and allows offset positioning and symmetry.
- Page 10 A large selection of accessories are available to help ease the installation and achieve the necessary angulation to direct the sound towards the required listening zones. WB-10 UBR-QB5 Horizontal flying /mounting Wall bracket for the QB-5. bracket for QB-5 Also available in white with Ref.: WB-10W Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 11 Calle 1 - Pol. Ind. Picassent 46220 Picassent (Valencia) SPAIN - EU Tel.: (+34) 961 10 96 01 www.lynxproaudio.com Lynx Pro Audio S.L. declares that ionic series are in conformity with the following EC directives: Low Voltage Directive 2006/95/EC Electromagnetic Compatibility EMC 2004/108/EC...
- Page 12 Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L. would supply all the necessary parts.
