Ionic series
USER MANUAL
IONIC-5CXv
Lynx Pro Audio S.L.
Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com
V.21.04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ionic Series and is the answer not in the manual?

Questions and answers

Related Manuals for Lynx Ionic Series

Summary of Contents for Lynx Ionic Series

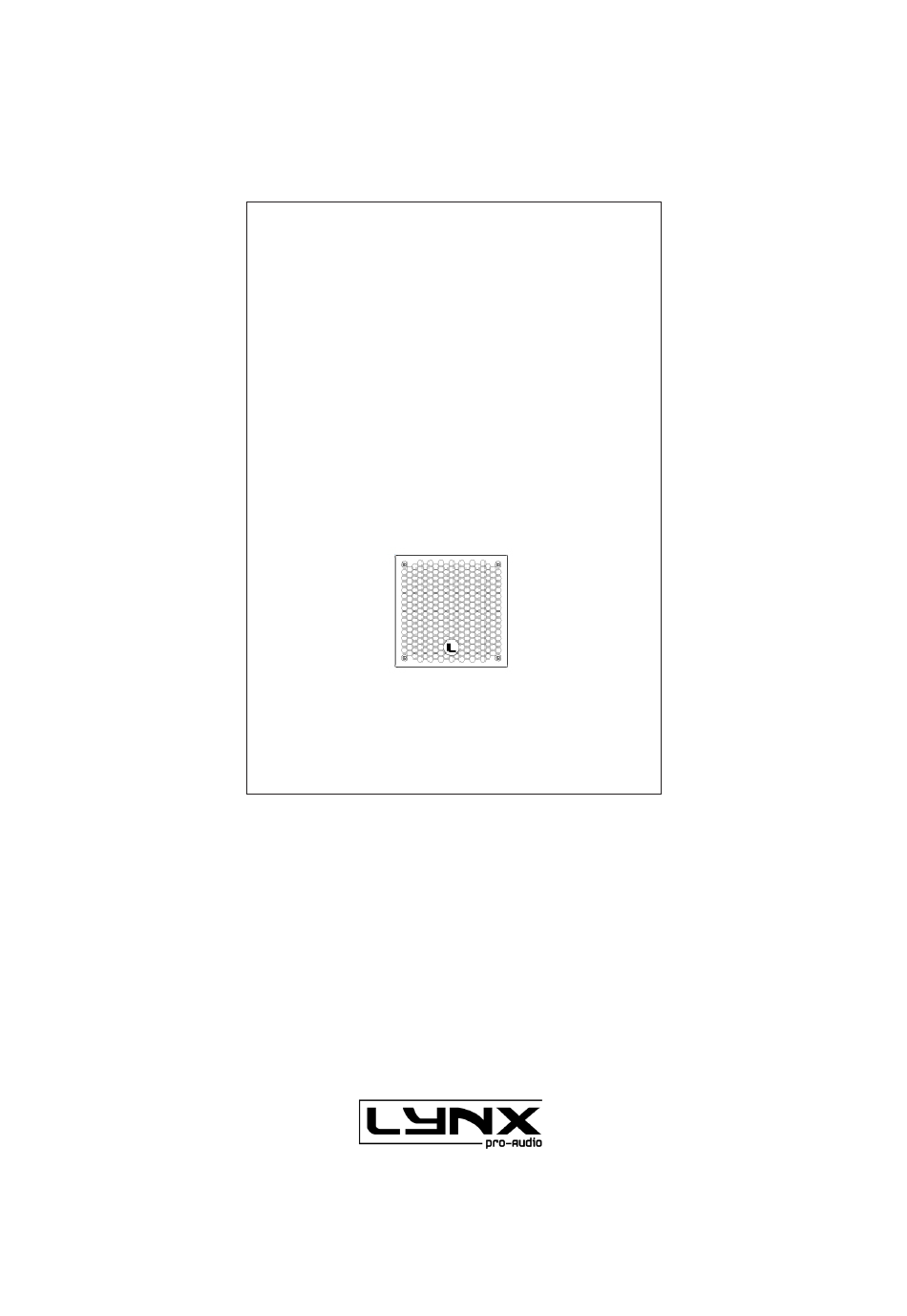

  • Page 1 Ionic series USER MANUAL IONIC-5CXv Lynx Pro Audio S.L. Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com V.21.04...
  • Page 2 LYNX Pro Audio S.L. Calle 1 - Pol. Ind. Picassent E-46220 Picassent (Valencia) CE CERTIFICACTION, EUROPEAN PRODUCT This user guide is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited. Copyright 2020. All rights reserved.

  • Page 3: Table Of Contents

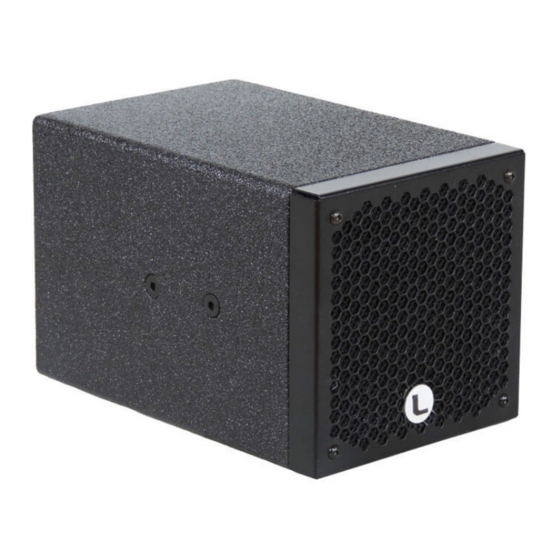

    This manual describes the recommended installation procedure for the Ionic-5CX. The Ionic-5CXv is a passive coaxial speaker for outdoor use and part of the Ionic series. The Ionic cabinets are compact, modular and powerful and the complete series also includes two sub units and two column models.

  • Page 4: Safety Precautions

    “Rainbow” software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual. Use Only flying accessories provided by Lynx Pro Audio S.L. Rigging must be always carried out by professionals. • Delicate Material Please ensure no foreign object or water enters the speaker.

  • Page 5: System Overview

    Out: Cable gland Finish: Polyurea coating Material: 10 mm premium birch plywood Dimensions: 140 x 140 x 220 mm (H x W x D) Weight: 3 Kg (6.6 lbs) Ionic-5CXv measurements Ionic-5CXv back panel • • Lynx Pro Audio S.L www.lynxproaudio.com...

  • Page 6: Connectors And Connections

    (Euroblock 1 on the right, Euroblock 2 on the left). negative. On the Euroblock 1, you have to connect the black cable to the negative connection and the red cable to the power you want to use: 100W, 75W or 50W. Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 7 Never connect more cabinets than recommended in parallel. With parallel connections, the total impedance can be calculated by dividing the impedance of 1 cabinet by the number connected. Lynx Pro Audio S.L www.lynxproaudio.com...

  • Page 8: Amplification

    LCD display & Signal Output digital control USB connection * Ethernet OPTIONAL Output power Main input Main link speakon +1/-1 * Available when the user has requested the cabinets to be supplied with the Ethernet Module kit. Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 9 Ionic Series User Manual CONNECTORS AND CONNECTIONS • Signal and connectors for Ionic powered subwoofers SOCKET POWERCON TRUE1 INPUTS XLR SOCKET CONNECTORS 1.- EARTH 2.- LIVE (+) 3.- LIVE (-) Lynx Pro Audio S.L www.lynxproaudio.com...

  • Page 10: Configuring The Digital Signal Processor

    PRESET 1 has the manufacturer’s EQ again. Note: You must apply the desired configuration in each ionic subwoofer cabinet. Just select on the screen the cabinet ionic-5CX with the preset configuration desired. This operation requires electrical power to work. Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 11 OK (3) until the progress bar finishes (Fig 3). The display will indicate “Loading DSP” (Fig 4) Fig 2 Fig 3 Fig 4 Note: In case of a power cut, the DSP will save its last configuration when restarted. Lynx Pro Audio S.L www.lynxproaudio.com...

  • Page 12: Online Control System

    User Manual ONLINE CONTROL SYSTEM • Who is it for? Users of Self powered DSP incorporated Lynx Pro Audio Cabinets where the user has requested the cabinets be supplied with the Ethernet Module kit. • What is it for? Obtain detailed information of cabinet behaviour and monitor the cabinet/s in real time. You can change the preset, gain, mute, polarity and phase.

  • Page 13: Rainbow 3D Acoustic Simulation Software

    • Multiple listening zones The program can simulate all Lynx Pro Audio’s acoustic enclosures located in a 3D space, including the classic side, top and front views. It can also define multiple listening zones and allows offset positioning and symmetry.

  • Page 14: Hardware And Accessories

    Ionic Series User Manual HARDWARE AND ACCESSORIES The Ionic cabinets offer a variety of practical accessories to help use the system in a number of applications. UBR-5CX Wall bracket for the Ionic-5CX Lynx Pro Audio S.L www.lynxproaudio.com...

  • Page 15: Certifications And Guarantee

    Calle 1 - Pol. Ind. Picassent 46220 Picassent (Valencia) SPAIN - EU Tel.: (+34) 961 10 96 01 www.lynxproaudio.com Lynx Pro Audio S.L. declares that ionic series are in conformity with the following EC directives: Low Voltage Directive 2006/95/EC Electromagnetic Compatibility EMC 2004/108/EC...
  • Page 16 Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L. would supply all the necessary parts.
