CPS series
USER MANUAL
CPS-214
CPS-18S
Lynx Pro Audio S.L.
Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com
V.23.06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPS Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Lynx CPS Series

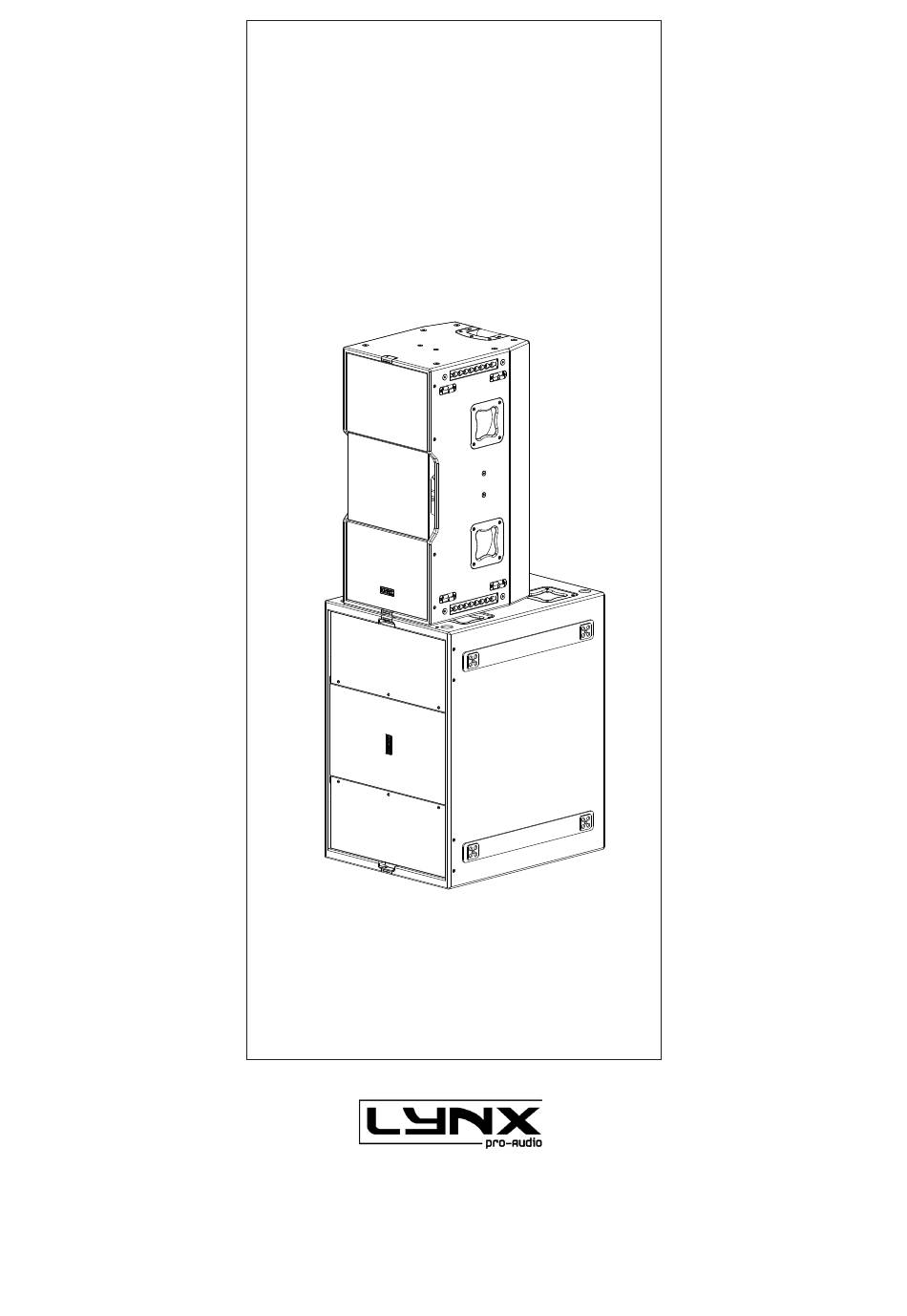

  • Page 1 CPS series USER MANUAL CPS-214 CPS-18S Lynx Pro Audio S.L. Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com V.23.06...
  • Page 2 LYNX Pro Audio S.L. Calle 1 - Pol. Ind. Picassent E-46220 Picassent (Valencia) CE CERTIFICACTION, EUROPEAN PRODUCT This user guide is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited. Copyright 2020. All rights reserved.
  • Page 3: Table Of Contents

    • HOW TO USE THE TRANSPORT DOLLY • HOW TO USE THE UBRACKET FOR HORIZONTAL MOUNTING • HOW TO USE THE UBRACKET FOR VERTICAL MOUNTING • APPLICATION EXAMPLES FOR CPS-214 AND CPS-18S • CERTIFICATIONS AND GUARANTEE Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 4: Safety Precautions

    When flying this system please observe the technical and “Rainbow” software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual. Use Only flying accessories provided by Lynx Pro Audio S.L. Rigging must be always carried out by professionals. • Delicate Material Please ensure no foreign object or water enters the speaker.

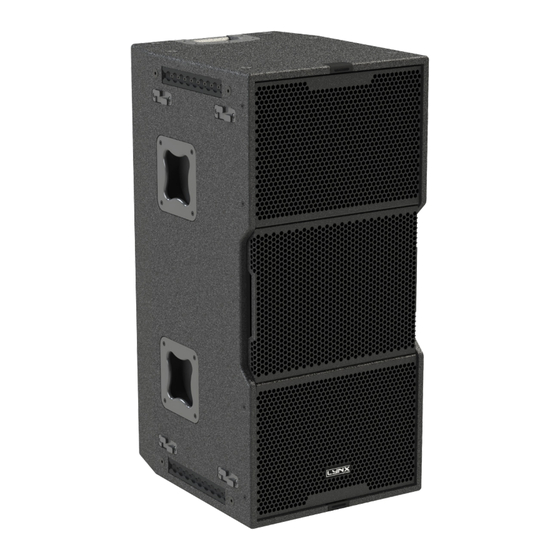

  • Page 5: System Overview

    16A Neutrik powerCON TRUE1 TOP with looping output Finish: Polyurea coating, high grade resistant paint Material: 18 mm Premium birch plywood Dimensions: 900 x 420 x 515 mm (H x W x D) Weight: 49 Kg (108 lbs) • CPS-214 measurements Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 6: Cps-18S

    16A Neutrik powerCON TRUE1 TOP with looping output Finish: Polyurea coating, high grade resistant paint Material: 15 mm Premium birch plywood Dimensions: 600 x 900 x 750 mm (H x W x D) Weight: 62 Kg (136.6 lbs) CPS-18S measurements • Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 7: Back Panel

    CPS Series User Manual CPS BACK PANEL panel CPS-214 back panel: IPS display & digital control Multifunction joystick control digital INPUT Main input Main Link digital Through analog analog connection Ethernet Through INPUT Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 8 CPS Series User Manual CPS BACK PANEL panel CPS-18S back panel: Main input Main Link IPS display & digital control digital INPUT Multifunction joystick control digital Through analog analog connection Ethernet Through INPUT Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 9: Connectors And Connections

    AC Power c onnect ors under load. NAC3FX-W NAC3MX-W XLR SOCKET CONNECTORS XLR AEREAL CONNECTORS INPUTS 1.- EARTH 2.- LIVE (+) 3.- LIVE (-) OUTPUTS 1.- EARTH 2.- LIVE (+) 3.- LIVE (-) Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 10: Configuring The Digital Signal Processor

    On the second screen you can modify some parameters. • Gain • Mute • Polarity • Delay • High Pass Filter: You can setup a High Pass filter selecting type, frequency and order. Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 11 The last screen shows you some general information regarding the cabinet’s components. Here you can see the cabinet model, its serial number, DSP firmware and hardware versions, amp module model with hardware version, as well as the accelerometer status. Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 12: Online Control System

    User Manual ONLINE CONTROL SYSTEM • Who is it for? Users of Self powered DSP incorporated Lynx Pro Audio Cabinets where the user has requested the cabinets be supplied with the Ethernet Module kit. • What is it for? Obtain detailed information of cabinet behaviour and monitor the cabinet/s in real time. You can change the preset, gain, mute, polarity and phase.
  • Page 13: Rainbow 3D Acoustic Simulation Software

    Additionally, the export of FIR coefficients can be performed with the optimization for later loading in the DSP via Ethernet or a USB device. In the near future direct communication with Lynx Pro Audio and OCS will be available.
  • Page 14: Hardware And Accessories

    Flying frame for CPS-214 Rain cover for the back panel of the CPS-214 or CPS-18S FD-CPS214 Nylon protection for CPS- AGR-10 Eye bolt for CPS-214 FD-CPS18S Nylon protection for CPS- SC-FC1 Lightweight install stud for CPS-214 Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 15: Cabinet Installation

    • To rotate the horn the user must first remove • Then, unscrew the screws that are holding the the central cabinet grill, pulling it out. It is speaker. attached with magnets. Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 16 Make sure that the horn fits correctly. Make sure it is correctly fixed. • Place the cabinet grill back into the former position. Make sure that the cabinet grill is properly fixed with the magnets. Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 17: How To Use The Flying Frame Sv-Cps

    Then, place the flying frame in order that the holes in the corners match with the holes of the screws that have been removed from the cabinet (Figure B). Use the screws given with support kit to fix the frame (Figure C). Once the frame is secure, it can be hooked up for its installation (Figure D). Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 18 Figure C. NOTE: The start position will be 0 degrees. The angulation can open up to 12 degrees. Each point will add 3 degrees of angulation. Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 19 NOTE: Each hole has a degree position, as shown in the picture above. Make sure to insert the screws in the right holes to obtein the desired angulation. • Finally, you can hook the flying bracket to the engine in the desired position. Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 20: How To Use The Transport Dolly

    HOW TO USE THE TRANSPORT DOLLY Transport dolly for CPS-214: • • CPS-214 on a dolly with squid wheels for easy transport. Squid wheels • Remove latches from above and take off the dolly. Latches Latches Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 21 CPS Series User Manual HOW TO USE THE TRANSPORT DOLLY Transport dolly for CPS-18S: • Squid wheels • Lay the cabinet carefully, remove latches and take off the dolly. Latches Latches Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 22: How To Use The Ubracket For Horizontal Mounting

    U BRACKET: HORIZONTAL MOUNTING UBR-HCPS214 is the horizontal mounting system specially designed for Lynx Pro Audio CPS-214 cabinets. It is composed by the U type support made of steel and 4 special fixing screws (2 per side) in order to fix the cabinet to the U support.
  • Page 23 Now that everything is clear we can start with the instalacion of the cabinet. We recommend the use of the Position 1 or Position 2, and this is how to proceed: Position 1 Position 2 Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 24 12 mm free so you can guide the enclosure carefully to achieve the correct coverage. When the cabinet is in the desired position then tighten the four screws (2 per side) and the cabinet will be correctly installed. Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 25: How To Use The Ubracket For Vertical Mounting

    U BRACKET: VERTICAL MOUNTING UBR-VCPS214 is the vertical mounting system specially designed for Lynx Pro Audio CPS-214 cabinets. It is composed by the U type support made of steel and 4 special fixing screws (2 per side) in order to fix the cabinet to the U support.
  • Page 26 UPPER HOLE for Position 2, of each side (left/right), but don’t insert it completly. Just keep 12 mm out of the insert. These screws will help you to hook up the cabinet from the UBR support in order to start with the cabinet installation. Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 27 When the cabinet is in the desired position then tighten the four screws (2 per side) and the cabinet will be correctly installed. Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 28: Application Examples For Cps-214 And Cps-18S

    APPLICATION EXAMPLES FOR CPS-214 AND CPS-18S • Combination: 1 CPS-214 vertically mounted on top + 1 CPS-18S subwoofer in vertical position • Combination: 2 CPS-18S subwoofers stacked in horizontal + 1 CPS-214 on top in horizontal position Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 29 CPS Series User Manual APPLICATION EXAMPLES FOR CPS-214 AND CPS-18S • Combination: 2 CPS-18S subwoofers stacked in horizontal + 1 CPS-214 on top in vertical position Lynx Pro Audio S.L www.lynxproaudio.com...
  • Page 30: Certifications And Guarantee

    Calle 1 - Pol. Ind. Picassent 46220 Picassent (Valencia) SPAIN - EU Tel.: (+34) 961 10 96 01 www.lynxproaudio.com Lynx Pro Audio S.L. declares that CLS series are in conformity with the following EC directives: Low Voltage Directive 2014/35/UE Electromagnetic Compatibility EMC 2014/30/UE...
  • Page 31 Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L. would supply all the necessary parts.
