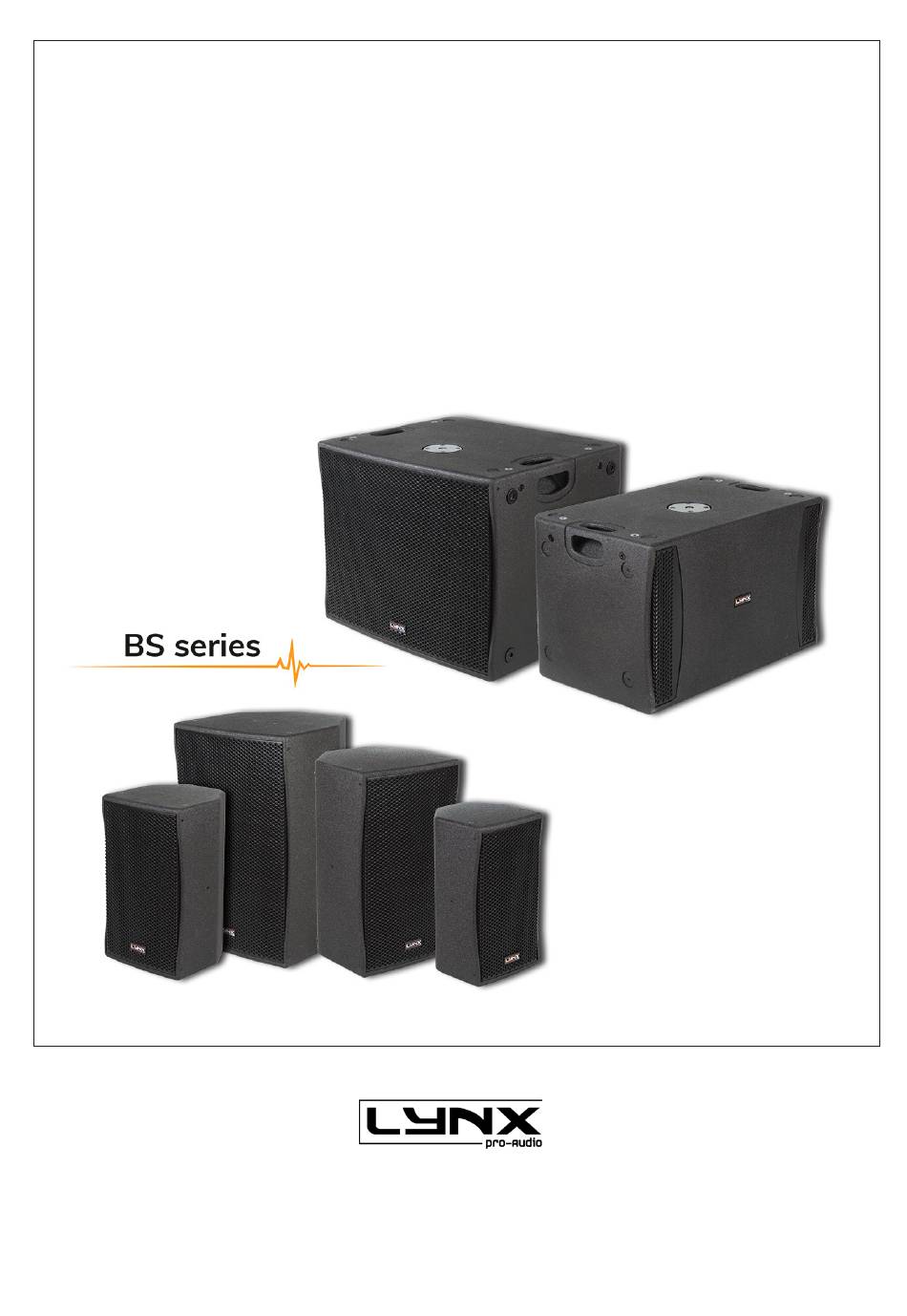

- Page 1 BS series USER MANUAL BS-8 Bs-10 BS-12 BS-15 BS-112 BS-118 Lynx Pro Audio S.L. Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com V.21.04...
- Page 2 LYNX Pro Audio S.L. Calle 1 - Pol. Ind. Picassent E-46220 Picassent (Valencia) CE CERTIFICACTION, EUROPEAN PRODUCT This user guide is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited. Copyright 2020. All rights reserved.
-
Page 3: Table Of Contents

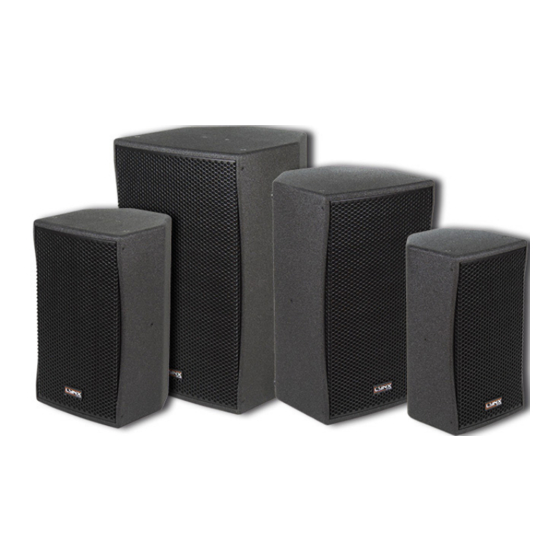

Please observe the technical data carefully and do not ignore the instructions included within this manual. The BS series has been designed to offer an affordable yet reliable series of cabinets which not only deliver high performance but have a sleek & attractive design and finish so that they not only sound great but also look impressive in any install. - Page 4 “Rainbow” software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual. Use Only flying accessories provided by Lynx Pro Audio S.L. Rigging must be always carried out by professionals. • Delicate Material Please ensure no foreign object or water enters the speaker.
- Page 5 12 Kg (26.4 lbs) Fittings: 5 x M8, single pole-mount, ergonomic handle on the back position Accessories: U bracket horizontal & vertical, M8 eyebolts, wall bracket, M20 pole Enclosure type: Multiangle enclosure BS-8 measurements • Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 6 14 Kg (30.8 lbs) Fittings: 5 x M8, single pole-mount, ergonomic handle on the back position Accessories: U bracket horizontal & vertical, M8 eyebolts, wall bracket, M20 pole Enclosure type: Multiangle enclosure • BS-10 measurements Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 7 19 Kg (41.8 lbs) Fittings: 5 x M8, double pole-mount with 10º angle, ergonomic handle on the back position Accessories: U bracket horizontal & vertical, M8 eyebolts, wall bracket, M20 pole Enclosure type: Multiangle enclosure • BS-12 measurements Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 8 24 Kg (52.9 lbs) Fittings: 5 x M8, double pole-mount with 10º angle, ergonomic handle on the back position Accessories: U bracket horizontal & vertical, M8 eyebolts, wall bracket, M20 pole Enclosure type: Multiangle enclosure BS-15 measurements • Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 9 406 x 655 x 400 mm (H x W x D) Weight: 29 Kg (63.9 lbs) Fittings: 2 integrated ergonomic handles, 4 rubber feets right side for vertical install, M-10 fly points Accessories: M-20 connector pole, M-10 eyebolt Enclosure type: Multiangle enclosure BS-112 measurements • Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 10 33 Kg (52.9 lbs) Fittings: 2 integrated ergonomic handles, 4 rubber feets right side for vertical install, M-10 fly points Accessories: M-20 connector pole, M-10 eyebolt Enclosure type: Bass reflex direct radiation subwoofer BS-118 measurements • Lynx Pro Audio S.L www.lynxproaudio.com...
-
Page 11: Connectors And Connections
± 1 input / link 8 ohms 400 W AES 800 W BS-112 ± 1 input / link 8 ohms 500 W AES 1000 W BS-118 ± 1 input / link 8 ohms 600 W AES 1200 W Lynx Pro Audio S.L www.lynxproaudio.com... - Page 12 Never connect more cabinets than recommended in parallel. With parallel connections, the total impedance can be calculated by dividing the impedance of 1 cabinet by the number connected. Lynx Pro Audio S.L www.lynxproaudio.com...
-
Page 13: Cabinet Connections
To turn on the horn the user must first remove the cabinet grill, unscrew the horn, rotate it 90º and screw it back in. Be sure to maintain the connection and put the grill back on. Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 14: Hardware And Accessories
Lightweight aluminium stand combination between sub for the BS-8, BS-10, BS-12 and satellite cabinet and BS-15 UBR-BS8/10/12/15 WB-20 U bracket for the BS-8, BS-10, Wall bracket for the BS-8, BS-12 and BS-15 BS-10, BS-12 and BS-15 Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 15: How To Use Accessories For Installation
UBR (U bracket): UBR is the horizontal mounting system specially designed for Lynx Pro Audio cabinets. It is composed by the U type support made of steel and 4 special fixing screws (2 per side) in order to fix the cabinet to the U support. - Page 16 UBR support, using the longer screws provided with the support kit. If your Lynx Pro Audio cabinet is equipped with a pole mount support then just remove 2 screws of the pole mount support (only 2) and use these holes to fix the UBR support.
- Page 17 Do not fix them completely at the moment just keep 5 mm free so you can guide the enclosure carefully to achieve the correct coverage. When the cabinet is in the desired position then tighten the four screws (2 per side) and the cabinet will be correctly installed. Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 18 5 mm free so you can guide the enclosure carefully to achieve the correct coverage. When the cabinet is in the desired position then tighten the four screws (2 per side) and the cabinet will be correctly installed. Lynx Pro Audio S.L www.lynxproaudio.com...
-
Page 19: Rainbow 3D Acoustic Simulation Software
• Multiple listening zones The program can simulate all Lynx Pro Audio’s acoustic enclosures located in a 3D space, including the classic side, top and front views. It can also define multiple listening zones and allows offset positioning and symmetry. -
Page 20: Certifications And Guarantee
Calle 1 - Pol. Ind. Picassent 46220 Picassent (Valencia) SPAIN - EU Tel.: (+34) 961 10 96 01 www.lynxproaudio.com Lynx Pro Audio S.L. declares that ionic series are in conformity with the following EC directives: Low Voltage Directive 2006/95/EC Electromagnetic Compatibility EMC 2004/108/EC... - Page 21 Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L. would supply all the necessary parts.
