- Page 1 HR Series USER MANUAL HR-6 HR-108 HR-1564/7 & HR-1596/7 HR-1264/7 & HR-1296/7 HR-1564/5 & HR-1596/5 HR-1264/5 & HR-1296/5 HR-208 HR-206 HR-218/36 HR-218/20 HR-215S HR-18/10 Lynx Pro Audio S.L. Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com V.24.05...
- Page 2 LYNX Pro Audio S.L. Calle 1 - Pol. Ind. Picassent E-46220 Picassent (Valencia) CE CERTIFICACTION, EUROPEAN PRODUCT This user guide is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited. Copyright 2020. All rights reserved.
-
Page 3: Table Of Contents
HR Series User Manual CONTENTS • SAFETY PRECAUTIONS • CABINET CONNECTIONS Normative Connectors Recommendations • CABINET INSTALLATION Coverage change with the rotatable horn Mode passive or bi-amp Mounting advices Installation accessories • HOW TO USE ACCESSORIES FOR INSTALLATION • RAINBOW 3D ACOUSTIC SIMULATION SOFTWARE • EACH MODEL TECHNICAL DATA • CERTIFICATIONS AND GUARANTEE Lynx Pro Audio S.L www.lynxproaudio.com... - Page 4 • Delicate Material Please ensure no foreign object or water enters the speaker. Only clean the unit with dry cloths. Do not use solvents. • Overheating / Fire risk To reduce the risk of the speaker over heating, avoid direct contact with sunlight. Avoid placing the unit close to heat inducing objects such as radiators. Do not cover the equipment in use and do not block any ventilation openings. Do not put naked flame, such as lighted candles, close or on top of the unit. • Electromagnetic and interferente emissions Avoid placing objects which through electromagnetic waves can damage the unit, such as mobile phones, lap tops, magnetic strip cards etc. This system complies with normatives EN 55103-1 (1) EN 55103-2 (2) (1) This device may not cause harmful interferences. (2) This device may receive interference including interferences that may cause undesired working. •IMPORTANT NOTE This Equipment must be used in accordance with these instructions and by trained professional personnel only. This equipment should not be used in places with extreme tropical climates. Don’t expose this apparatus to extreme humidity and or temperature values. Lynx Pro Audio S.L www.lynxproaudio.com...
-
Page 5: Cabinet Connections
NL4MP LF ±1 / HF ±2 8 Ω 500 W / 60 W 1000 W / 120 W HR-1596/5 NL4MP LF ±1 / HF ±2 8 Ω 500 W / 60 W 1000 W / 120 W HR-1264/5 NL4MP LF ±1 / HF ±2 8 Ω 500 W / 60 W 1000 W / 120 W HR-1296/5 NL4MP LF ±1 / HF ±2 8 Ω 500 W / 60 W 1000 W / 120 W HR-208 NL4MP LF ±1 / HF ±2 4 Ω 500 W/ 70 W 1000 W / 140 W HR-206 NL4MP LF ±1 / HF ±2 8/4 Ω 400 W / 70 W 800 W / 140 W Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 6: Recommendations
8 Ω 16 Ω 13.3 mm² 0.25 Ω 6.63 mm² 0.49 Ω 5.26 mm² 0.62 Ω 3.31 mm² 0.99 Ω 2.08 mm² 1.57 Ω 1.31 mm² 2.49 Ω 0.82 mm² 3.98 Ω 0.52 mm² 6.28 Ω 0.33 mm² 9.89 Ω As a guide, please see the following table which outlines the thickness depending on the power and length of cable. Bear in mind Ohm ratings on the amplifiers used to power the cabinets. For example, 2 ohm amplifier configurations are not recommended due to the excessive power from the amp output. Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 7: Coverage Change With The Rotatable Horn
Change the cable from one plug to the other and screw the connector pannel again. That’s all. You will have the cabinet ready in bi-amp mode, with pin ± 1 connected to Low Frequencies and pin ± 2 connected to High Frequencies. NOTE: The bi-amp mode works without the internal crossover so without its protection for the speakers. Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 8: Mounting Advices
The HR cabinets are designed to be used in installations and the full range cabinets come with rigging points so that they can be easily installed. To fix the cabinets to a wall or to hold them from the ceiling is very easy using some simple accessories: AGR -10 AGR-6 M10 eye bolt for HR-108, M6 eye bolt for HR-6 and HR -208, HR -206, HR-1264, HR-204 HR-1296, HR -1564 and HR... -
Page 9: How To Use Accessories For Installation
HOW TO USE ACCESSORIES FOR INSTALLATION • UBR (U bracket): UBR is the horizontal mounting system specially designed for Lynx Pro Audio cabinets. It is composed by the U type support made of steel and 4 special fixing screws (2 per side) in order to fix the cabinet to the U support. Cabinet front grill Back of the cabinet • How to use it? Before starting with the installation please note that the UBR bracket offers three different options and you have to select one of them before installing the support. Simply check the following drawings and select the best option in order to achieve the coverage required. Position 1 Position 2 Position 3 The angles show the different variations available (from A to B) in order to fix the center of the cabinet (front grill). Please pay special attention to the optimal positioning of your cabinet. Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 10: Rainbow 3D Acoustic Simulation Software
Allows the acoustic simulation for an unlimited number of sound sources and audio systems. You can place as many systems (subwoofers, line arrays, columns and individual boxes) as you desire. Also, the line arrays can be placed in stack or flown configuration. • Beam steering Rainbow 3D has the ability to add DSP processing to the simulation and uses algorithms to control the directivity (beam steering) in columns, without the need to tilt them physically, being able to divide the column into several beams that point to different zones. • Accurate optimization thanks to FIR filters Optimized algorithms are used in the listening area to improve the sound coverage and the frequency response. This feature can be executed in a matter of seconds. Additionally, the export of FIR coefficients can be performed with the optimization for later loading in the DSP via Ethernet or a USB device. In the near future direct communication with Lynx Pro Audio and OCS will be available. • Multiple measures and tools Likewise, the R&D department is developing multiple measurement and analysis tools for the calculated data. For example, the sound pressure curves (SPL) in the listening areas and the capture of virtual measurements that show the frequency response in the points of location indicated and added. Among other tools you will find autosplay and a wizard to set up different subwoofer arragements. Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 11: Each Model Technical Data
Coverage angle: 90º H x 90 º V Power: 200 W (400 W program, 800 W peak) Crossover: Passive Nominal impedance: 16 Ω Connectors: 2 x Neutrik Speakon NL4MP / 4 x Terminal Block 7.62 mm between pins Finish: Polyurea coating - other colours (RAL) available Material: 15 mm premium birch plywood Dimensions: 300 x 236 x 220 mm (H x W x D) Weight: 7.5 Kg (17 lbs) • Key features • Perfectly suited for • Ultra-compact • Club & bar installations • Versatile sound reinforcement • Sound reinforcement • High performance • Theatres • 90º x 90º wide dispersion • Houses of worship • ARK processor optimised preset • Multi media spaces • Multiple rigging / mounting options • Public address Lynx Pro Audio S.L www.lynxproaudio.com... - Page 12 5. 35 ppi Acoustic foam to protect against dust particles. 6. Waterproof protected cone on both sides 7. Aluminum back plate with pressure gland for an extra tight connection and easy installation. 8. M10 stainless steel 316 L screws (A4). Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 13 Coverage angle: 90º x 90 º rotatable Power: 300 W (600 W program, 1200 W peak) Crossover: Passive Nominal impedance: 8 Ω Connectors: 2 x Neutrik Speakon NL4MP / 4 x Terminal Block 7.62 mm between pins Finish: Polyurea coating - other colours (RAL) available Material: 15 mm premium birch plywood Dimensions: 420 x 274 x 298 mm (H x W x D) Weight: 10 Kg ( 22 lbs) • Key features • Perfectly suited for • Ultra-compact • Club & bar installations • Versatile sound reinforcement • Sound reinforcement • High performance • Theatres • 90º x 90º wide dispersion • Houses of worship • ARK processor optimised preset • Multi media spaces • Multiple rigging / mounting options • Public address Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 14 5. 35 ppi Acoustic foam to protect against dust particles. 6. Waterproof protected cone on both sides 7. Aluminum back plate with pressure gland for an extra tight connection and easy installation. 8. M10 stainless steel 316 L screws (A4). Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 15 Power: Passive mode: 700 W (1400 W program, 2800 W peak) Bi- Amp LF: 700 W (1400 W program, 2800 W peak) Bi-Amp HF: 80 W (160 W program, 320W peak) Crossover: Bi-amp / Passive (selectable) Nominal impedance: 8 Ω Passive / Bi-amp LF 8 Ω, HF 8 Ω Connectors: 2 x Neutrik Speakon NL4MP Finish: Polyurea coating - other colours (RAL) available Material: 15 mm premium birch plywood Dimensions: 790 x 444.5 x 541 mm (H x W x D) Weight: 32 Kg (70.5 lbs) • Perfectly suited for • Key features • Versatile sound reinforcement • Club & bar installations • High performance • Sound reinforcement • Coverage 60ºx40º or 90ºx60º, rotatable horns • Theatres • ARK processor optimised preset • Houses of worship • Conferences • Precisse band pass directivity control • Public address • Multiple rigging and mounting options Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 16 5. 35 ppi Acoustic foam to protect against dust particles. 6. Waterproof protected cone on both sides 7. Aluminum back plate with pressure gland for an extra tight connection and easy installation. 8. M10 stainless steel 316 L screws (A4). Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 17 Power: Passive mode: 500 W (1000 W program, 2000 W peak) Bi- Amp LF: 500 W (1000 W program, 2000 W peak) Bi-Amp HF: 60 W (120 W program, 240W peak) Crossover: Bi-amp / Passive (selectable) Nominal impedance: 8 Ω Passive / Bi-amp LF 8 Ω, HF 8 Ω Connectors: 2 x Neutrik Speakon NL4MP Finish: Polyurea coating - other colours (RAL) available Material: 15 mm premium birch plywood Dimensions: 790 x 444.5 x 541 mm (H x W x D) Weight: 30 Kg (66 lbs) • Perfectly suited for • Key features • Versatile sound reinforcement • Club & bar installations • High performance • Sound reinforcement • Coverage 60ºx40º or 90ºx60º, rotatable horns • Theatres • ARK processor optimised preset • Houses of worship • Conferences • Precisse band pass directivity control • Public address • Multiple rigging and mounting options Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 18 5. 35 ppi Acoustic foam to protect against dust particles. 6. Waterproof protected cone on both sides 7. Aluminum back plate with pressure gland for an extra tight connection and easy installation. 8. M10 stainless steel 316 L screws (A4). Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 19 Power: Passive mode: 700 W (1400 W program, 2800 W peak) Bi- Amp LF: 700 W (1400 W program, 2800 W peak) Bi-Amp HF: 80 W (160 W program, 320W peak) Crossover: Bi-amp / Passive (selectable) Nominal impedance: 8 Ω Passive / Bi-amp LF 8 Ω, HF 8 Ω Connectors: 2 x Neutrik Speakon NL4MP Finish: Polyurea coating - other colours (RAL) available Material: 15 mm premium birch plywood Dimensions: 705 x 377 x 495 mm (H x W x D) Weight: 26 Kg (57 lbs) • Perfectly suited for • Key features • Versatile sound reinforcement • Club & bar installations • High performance • Sound reinforcement • Coverage 60ºx40º or 90ºx60º, rotatable horns • Theatres • ARK processor optimised preset • Houses of worship • Conferences • Precisse band pass directivity control • Public address • Multiple rigging and mounting options Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 20 5. 35 ppi Acoustic foam to protect against dust particles. 6. Waterproof protected cone on both sides 7. Aluminum back plate with pressure gland for an extra tight connection and easy installation. 8. M10 stainless steel 316 L screws (A4). Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 21 Power: Passive mode: 500 W (1000 W program, 2000 W peak) Bi- Amp LF: 500 W (1000 W program, 2000 W peak) Bi-Amp HF: 60 W (120 W program, 240W peak) Crossover: Bi-amp / Passive (selectable) Nominal impedance: 8 Ω Passive / Bi-amp LF 8 Ω, HF 8 Ω Connectors: 2 x Neutrik Speakon NL4MP Finish: Polyurea coating - other colours (RAL) available Material: 15 mm premium birch plywood Dimensions: 705 x 377 x 495 mm (H x W x D) Weight: 25 Kg (55 lbs) • Perfectly suited for • Key features • Versatile sound reinforcement • Club & bar installations • High performance • Sound reinforcement • Coverage 60ºx40º or 90ºx60º, rotatable horns • Theatres • ARK processor optimised preset • Houses of worship • Conferences • Precisse band pass directivity control • Public address • Multiple rigging and mounting options Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 22 5. 35 ppi Acoustic foam to protect against dust particles. 6. Waterproof protected cone on both sides 7. Aluminum back plate with pressure gland for an extra tight connection and easy installation. 8. M10 stainless steel 316 L screws (A4). Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 23 Power: Passive mode: 400 W (800 W program, 1600 W peak) Bi- Amp LF: 400 W (800 W program, 1600 W peak) Bi-Amp HF: 70 W (140 W program, 280W peak) Crossover: Bi-amp / Passive (selectable) Nominal impedance: 8 Ω – also available in 4 Ω Connectors: 2 x Neutrik Speakon NL4MP Finish: Polyurea coating, black colour Material: 15 mm premium birch plywood Dimensions: 249 x 568 x 252 mm (H x W x D) Weight: 15 Kg (33 lbs) • Perfectly suited for • Key features • Ultra-compact light weight • Club & bar installations • Versatile sound reinforcement • Sound reinforcement • High performance • Theatres • 80º x 60º wide dispersion • Houses of worship • Multi media spaces • ARK processor optimised preset • Public address • Multiple rigging / mounting options Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 24 5. 35 ppi Acoustic foam to protect against dust particles. 6. Waterproof protected cone on both sides 7. Aluminum back plate with pressure gland for an extra tight connection and easy installation. 8. M10 stainless steel 316 L screws (A4). Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 25 Bi- Amp LF: 500 W (1000 W program, 2000 W peak) Bi-Amp HF: 70 W (140 W program, 280W peak) Crossover: Bi-amp / Passive (selectable) Nominal impedance: 4 Ω Passive / Biamp LF 4 Ω, HF 8 Ω Connectors: 2 x Neutrik Speakon NL4MP Finish: Polyurea coating, black colour Material: 15 mm premium birch plywood Dimensions: 665 x 279 x 298 mm (H x W x D) Weight: 17 Kg (37 lbs) Fittings: 11 x M10 points • Perfectly suited for • Key features • Ultra-compact light weight • Club & bar installations • Versatile sound reinforcement • Sound reinforcement • High performance • Theatres • 90º x 60º wide dispersion • Houses of worship • Multi media spaces • ARK processor optimised preset • Public address • Multiple rigging / mounting options Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 26 5. 35 ppi Acoustic foam to protect against dust particles. 6. Waterproof protected cone on both sides 7. Aluminum back plate with pressure gland for an extra tight connection and easy installation. 8. M10 stainless steel 316 L screws (A4). Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 27 Max SPL / Peak: 139 dB – 145 dB Peak Coverage angle: Omnidirectional Power: 3600 W (7200 W program, 14400 W peak) Crossover: Active Nominal impedance: 4 Ω Connectors: 2 x Neutrik Speakon NL4MP Finish: Polyurea coating - other colours (RAL) available Material: 18 mm premium birch plywood Dimensions: 585 x 1080 x 781 mm (H x W x D) Weight: 82 Kg (180 lbs) • Perfectly suited for • Key features • Club & bar installations • Incredible size to power ratio • Live sound • Versatile sound reinforcement • High performance 3600 W • Theatres • ARK processor optimised preset • Houses of worship • Multi media spaces • Sound reinforcement Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 28 5. 35 ppi Acoustic foam to protect against dust particles. 6. Waterproof protected cone on both sides 7. Aluminum back plate with pressure gland for an extra tight connection and easy installation. 8. M10 stainless steel 316 L screws (A4). Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 29 Max SPL / Peak: 136 dB – 142 dB Peak Coverage angle: Omnidirectional Power: 2000 W (4000 W program, 8000 W peak) Crossover: Active Nominal impedance: 4 Ω Connectors: 2 x Neutrik Speakon NL4MP Finish: Polyurea coating - other colours (RAL) available Material: 18 mm premium birch plywood Dimensions: 585 x 1080 x 624 mm (H x W x D Weight: 68 Kg (150 lbs) • Perfectly suited for • Key features • Club & bar installations • Incredible size to power ratio • Live sound • Versatile sound reinforcement • High performance 2000 W • Theatres • ARK processor optimised preset • Houses of worship • Multi media spaces • Sound reinforcement Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 30 5. 35 ppi Acoustic foam to protect against dust particles. 6. Waterproof protected cone on both sides 7. Aluminum back plate with pressure gland for an extra tight connection and easy installation. 8. M10 stainless steel 316 L screws (A4). Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 31 Max SPL / Peak: 133 dB – 139 dB Peak Coverage angle: Quasi omnidirectional Power: 2000 W (4000 W program, 8000 W peak) Crossover: Active Nominal impedance: 4 Ω Connectors: 2 x Neutrik Speakon NL4MP Finish: Polyurea coating - other colours (RAL) available Material: 18 mm premium birch plywood Dimensions: 644 x 463 x 600 mm (H x W x D) Weight: 59 Kg (130 lbs) • Perfectly suited for • Key features • Club & bar installations • Ultra compact triple band-pass • Live sound • Versatile sound reinforcement • High performance 1200 W • Theatres • ARK processor optimised preset • Houses of worship • Multi media spaces • Sound reinforcement Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 32 5. 35 ppi Acoustic foam to protect against dust particles. 6. Waterproof protected cone on both sides 7. Aluminum back plate with pressure gland for an extra tight connection and easy installation. 8. M10 stainless steel 316 L screws (A4). Lynx Pro Audio S.L www.lynxproaudio.com...

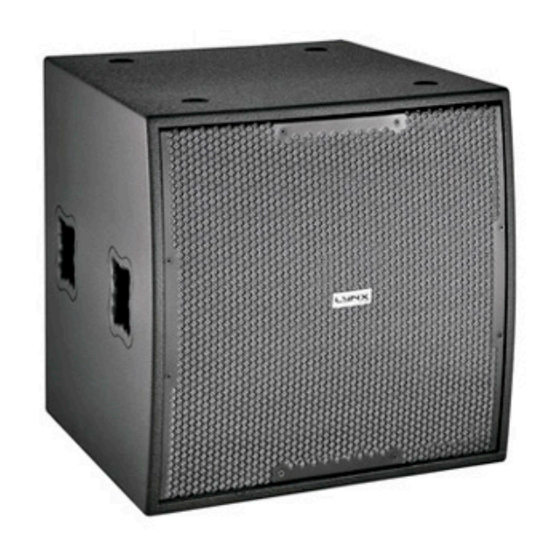

- Page 33 Max SPL / Peak: 129 dB – 135 dB Peak Coverage angle: Omnidirectional Power: 1000 W (2000 W program, 4000 W peak) Crossover: Active Nominal impedance: 8 Ω Connectors: 2 x Neutrik Speakon NL4MP Finish: Polyurea coating - other colours (RAL) available Material: 18 mm premium birch plywood Dimensions: 511 x 505 x 681 mm (H x W x D) Weight: 32 Kg (70.5 lbs) • Perfectly suited for • Key features • Club & bar installations • Incredible size to power ratio • Sound reinforcement • Versatile sound reinforcement • High performance 1000 W • Theatres • ARK processor optimised preset • Houses of worship • Multi media spaces • Public address Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 34 5. 35 ppi Acoustic foam to protect against dust particles. 6. Waterproof protected cone on both sides 7. Aluminum back plate with pressure gland for an extra tight connection and easy installation. 8. M10 stainless steel 316 L screws (A4). Lynx Pro Audio S.L www.lynxproaudio.com...
-
Page 35: Certifications And Guarantee
HR Series User Manual DECLARATION OF CONFORMITY Lynx Pro Audio S.L. Calle 1 - Pol. Ind. Picassent 46220 Picassent (Valencia) SPAIN - EU Tel.: (+34) 961 10 96 01 www.lynxproaudio.com Lynx Pro Audio S.L. declares that HR series are in conformity with the following EC directives: Low Voltage Directive 2014/35/UE Electromagnetic Compatibility EMC 2014/30/UE RoHS Directive 2011/65/UE RAEE (WEEE) 2012/19/UE In accordance with Harmonized European Norms: EN 60065:2014 Audio, video and similar electronic apparatus. Safety requirements... - Page 36 HR Series User Manual LYNX PRO AUDIO GUARANTEE Lynx products are guaranteed against every kind of manufacturing fault 3 year after the date of sale. When products are under guarantee, the repairing and the free supplying of the device parts in order to correct any kind of defect are guaranteed by Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L. would supply all the necessary parts. Lynx Pro Audio S.L. is not responsible for any damage or defect caused during the transport or caused by an undue or improper handling y a non-authorized person during the life of this guarantee. All our products undergo rigorous tests and quality controls. We guarantee the characteristics described here within and their quality against any fabrication defect. The user loses all warranty rights if he incorporates or carries out any modification to the product, if he uses it outside of the stated safe working loads or does not secure the system properly using all the pins in their corresponding holes. For any question regarding the product, the user must quote the model and serial number. WEEE Declaration: Electrical and electronic equipment must be disposed of separately from normal waste at the end of its operational lifetime. Please dispose of this product according to the respective national regulations or contractual agreements. If there are any further questions concerning the disposal of this product please contact Lynx Pro Audio S.L.
