Summary of Contents for Lynx ionic-50
- Page 1 QUICK START GUIDE V.17.12 Lynx Pro Audio S.L. Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com...
- Page 2 LYNX Pro Audio S.L. Calle uno - Pol. Ind. Picassent E-46220 Picassent (Valencia) CE CERTIFICACTION, EUROPEAN PRODUCT This user guide is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited. Copyright 2017. All rights reserved.
-
Page 3: Table Of Contents
- CONFIGURING THE CABINET DSP OPTIONS CONFIGURATION PANEL SELECT THE INPUT DIGITAL / ANALOG SELECT AND RUN PRESET - WALL INSTALATION AND ACCESSORIES - ONLINE CONTROL SYSTEM - CERTIFICATIONS AND GUARANTEE LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... -
Page 4: Safety Precautions
When fl ying this system please observe the technical and “Rainbow” software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual. Use Only fl ying accessories provided by Lynx Pro Audio S.L. Rigging must be always carried out by professionals. -
Page 5: Introduction

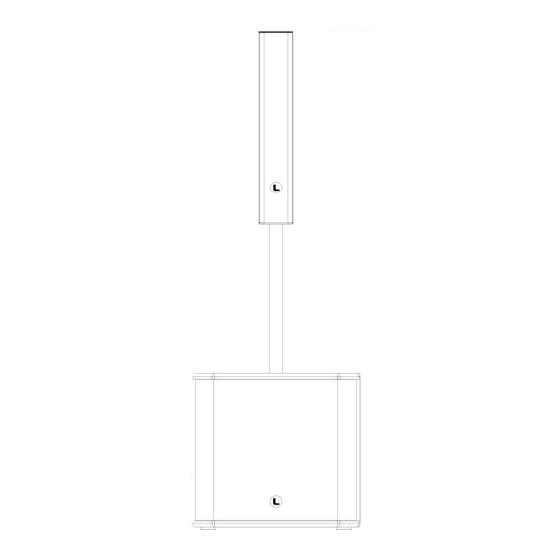

This manual describes the recommended installation procedure for the ionic-50 in combination with the subwoofers ionic-12S. The ionic series is Lynx Pro Audio’s answer to light, portable and permanent column speakers. The ionic series comprise two full-range modular columns (ionic-100 and ionic-50) and two subwoofers (ionic-18S and ionic-12S). - Page 6 15º +/- 5º V x 100º H Weight 4 Kg (10 lbs) Column measurements Column back panel Installation kit fi xing points Input Speakon +1/-1 Loop thru Input Speakon +1/-1 Loop thru Installation kit fi xing points LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
-
Page 7: Subwoofer Ionic-12S
1 x 700 W Dimensions (H x W x D) 407 x 440 x 520 mm Speaker Output 1 x 1700 W @ 8 Ohms Weight 23 Kg (50.6 lbs) Amplifi er LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... -
Page 8: Back Panel
BACK PANEL The ionic-50 columns are powered from the active subwoofers ionic-12S. In the following drawing you can see the back panel of the ionic-12S, which includes the power amplifi cations and the digital signal control board. From the sub unit back panel you can also select various preset confi gurations using the LCD display and digital control buttons. -
Page 9: Connectors And Connections
XLR SOCKET CONNECTORS 2.- LIVE (+) 3.- LIVE (-) XLR AEREAL CONNECTORS CAUTION: Do not connect or disconnect the AC Power co n nec tor s u nd er lo ad . LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... -
Page 10: Acoustic Centre
When two ionic-50 columns have to be used to form one column then the upper column must be placed upside down, so its acoustic centre is in touch with the acoustic centre of the above cabinet. Note that the Lynx round logo indicates which way is up, so you can see when a column is upside down, when you see that the round logo of the cabinet is at the top of the column, and the L is inverted. -
Page 11: Connection Examples
CONNECTION EXAMPLE (mono channel) ionic-50 + ionic-12S ACOUSTIC CENTRE Connect to power input Speakon +1/-1 Connect to power output Speakon +1/-1 LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... - Page 12 CONNECTION EXAMPLE (mono channel) two ionic-50 + one ionic-12S cabinet placed upside down Speakon +1/-1 Connect to ACOUSTIC CENTRE power input Speakon +1/-1 Speakon +1/-1 Connect to power input Connect to power output Speakon +1/-1 LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
- Page 13 CONNECTION EXAMPLE (mono channel) 4 ionic-50 + 1 ionic-12S Connect to power input Connect to Connect to Connect to power input power input power input Connect to power output LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
-
Page 14: Configuration Panel
PRESET 1 to PRESET 2 and then come back to PRESET 1 you will fi nd that the PRESET 1 has the manufacturer’s EQ again. Note: You must apply the desired confi guration in each ionic-18S cabinet and requires electrical power to work. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... -
Page 15: Select The Input Digital / Analog
OK (3) until the progress bar fi nishes (Fig 3). The display will indicate “Loading DSP” (Fig 4) Fig 2 Fig 3 Fig 4 Note: In case of a power cut, the DSP will save its last confi guration when restarted. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... -
Page 16: Wall Instalation And Accessories
Clubs, theatres, museums, houses of worship, public buildings, commercial complex, and intelligible applications ACCESSORIES SV-12S WB-1 SV-IONIC SV-21 sub adaptor for satellite wall bracket steel fl ying frame cabinet connection LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... -
Page 17: Online Control System
ONLINE CONTROL SYSTEM Who is it for? Users of Self powered DSP incorporated Lynx Pro Audio Cabinets where the user has requested the cabinets be supplied with the Ethernet Module kit. What is it for? Obtain detailed information of cabinet behaviour and monitor the cabinet/s in real time. You can change the preset, gain, mute, polarity and phase. -
Page 18: Certifications And Guarantee
Calle 1 - Pol. Ind. Picassent 46220 Picassent (Valencia) SPAIN - EU Tel.: (+34) 961 10 96 01 www.lynxproaudio.com Lynx Pro Audio S.L. declares that ionic series are in conformity with the following EC directives: Low Voltage Directive 2006/95/EC Electromagnetic Compatibility EMC 2004/108/EC... - Page 19 Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L.
