Summary of Contents for Lynx ionic-5CX

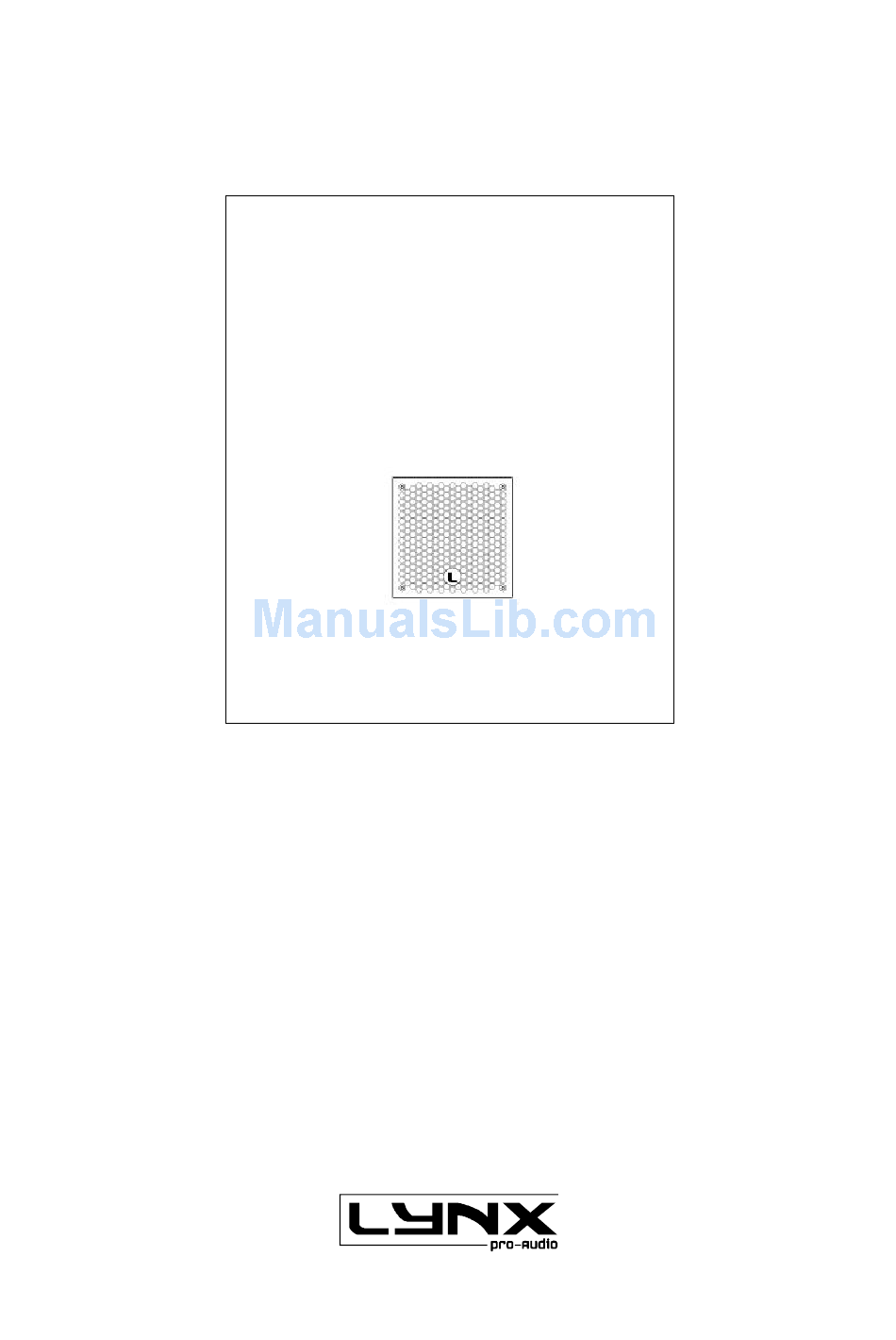

- Page 1 QUICK START GUIDE V.18.06 Lynx Pro Audio S.L. Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com...
- Page 2 LYNX Pro Audio S.L. Calle uno - Pol. Ind. Picassent E-46220 Picassent (Valencia) CE CERTIFICACTION, EUROPEAN PRODUCT This user guide is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited. Copyright 2018. All rights reserved.
-
Page 3: Table Of Contents
-Signal and connections -Overview -The confi guration panel -How to select Input: Digital or Analog -Select and run Presets -The Online Control System OCS 6. ACCESSORIES 7. CERTIFICATIONS AND GUARANTEE LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... -
Page 4: Safety Precautions
When fl ying this system please observe the technical and “Rainbow” software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual. Use Only fl ying accessories provided by Lynx Pro Audio S.L. Rigging must be always carried out by professionals. -
Page 5: Introduction
This manual describes the recommended installation procedure for the ionic-5CX. Please read this manual carefully. The compact ionic-5CX is a versatile cabinet, very easy to use and easy to install. It is designed for general installations where discreet cabinets are required. Clubs, theatres, houses of worship, public buidings, commercial complexes, etc. -
Page 6: Cabinet Overview
Max. SPL 114 dB - 120 dB peak Dimensions 140 x 140 x 220 mm (H x W x D) Coverage 70º conical dispersion Weight 3 Kg (6.6 lbs) Measurements Back panel LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... -
Page 7: Cabinet Connections
EN 60065:2002: Audio, video and similar electronic apparatus. Safety requirements. 4.2 Connectors The ionic-5CX have a connection panel at the rear of the cabinet. This consists of 2 internally bridged Neutrik NL4-MP connectors which apply no process to the signal. -
Page 8: Recommandations
1 cabinet by the number connected. 5. AMPLIFICATION The ionic-5CX is very easy to use. The installation can be done using external amplifi ers or in combination with the powered subwoofers ionic-12S and 18S. -
Page 9: Using The Ionic Powered Subwoofers
5.1 USING THE IONIC POWERED SUBWOOFERS The ionic-5CX can be powered from the active subwoofers ionic-12S or ionic-18S in diff erent confi guration systems. You can use 2 cabinets in combination with one subwoofer ionic-12S or use 4 cabinets with one subwoofer ionic-18S. -
Page 10: Signal And Connections
XLR SOCKET CONNECTORS 2.- LIVE (+) 3.- LIVE (-) XLR AEREAL CONNECTORS CAUTION: Do not connect or disconnect the AC Power co n nec tor s u nd er lo ad . LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... -
Page 11: Overview
1 x 700 W Dimensions (H x W x D) 407 x 440 x 520 mm Speaker Output 1 x 1700 W @ 8 Ohms Weight 23 Kg (50.6 lbs) Amplifi er LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... - Page 12 1 x 1400 W Dimensions (H x W x D) 513 x 505 x 704 mm Speaker Output 2 x 600W @ 4 Ohms Weight 37 Kg (81.5 lbs) Amplifi er LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
-
Page 13: The Confi Guration Panel
EQ again. Note: You must apply the desired confi guration in each ionic subwoofer cabinet. Just select on the screen the cabinet ionic-5CX with the preset confi guration desired. This operation requires electrical power to work. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... -
Page 14: How To Select Input: Digital Or Analog
OK (3) until the progress bar fi nishes (Fig 3). The display will indicate “Loading DSP” (Fig 4) Fig 2 Fig 3 Fig 4 Note: In case of a power cut, the DSP will save its last confi guration when restarted. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... -
Page 15: The Online Control System Ocs
The Online Control System OCS Who is it for? Users of powered subwoofers ionic-12S and other DSP incorporated Lynx Pro Audio Cabinets, where the user has requested the cabinets be supplied with the “Ethernet Module kit”. What is it for? Obtain detailed information of cabinet behaviour and monitor the cabinet/s in real time. -
Page 16: Accessories
6. ACCESSORIES MS-5CX Quick Coupler for 3/8” to 5/8” stand UBR-5CX Wall bracket for the ionic-5CX SP-5CX 35 mm speaker pole to 3/8” male thread LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... -
Page 17: Certifications And Guarantee
Calle 1 - Pol. Ind. Picassent 46220 Picassent (Valencia) SPAIN - EU Tel.: (+34) 961 10 96 01 www.lynxproaudio.com Lynx Pro Audio S.L. declares that ionic series are in conformity with the following EC directives: Low Voltage Directive 2006/95/EC Electromagnetic Compatibility EMC 2004/108/EC... - Page 18 Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L.
