Summary of Contents for Lynx ROX Series

  • Page 1 series USER MANUAL V. 25.01...
  • Page 2 Lynx Pro Audio S.L. shall not be liable to the purchaser of this product or to third parties for any damages, losses, costs, or expenses incurred by the purchaser as a result of an accident, isuse, or abuse of this product, nor for any modifications, repairs, or alterations to it, or for failing to strictly adhere to the operating and maintenance instructions of Lynx Pro Audio S.L.
  • Page 3: Table Of Contents

    CONTENTS IMPORTANT SAFETY INSTRUCTIONS ........................5 1. INTRODUCTION......................................6 INSTALLATION GUIDE ................................7 USER GUIDE.....................................8 MAINTENANCE/ POWER SUPPLY • POWER SUPPLY .............................. 8 • CONTROL PANEL ..................................9 • LINE/MIC FUNCTION ................................9 2. SET UP AND CONNECTION .............................11 • ROX BACK PANEL............................11 MODE LOCATION TREBLE/MID/BASS...
  • Page 4 We hope that as a user you will be completely satisfied. We are sure that the ROX speaker will meet your expectations and make it easier for you to get the most out of your system. ROX Series | User Manual...
  • Page 5: Important Safety Instructions

    Before unpacking your new speaker, verify that the box does not show any damage or deformation. If this happens, please claim the damage to your fordwarder. Once unpacked and verified its correct operation, keep the original box in case you need to ship it back to your provider. ROX Series | User Manual...
  • Page 6: Introduction

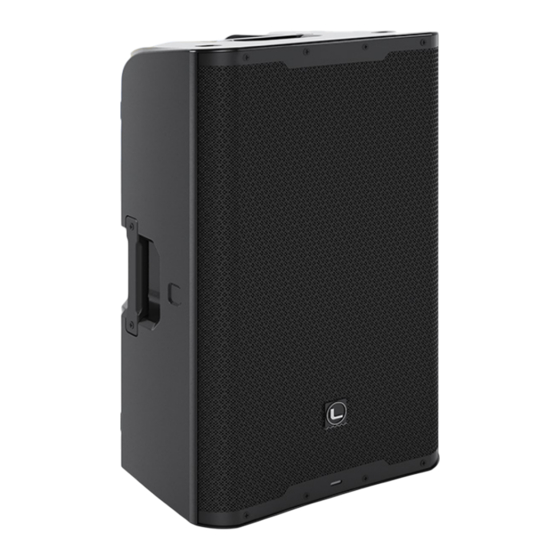

    1.- INTRODUCTION To facilitate the correct and reliable use of the Rox Series we have designed this instruction manual, please read it before proceeding to install the cabinet. The RX-8, RX-10, RX-12 and RX-15 models are 2-way active speakers, representing the best in their class, providing powerful and dynamic sound, perfect for both fixed installations and live events.
  • Page 7: Installation Guide

    Refer to the speaker’s manual for safe overhead installation instructions, which likely recommend two people. • Avoid extrem weather conditions Do not install the speaker in direct sunlight, rain, or any other liquids. The speaker is not waterproof. If installed outdoors, protect it from the elements. ROX Series | User Manual...
  • Page 8: User Guide

    To ensure safe operation, avoid placing liquids or objects near the appliance. If a spill happens, unplug it quickly and contact after-sales service. • Before a thunderstorm or lightning storm, unplug the appliance from the power outlet for safety. ROX Series | User Manual...
  • Page 9: Maintenance

    If a RX cabinet is driven from the output of another RX cabinet, it must be on after the unit providing the signal and off before the unit providing the signal. CABLE (EU) CABLE (US) (PIN) INTERNATIONAL Black Live Brown Light blue White Neutral Yellow/Green Yellow/Green Earth ROX Series | User Manual...
  • Page 10: Set Up And Connection

    6.35 MM (¼“) - CH1: microphone-level inputs. Select MIC or Line from the Menu. LEVEL - CH1 ROTARY KNOB: Adjusts the sensitivity of input 1. MASTER / PUSH FOR DSP: Adjusts the overall volume, pushbutton to activate DSP functions. ROX Series | User Manual...
  • Page 11 When switched on, the following screens appear one after the other: The LEVEL screen shows the sound levels of the different inputs. This allows you to view the signal and adjust the entry level. Once the volume is increased, the levels appear, as shown below: ROX Series | User Manual...
  • Page 12: Menu Settings

    The cabinet is equipped with a BT receiver that allows you to stream music wirelessly from your devices mobile devices such as smartphones, tablets and laptops. BT TWS mode allows you to connect two LYNX RX together via BT to broadcast in stereo from a only BT source (phone, tablet, etc.).
  • Page 13: Mode

    The SUB menu allows you to select a cutoff frequency for a use with a subwoofer. By filtering low frequencies, the efficiency between the speaker and the subwoofer can be balanced. The available cutoff frequencies are as follows: , 80Hz, 100Hz and 120Hz. ROX Series | User Manual...
  • Page 14: Delay

    A confirmation screen is always displayed first. Select YES to execute the function or select NO to cancel the procedure. • INFO This menu allows you to display the DSP version of the software package. ROX Series | User Manual...
  • Page 15: Technical Specifications

    RX- 12: 19Kg RX- 15: 21Kg DSP Processor Level, Treble, Mid, Bass, Delay 4 Audio Modes Normal, Speech, Live and DJ 2 Position Presets Normal, Monitor HPF SUB Filter ON/ 80/ 100/ 120 LED Display ON/ OFF/ LIMIT ROX Series | User Manual...
  • Page 16: Rainbow (Acoustic Prediction Software)

    • Multiple listening zones The program can simulate all Lynx Pro Audio’s acoustic enclosures located in a 3D space, including the classic side, top and front views. It can also define multiple listening zones and allows offset positioning and symmetry. Blueprint images, textures and PNG format pictures can be imported.
  • Page 17: Guarantee

    Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L.
  • Page 18: Declaration Of Conformity

    DECLARATION OF CONFORMITY Lynx Pro Audio S.L. declares that ROX series are in conformity with the following EC directives: Low Voltage Directive 2006/95/EC Electromagnetic Compatibility EMC 2004/108/EC RoHS Directive 2002/95/EC In accordance with Harmonized European Norms: EN 60065:2002 Audio, video and similar electronic apparatus. Safety requirements EN 55103-1:1996 Electromagnetic compatibility.
  • Page 19 LYNX Pro Audio S.L. Calle 1. Pol. Ind. Picassent, Picassent, Valencia 46220 España +34 961 109 601 info@lynxproaudio.com www.lynxproaudio.com...
