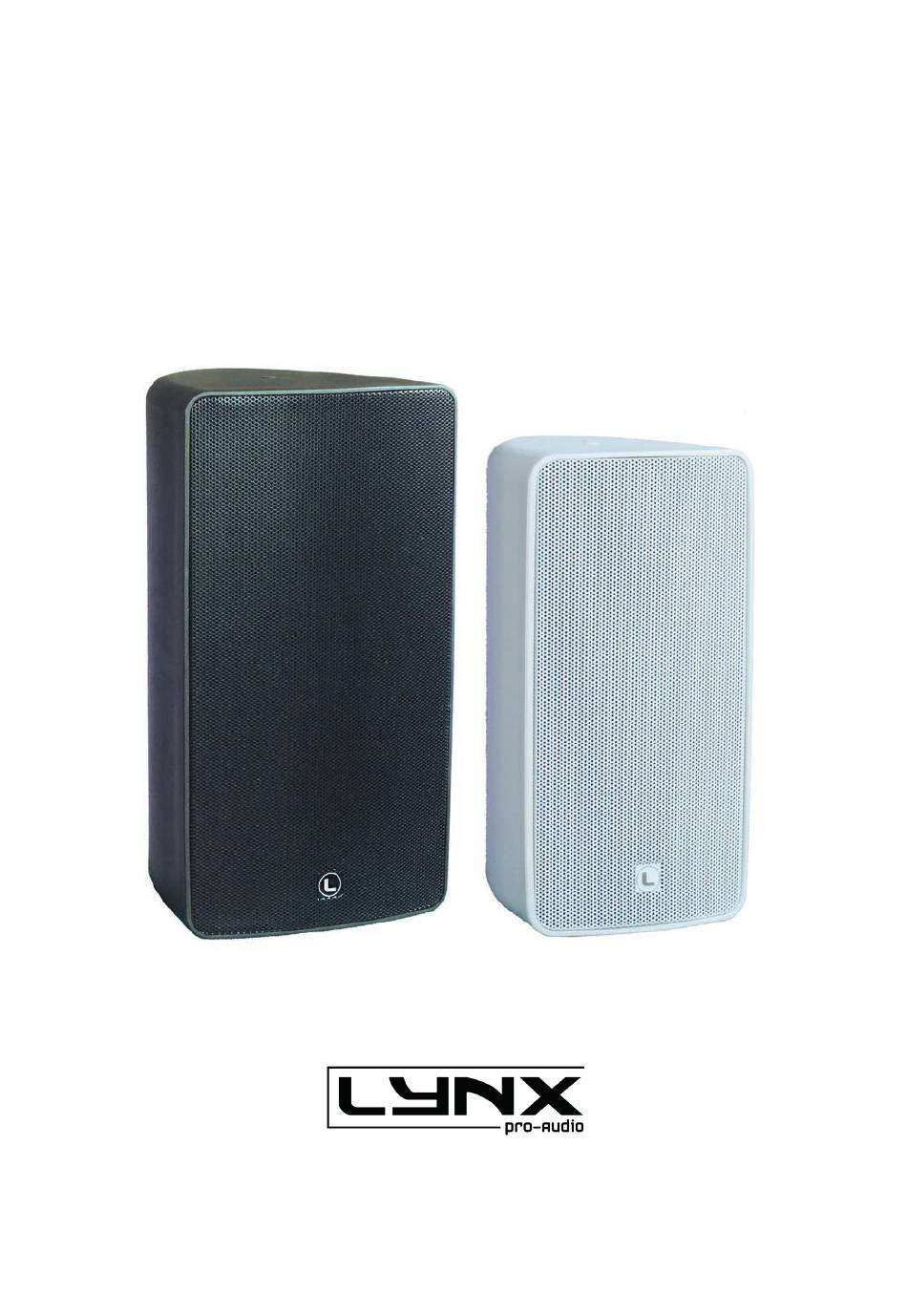

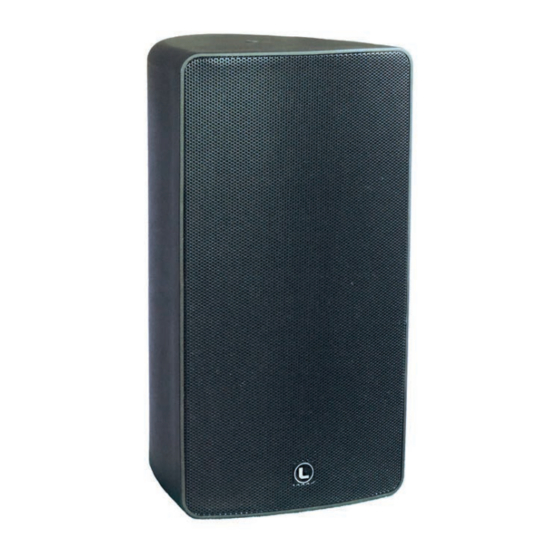

- Page 1 JUNO SERIES USER MANUAL JN-6T / JN-6TW JN-8T / JN-8TW Lynx Pro Audio S.L. Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com V.20.11...
-
Page 2: Table Of Contents
Juno Series User Manual CONTENTS • INTRODUCTION • SAFETY PRECAUTIONS • CABINET CONNECTIONS • TROUBLESHOOTING • JN-6T DATASHEET • JN-8T DATASHEET • LYNX PRO AUDIO GUARANTEE • DECLARATION OF CONFORMITY Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 3: Introduction
Juno series can be set up either vertically or horizontally. The body is made of engineered plastic injection moulding and polypropylene guaranteeing complete protection against ultraviolet rays. -
Page 4: Safety Precautions
“Rainbow” software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual. Use Only flying accessories provided by Lynx Pro Audio S.L. Rigging must be always carried out by professionals. • Delicate Material Please ensure no foreign object or water enters the speaker. -
Page 5: Cabinet Connections
User Manual RIGGING AND SUSPENSION SAFETY PRECAUTIONS Before rigging or suspending Juno series cabinets, inspect all components and all hardware for any signs of damaged or missing parts. If you find any damaged, corroded or deformed parts, do not use them, replace them inmediately. -
Page 6: Troubleshooting
User Manual • 100V Tap Selector: Every speaker from Juno Series is equipped with a multi-tap 100V transformer. There is a rotary selector placed on the back panel, near the connections plug. On this section the user can find five different switch positions according to the pretended 100V power and impedance needed. - Page 7 When the cabinet is in the desired position then tighten the screws (1 per side) and the cabinet will be correctly installed. 360º 360º 360º Lynx Pro Audio S.L www.lynxproaudio.com...
-
Page 8: Jn-6T Datasheet
90º x 60º Crossover frequencies: 2.4 KHz passive Input connectors: Covered barrier strip terminals Package size: 524 x 242 x 417 mm (1 pair) Net weight: 12 Kg / pair Gross weight: 16 Kg / pair Lynx Pro Audio S.L www.lynxproaudio.com... - Page 9 • Internal waterproof fabric • Available in black or white colour Perfectly suited for: • • Meeting rooms • Commercial centers • Waterpaks & pools • Outdoor background music • Beach clubs • Cruise ships Dimmensions: • 181.6 Lynx Pro Audio S.L www.lynxproaudio.com...
-
Page 10: Jn-8T Datasheet
Dispersion (-6 dB): 90º x 50º Crossover frequencies: 2.3 KHz passive Input connectors: Covered barrier strip terminals Package size: 370 x 310 x 525 mm Net weight: 10 Kg / pc Gross weight: 12 Kg / pc Lynx Pro Audio S.L www.lynxproaudio.com... - Page 11 • Available in black or white colour Perfectly suited for: • • Meeting rooms • Commercial centers • Waterpaks & pools • Outdoor background music • Beach clubs • Cruise ships • Dimmensions: 335.5 240.2 Lynx Pro Audio S.L www.lynxproaudio.com...
-
Page 12: Lynx Pro Audio Guarantee
When products are under guarantee, the repairing and the free supplying of the device parts in order to correct any kind of defect are guaranteed by Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L. -
Page 13: Declaration Of Conformity
Calle 1 - Pol. Ind. Picassent 46220 Picassent (Valencia) SPAIN - EU Tel.: (+34) 961 10 96 01 www.lynxproaudio.com Lynx Pro Audio S.L. declares that Juno series are in conformity with the following EC direc- tives: Low Voltage Directive 2014/35/UE Electromagnetic Compatibility EMC...
