MTX2-42-T Quick Start Guide
This guide helps you install and use your MTX2-42-T for the first time.
Go to
firmware upgrades are available.
Scan for full manual
Step 1: Check what's in the box

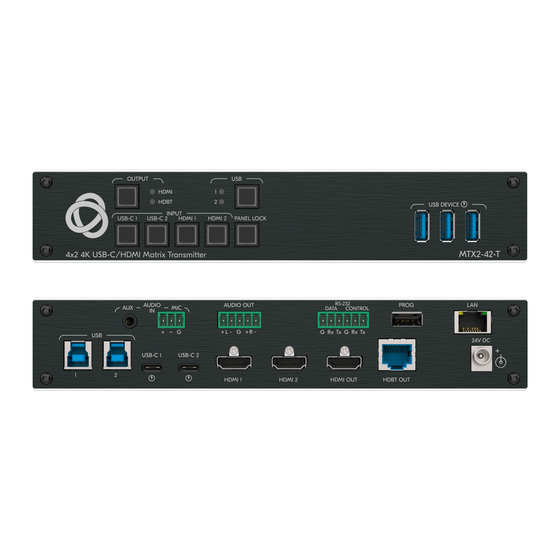

MTX2-42-T Matrix Transmitter
1 Power supply and cord

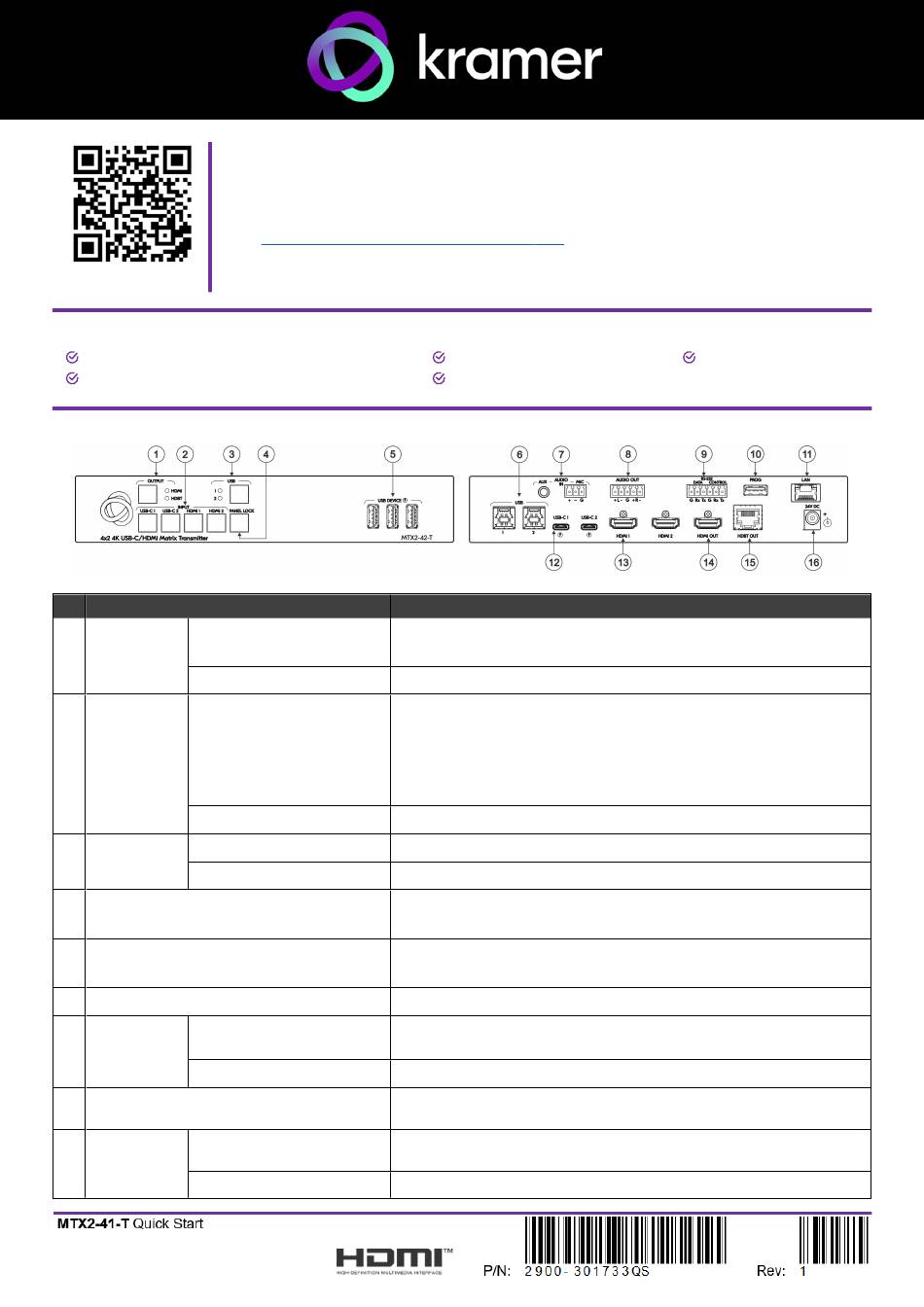

Step 2: Get to know your MTX2-42-T
# Feature
1 OUTPUT
Select Button
HDMI/HDBT LEDs
INPUT Buttons USB-C (1 and 2)
2
HDMI (1 and 2)
3 USB Select Button
1 & 2 LEDs
PANEL LOCK Button
4
USB 3.0 DEVICES Type A Connectors (3)
5
6 USB 3.0 Host Type B Connectors (1 and 2)
AUDIO IN
7 AUX 3.5mm Mini Jack
MIC 3-pin Terminal Block
8 AUDIO OUT 5-pin Terminal Block
9 RS-232 DATA 3-pin Terminal Block
Connector
CONTROL 3-pin Terminal
http://www.kramerav.com/downloads/MTX2-42-T
Function
Press to select to which output to route when an INPUT selection button is
pressed.
LED lights green when selected.
Press to select a USB-C input. Button illuminates when that input is
l
selected.
Press and hold the OUTPUT and the USB-C-1 buttons simultaneously,
l
for 3 seconds, to update the FW.
Press and hold the OUTPUT and the USB-C-2 buttons simultaneously,
l
for 3 seconds, for FACTORY RESET.
Press to select an HDMI input. Button illuminates when that input is selected.
Press to select the USB HOST port to connect to the USB devices
Lights green when selected.
Press and hold to lock/unlock the front panel buttons. Button illuminates when
front panel is locked.
Connect to USB devices. The user can select which USB host is connected to
the USB devices.
Connect to USB hosts.
Connect to an unbalanced analog audio source (for example, the audio output
of the laptop).
Connect to a dynamic or condenser (with 48V phantom power) microphone.
Connect to a balanced stereo audio acceptor (for example, active speakers).
Connect to a control device serial port for extension over the HDBT
connection.
Connect to a serial controller or PC to control MTX2-42-T or to a serially-
to download the latest user manual and check if
Set rubber foot
1 Quick start guide
1 USB-C cable
