A 1/2" (1.3 cm) male pipe thread is needed for connection to the female
pipe threads of the inlet to the appliance pressure regulator.
•
Do not kink or damage the flexible metal tubing when moving the range.
Rigid Pipe Connection
• Since the range must be pulled away from the installation space to
provide access to the gas regulator connections, and because hard
piping restricts movement of the range, the range can only be installed
using a CSA International-certified flexible metal appliance connector.
• If local codes require a hard-piped connection, a combination of pipe
fittings must be used to connect the range to the existing gas line and
maintain an accessible working space behind the range. Consult with a
qualified local technician for an optimal connection suitable for your
installation.
Gas Shut-off Valve
A manual gas line shut-off valve must be installed in an easily accessible
location. Do not block access to shut-off valve. The valve is for turning on or
shutting off gas to the range.
A
GAS PRESSURE REGULATOR
The gas pressure regulator supplied with this range must be used. The inlet
pressure to the regulator should be as follows for proper operation:
Minimum pressure
Maximum pressure
Contact local gas supplier if you are not sure about the inlet pressure.
C
B
Natural gas
A

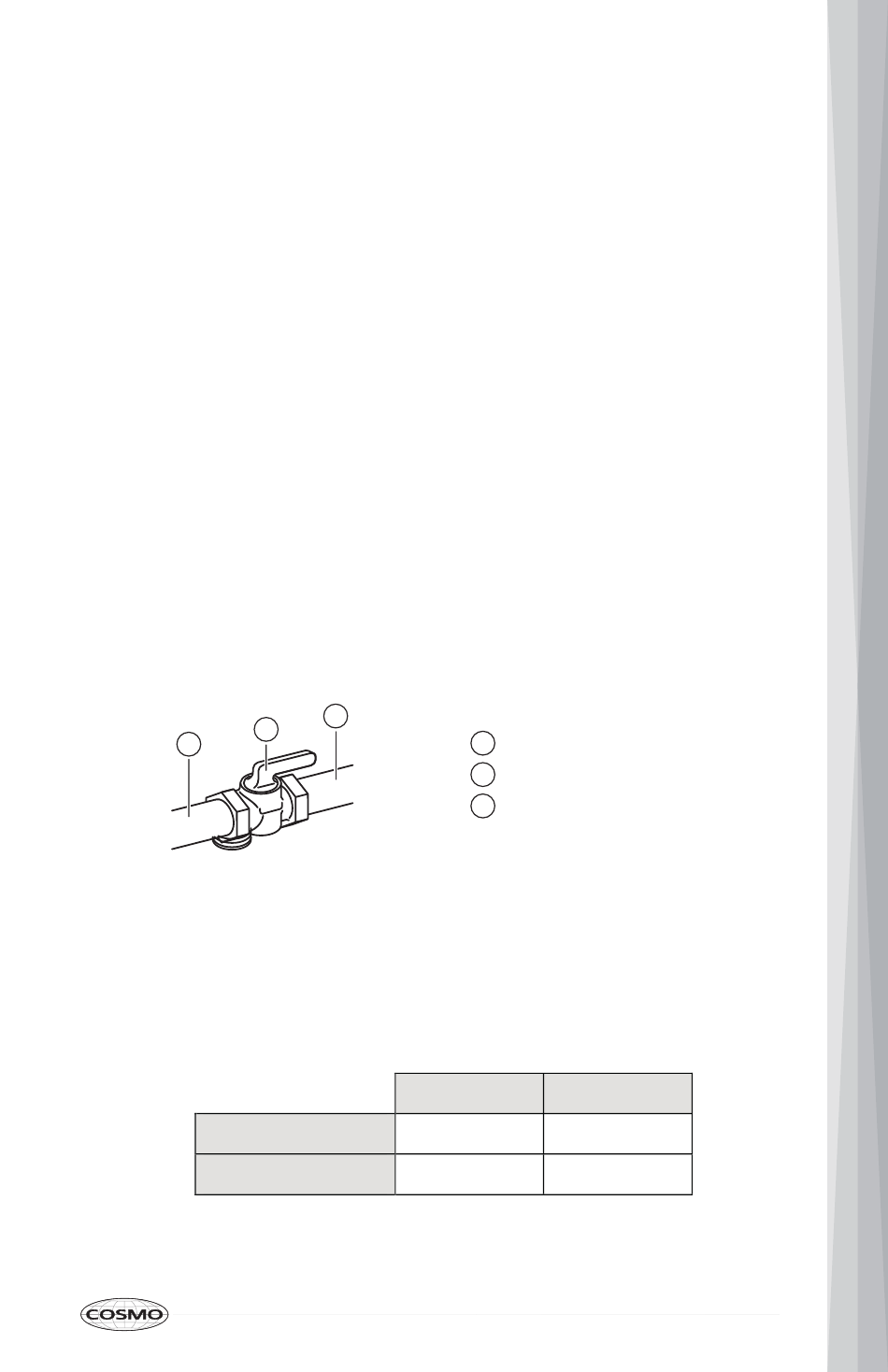

Gas Supply Line
B
Shutoff Valve "Open" Position
C
To Range
LP gas
3.5" WC
8" WC
7" WC
11" WC
