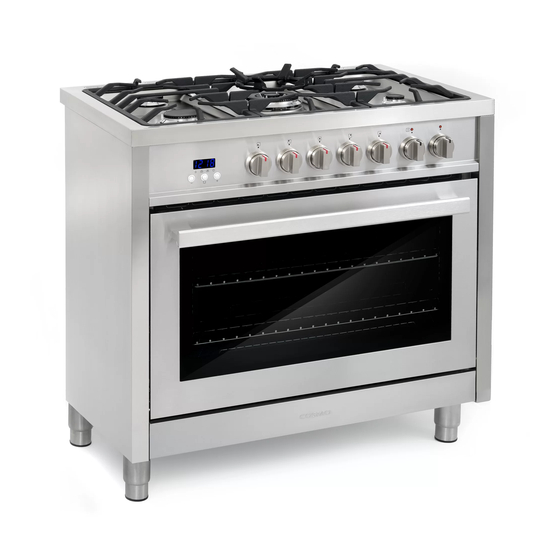

- Page 1 DUAL FUEL RANGE F965 F965NF 36-IN FREESTANDING RANGE INSTALLATION MANUAL IMPORTANT: READ AND SAVE THESE INSTRUCTIONS. FOR RESIDENTIAL USE ONLY. INSTALLER: PLEASE LEAVE THIS GUIDE WITH THE HOMEOWNER. HOMEOWNER: PLEASE KEEP THIS GUIDE FOR FUTURE REFERENCE. Rev. 22.10...
- Page 3 COSMO Appliances are designed according to the strictest safety and performance standard for the North American market. We follow the most advanced manufacturing philosophy.
-
Page 4: Table Of Contents
TABLE OF CONTENTS RANGE SAFETY....................3 Anti-tip Device ......................4 INSTALLATION REQUIREMENTS ................ 6 Tools and Parts ......................6 Location Requirements .................... 8 Product Dimensions ....................10 Clearances ........................11 Venting Requirements ..................... 12 Electrical Requirements ................... 13 Gas Supply Requirements ..................17 INSTALLATION INSTRUCTIONS ................ -
Page 5: Range Safety
RANGE SAFETY WARNING Fire Hazard If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. - Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. -
Page 6: Anti-Tip Device
WARNING Tip Over Hazard • A child or adult can tip the range and be killed. • Install anti-tip bracket to floor or wall per installation instructions. • Slide range back so rear range foot is engaged in the slow of the anti-tip bracket. - Page 7 Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.
-
Page 8: Installation Requirements
INSTALLATION REQUIREMENTS TOOLS AND PARTS Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here. Tools Needed • Tape measure • Marker or pencil • Flat-blade screwdriver • 3/16" (4.8 mm) carbide-tipped masonry drill bit (for •... - Page 9 Parts Needed Gas supply line kit (supply line and 2 adapters) Optional Parts To purchase these or any other accessories, please visit www.cosmoappliances.com or reference the contact information at the end of this manual. • LP conversion kits Scan to find available LP kits...
-
Page 10: Location Requirements
LOCATION REQUIREMENTS IMPORTANT: Observe all governing codes and ordinances. Do not obstruct flow of combustion and ventilation air. • It is the installer's responsibility to comply with installation clearances specified on the model/serial rating plate. The model/serial rating plate is located behind the oven door on the oven frame. - Page 11 Mobile Home - Additional Installation Requirements • The installation of this range must conform to the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD Part 280).
-
Page 12: Product Dimensions
PRODUCT DIMENSIONS This manual covers several models. Your model may appear different from the models depicted. Dimensions given are maximum dimensions across all models. F965 35.4 in (900 mm) 1.77 in (45 mm) Vent height 35.4 in (900 mm) To cooktop 25.0 in (635 mm) 27.0 in... -
Page 13: Clearances
CLEARANCES IMPORTANT: Some cabinet and building materials are not designed to withstand the heat produced by the oven for baking and self-cleaning. Check with your builder or cabinet supplier to make sure that the materials used will not discolor, delaminate or sustain other damage. GIVEN DIMENSIONS ARE MINIMUM CLEARANCES. -
Page 14: Venting Requirements
VENTING REQUIREMENTS IMPORTANT: This range must be exhausted outdoors unless you are using ductless venting. Observe all governing codes and ordinances. Do not obstruct flow of combustion and ventilation air. • Do not terminate the vent system in an attic or other enclosed area. •... -
Page 15: Electrical Requirements
ELECTRICAL REQUIREMENTS WARNING Electrical Shock Hazard The electrical power to the oven branch circuit must be shut off while line connections are being made. Do not use an extension cord with this appliance. Electrical ground is required on this appliance. The free end of the green wire (the ground wire) must be connected to a suitable ground. - Page 16 ELECTRICAL SPECIFICATIONS COMPONENT WATTAGE Upper Inner Heating Element 3158W Upper Outer Heating Element 2395W Rear Heating Elements 2 x 1250W Lower Heating Element 1960W Oven Lights 2 x 25W Convection Fan Motors 2 x 16W Cooling Fan Motor ELECTRICAL REQUIREMENTS - U.S.A. ONLY If codes permit and a separate ground wire is used, it is recommended that a qualified electrical installer determine that the ground path is adequate and wire gauge is in accordance with local codes.
- Page 17 • A circuit breaker is recommended. • Allow 3 ft - 6 ft (0.9 m - 1.8 m) of slack in the line so that the range can be moved if servicing is ever necessary. • A UL listed conduit connector must be provided at each end of the power supply cable (at the range and at the junction box).
- Page 18 If codes permit and a separate ground wire is used, it is recommended that a qualified electrical installer determine that the ground path is adequate and wire gauge are in accordance with local codes. Be sure that the electrical connection and wire size are adequate and in conformance with CSA Standard C22.1, Canadian Electrical Code, Part 1 - latest edition, and all local codes and ordinances.
-
Page 19: Gas Supply Requirements
GAS SUPPLY REQUIREMENTS WARNING Explosion Hazard Use a new CSA International approved gas supply line. Install a shut-off valve. Securely tighten all gas connections. If connected to LP, have a qualified person make sure gas pressure does not exceed the maximum pressure listed in this section. Examples of a qualified person include: •... - Page 20 LP Gas Conversion: Conversion must be performed by a qualified service technician. The qualified agency performing this work assumes the gas conversion responsibility. No attempt shall be made to convert the appliance from the gas specified on the model/serial rating plate for use with a different gas without consulting the serving gas supplier.
- Page 21 Gas shutoff valve: A manual gas line shut-off valve must be installed in an easily accessible location. Do not block access to shut-off valve. The valve is for turning on or shutting off gas to the range. Gas Supply Line Shutoff Valve "Open"...
-
Page 22: Installation Instructions
INSTALLATION INSTRUCTIONS IMPORTANT: This appliance shall be installed only by authorized persons and in accordance with the manufacturer's installation instructions, local gas fitting regulations, municipal building codes, electrical wiring regulations, local water supply regulations. UNPACK RANGE WARNING Excessive Weight Hazard Use two or more people to move and install range. -
Page 23: Install Anti-Tip Device
INSTALL ANTI-TIP DEVICE WARNING Tip Over Hazard • A child or adult can tip the range and be killed. • Install anti-tip bracket to floor or wall per installation instructions. • Slide range back so rear range foot is engaged in the slot of the anti-tip bracket. - Page 24 2. Place the bracket so that the back of the bracket is against the rear wall and the side edge of the bracket is 3/8" to 1/2" from the adjacent cabinet. NOTE: If there is no adjacent cabinet, place the bracket so that the edge of the bracket is 3/8"...
- Page 25 5. Install the anti-tip bracket. Wood • Using the two screws (provided) fasten the anti-tip bracket to the floor or wall. NOTE: The screw must enter wood or metal. Concrete • Insert the sleeve anchor into the drilled holes and then insert the lag bolts through the anti-tip bracket and into the floor or wall.
-
Page 26: Install Backsplash
INSTALL BACKSPLASH • Install the backsplash to rear of range with the screws provided. ELECTRICAL CONNECTION INSTALL USING A POWER SUPPLY CORD WARNING Electrical Shock Hazard Disconnect power before servicing. Use a new 40 amp power supply cord. Plug into a grounded outlet. Failure to do so can result in death, fire, or electrical shock. - Page 27 Power supply cord strain relief 1. Disconnect power. 2. Remove the terminal block cover screws located on the back of the range. Pull the cover down and toward you to remove cover. Terminal block access (F965NF only) 3. Remove the knockout for the 40-amp supply cord, and assemble a UL listed strain relief in the opening.
- Page 28 3-Wire Connection: Power Supply Cord Use this method only if local codes permit connecting chassis ground conductor to neutral wire of power supply cord. Terminal Block Jumper Wire Ground Screw Strain Relief Strain Relief Nut Power Supply Cord 1. Use 3/8" (1.0 cm) nut driver to connect the ground (green) wire from the power supply cord to the center terminal block post with one of the 10-32 hex nuts.
- Page 29 4-Wire Connection: Power Supply Cord Use this method for new branch-circuit installations (1996 NEC), mobile homes, recreational vehicles, or in an area where local codes prohibit grounding through the neutral. Terminal Block Jumper Wire Ground Screw Strain Relief Strain Relief Nut Power Supply Cord 1.
- Page 30 6. Firmly tighten hex nuts. NOTE: For power supply cord replacement, use only a power cord rated at 250V minimum, 40 or 50 A that is marked for use with nominal 1 3/8" (3.5 cm) diameter connection opening, with ring terminals and marked for use with ranges.
- Page 31 Your local codes and ordinances, of course, take precedence over these instructions. Complete electrical connections according to local codes and ordinances. Direct wire strain relief 1. Disconnect power. 2. Remove the terminal block cover screws located on the back of the range. Pull the cover down and toward you to remove cover.
- Page 32 4. Feed the flexible conduit through the conduit connector, and tighten strain relief screw against the flexible conduit. 5. Complete installation following instructions for your type of electrical connection: • 4-wire (recommended) • 3-Wire (if 4-wire is not available) 3-Wire Connection: Direct Wire Use this method only if local codes permit connecting ground conductor to neutral supply wire.
- Page 33 Grounded Neutral Junction Box Red Wires White Wires Green Wire Cable from Oven UL Listed Conduit Connector Black Wires Cable from Power Supply 4-Wire Connection: Direct Wire Use this method for new branch-circuit installations (1996 NEC), mobile homes, recreational vehicles, or in an area where local codes prohibit grounding through the neutral.
-
Page 34: Gas Connection
Ungrounded Neutral Junction Box Red Wires Green Wires Cable from Oven UL Listed Conduit Connector Black Wires White Wires Cable from Power Supply GAS CONNECTION WARNING Explosion Hazard Use a new CSA International approved gas supply line. Install a shut-off valve. Securely tighten all gas connections. - Page 35 This appliance shall be installed only by authorized persons and in accordance with the manufacturer's installation instructions, local gas fitting regulations, municipal building codes, electrical wiring regulations, local water supply regulations. This range is factory-set for use with Natural gas. To use this range with Propane gas, see the "GAS CONVERSION section before connecting this range to the gas supply.
- Page 36 TYPICAL RIGID PIPE CONNECTION A combination of pipe fittings must be used to connect the range to the existing gas line. Your connections may be different, according to the supply line type, size and location. 1. Apply pipe-joint compound made for use with LP gas to all pipe thread connections.
-
Page 37: Complete Connection
COMPLETE CONNECTION WARNING Electrical Shock Hazard Disconnect power before servicing. Plug into a grounded 3-prong outlet. Do not use an adapter or an extension cord. Failure to do so can result in death, fire, or electrical shock 1. Open the manual shutoff valve in the gas supply line. The valve is open when the handle is parallel to the gas pipe. -
Page 38: Adjust Flame Height
Note: Align notches in burner caps with pins in burner base. Burner caps should be level when properly positioned. If burner caps are not properly positioned, surface burners will not light. Incorrectly Positioned Base Correctly Positioned Auxiliary Burner Triple Ring Burner Semi Rapid Burner Rapid Burner 4. - Page 39 The flame can be adjusted using the adjustment screw in the center of the valve stem. The valve stem is located directly behind the control knob. 1. Light the burner and turn the knob to the lowest setting (MIN). 2. Pull and remove the control knob. 3.
-
Page 40: Level Range
LEVEL RANGE IMPORTANT: Do not operate the range if its rear foot is not completely engaged in the anti-tip bracket. Never completely remove the leveling legs or the range will not be secured to the anti-tip device properly. 1. Slide range into final location, making sure rear leveling leg slides into the anti- tip bracket. - Page 41 2. Slowly attempt to tilt the range forward. • If you encounter immediate resistance, the range foot is engaged in the anti-tip bracket. Range installation is completed. • If the rear of the range lifts more than 1/2" (1.3 cm) off the floor without resistance, stop tilting the range and lower it gently back to the floor.
-
Page 42: Gas Conversion
GAS CONVERSION WARNING Explosion Hazard Use a new CSA International approved gas supply line and install a shut- off valve for new installations. Securely tighten all gas connections. If connected to LP, have a qualified person make sure gas pressure does not exceed the maximum pressure listed in the "Gas Supply Requirement"... -
Page 43: Convert Gas Pressure Regulator
LP/PROPANE GAS CONVERSION IMPORTANT: Gas conversions must be done by a qualified service technician in accordance with the manufacturer's instructions and all codes and requirements of the authority having jurisdiction. The qualified agency performing this work assumes the gas conversion responsibility. Convert Gas Pressure Regulator 1. -
Page 44: Convert Surface Burners
6. Turn the retainer pin upside down and place it back into the regular cap. The regular cap is now positioned for use with LP gas. Propane gas position 7. Screw and tighten the regulator cap back into the gas pressure regulator with the wrench. - Page 45 4. Replace the natural gas orifices with the correct LP gas orifices from the LP conversion kits. LP gas orifices are stamped with a size. Refer to the following chart for correct LP gas orifice ratings and sizes for proper placement.
-
Page 46: Complete Gas Conversion
6. Replace the burner base, the burner caps, and the burner grates. Burner cap Burner base Igniter Flame failure safety device (for older versions) Complete Gas Conversion 1. Open shutoff valve in the gas supply line. 2. Plug in cooktop or reconnect power. •... - Page 47 IMPORTANT Do Not Return This Product To The Store If you have a problem with this product, please contact COSMO Customer Support at +1 (888) 784-3108 DATED PROOF OF PURCHASE, MODEL #, AND SERIAL # REQUIRED FOR WARRANTY SERVICE. IMPORTANT Ne pas Réexpédier ce Produit au Magasin...
- Page 48 MEMO...
- Page 50 APPLIANCES Cosmo is constantly making efforts to improve the quality and performance of our products, so we may make changes to our appliances without updating this manual. Electronic version of this manual is available at: www.cosmoappliances.com...
