dji PHANTOM 4 ADVANCED User Manual page 9

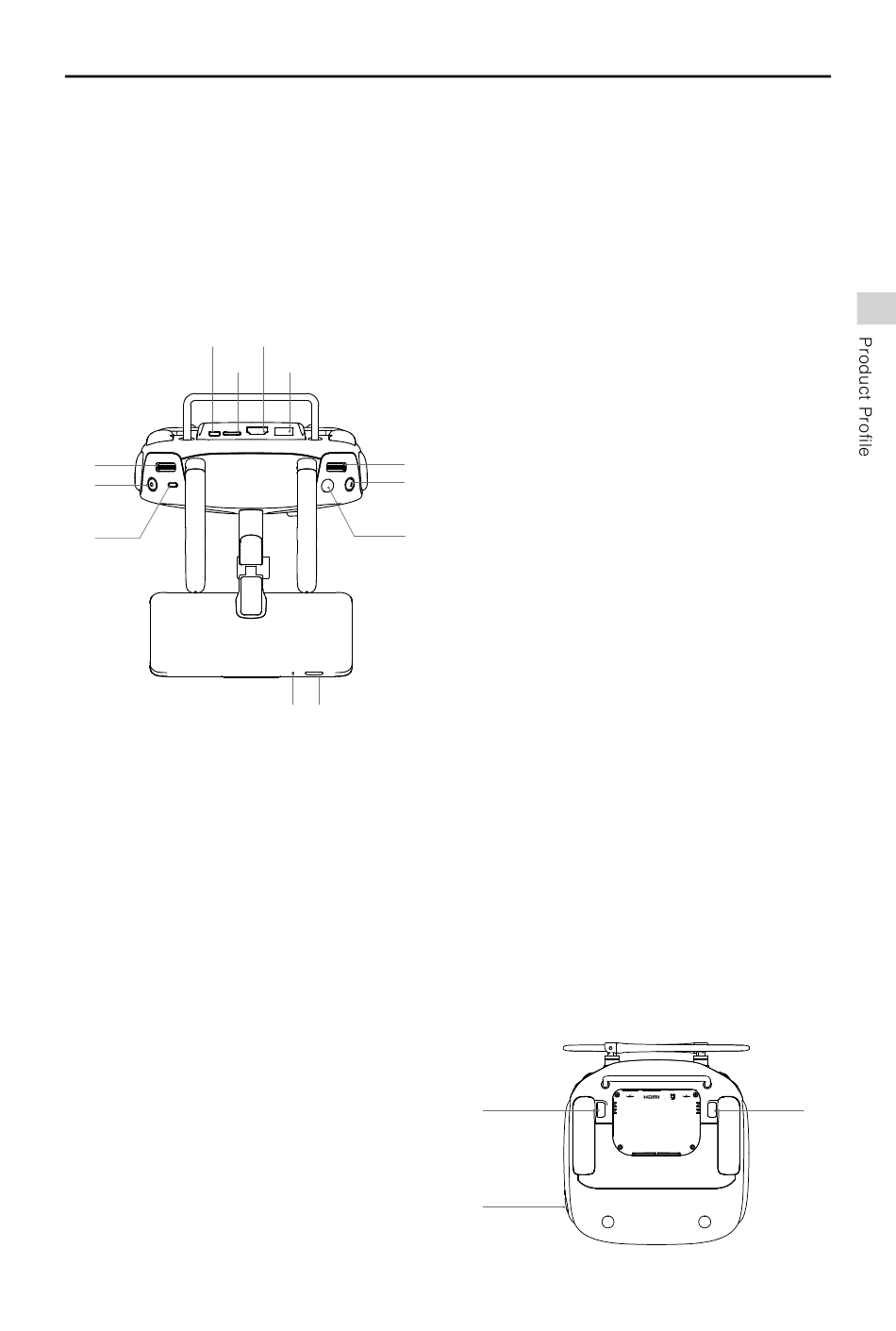

Battery Level LEDs
[5]
Displays the battery level of the Remote
Controller.
Status LED
[6]
Displays the Remote Controller's system status.
Power Button
[7]
Used to turn the Remote Controller on and off.
[18]
[19]
[17]
[16]
[15]
Camera Settings Dial
[10]
Turn the dial to adjust camera settings.
(Only functions when the Remote Controller
is connected to a mobile device running
the DJI GO 4 app.)
Intelligent Flight Pause Button
[11]
Press once to allow the aircraft to exit from
TapFly, ActiveTrack and other intelligent
flight modes.
C1 Button
[22]
Customizable through the DJI GO 4 app.
C2 Button
[23]
Customizable through the DJI GO 4 app.
Power Port
[24]
Connect to the Charger to charge the
battery of the Remote Controller.
[20]
[21]
[10]
[11]
[12]
[14] [13]
Phantom 4 Advanced / Advanced+ User Manual
RTH LED
[8]
Circular LED around the RTH button displays
RTH status.
Speaker
[9]
Audio output.
Shutter Button
[12]
Two-stage button, press to take a photo.
Sleep/Wake Button
[13]
Press to sleep/wake the screen, press and
hold to restart.
Microphone
[14]
Flight Mode Switch
[15]
Switch between P-mode, S-mode, and
A-mode.
Video Recording Button
[16]
Press to start recording video. Press again
to stop recording.
[17] Gimbal Dial
Use this dial to control the tilt of the gimbal.
Micro USB Port
[18]
Upgrading the aircraft by connecting to
the remote controller using the USB OTG
cable.
Micro SD Card Slot
[19]
Provide extra storage space for the display
device, maximum supporting 128 GB.
HDMI Port
[20]
Output HDMI video signal.
USB Port
[21]
USB device support.
[23]
[24]
©
2017 DJI All Rights Reserved.
[22]
9
