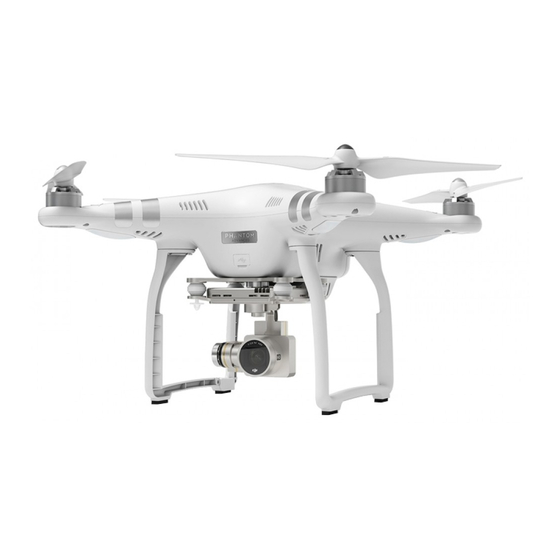

dji phantom 3 User Manual
Hide thumbs Also See for phantom 3:

Advertisement

PHANTOM 3
ADVANCED
User Manual
V1.6
2015.10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the phantom 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for dji phantom 3

  • Page 1 PHANTOM 3 ADVANCED User Manual V1.6 2015.10...
  • Page 2: Using This Manual

    We recommend that you watch all tutorial videos on the official DJI website and read the Disclaimer before you fly. Prepare for your first flight by reviewing the Phantom 3 Advanced Quick Start Guide and refer to the User Manual for more detailed information.
  • Page 3: Table Of Contents

    Contents Using this manual Legends Read Before the First Flight Video Tutorials Download the DJI GO app Product Profile Introduction Feature Highlights Preparing the Aircraft Aircraft Diagram Remote Controller Diagram Aircraft Flight Controller Flight Mode Flight Status Indicator Return-to-Home (RTH)
  • Page 4 Flight Environment Requirements Flight Limits and No-Fly Zones Preflight Checklist Calibrating the Compass Auto Takeoff and Auto Landing Flight Test Starting/Stopping the Motors Troubleshooting (FAQ) Appendix Specifications Firmwares Update Intelligent Flight Mode After-Sales Information FCC Compliance © 2015 DJI. All Rights Reserved.
  • Page 5: Product Profile

    Product Profile This section introduces the Phantom 3 Advanced and lists the components of the aircraft and remote controller. © 2015 DJI. All Rights Reserved.
  • Page 6: Introduction

    Vision Positioning System allows the aircraft to hover accurately in place. Feature Highlights Camera and Gimbal: Phantom 3 Advanced has a fully integrated camera that shoots 1080p video at up to 60 frames per second and captures 12 megapixel photos. An enhanced sensor gives you greater clarity, lower noise, and better pictures than any previous flying camera.
  • Page 7 Phantom 3 Advanced User Manual Attaching the Propellers: Mount the propellers with black dots on to motors with black axes and spin counter-clockwise to secure. Mount the propellers with sliver dots on to motors with sliver axes and spin clockwise to secure. Be sure all propellers are securely in place.
  • Page 8: Aircraft Diagram

    Phantom 3 Advanced User Manual Aircraft Diagram [1] GPS [2] Propeller [3] Motor [4] Front LED Indicator [5] Landing gear [6] Gimbal and Camera [10] [7] Camera Status Indicator [11] [8] Aircraft Micro-USB Port [12] [9] Aircraft Status Indicator [10] Intelligent Flight Battery...
  • Page 9 Customizable through the DJI GO app. [18] C2 Button [18] [17] Customizable through the DJI GO app. [19] Power Port Connect to the DJI Phantom 3 Charger to [19] charge the battery of the remote controller. © 2015 DJI. All Rights Reserved.
  • Page 10: Aircraft

    Aircraft This section introduces the features of the Flight Controller, Vision Positioning System, and the Intelligent Flight Battery © 2015 DJI. All Rights Reserved.
  • Page 11: Flight Controller

    Use the Flight Controller mode switch to change the flight mode of the aircraft, refer to the “Flight Mode Switch” on Page 26 for more information. Flight Status Indicator The Phantom 3 Advanced has Front LEDs and Aircraft Status Indicators. The positions of these LEDs are shown in the figure below: Aircraft Status Indicator Front LED The Front LEDs show the orientation of the aircraft.
  • Page 12: Return-To-Home (Rth)

    Use the RTH button on the remote controller (refer to “RTH button” on page 26 for more information) or tap the RTH button in the DJI GO app and follow the on-screen instructions when GPS is available to ini- tiate Smart RTH. The aircraft will then automatically return to the last recorded Home Point. You may use the remote controller’s control sticks to control the aircraft’s position to avoid a collision during the Smart...
  • Page 13: Low Battery Rth

    Low Battery RTH The low battery level failsafe is triggered when the DJI Intelligent Flight Battery is depleted to a point that may affect the safe return of the aircraft. Users are advised to return home or land the aircraft immediately when prompted.
  • Page 14: Failsafe Rth

    The aircraft cannot avoid obstruction during the Failsafe RTH, therefore, it is important to set an suitable Failsafe altitude before each flight. Launch the DJI GO app and enter “Camera” and select “MODE > Advanced Settings > Failsafe mode” to set the Failsafe altitude.
  • Page 15: Vision Positioning System

    The DJI Vision Positioning System uses ultrasound and image data to help the aircraft maintain its current position. With the help of Vision Positioning, your Phantom 3 Advanced can hover in place more precisely and fly indoors or in other environments where a GPS signal is not available. The main components of the Vision Positioning System are located on the bottom of your Phantom 3 Advanced;...
  • Page 16: Flight Recorder

    Flight data is automatically recorded to the internal storage of the aircraft. This includes flight telemetry, aircraft status information, and other parameters. To access these data, connect the aircraft to the PC through the Micro-USB port and launch the DJI GO app. ©...
  • Page 17: Attaching And Detaching The Propellers

    Phantom 3 Advanced User Manual Attaching and Detaching the Propellers Use only DJI approved propellers with your Phantom 3 Advanced. The grey and black nuts on the propeller indicate where they should be attached and in which direction whey should spin. To attach the propellers properly, match the nut color with the motor axis color.
  • Page 18: Dji Intelligent Flight Battery

    Phantom 3 Advanced User Manual DJI Intelligent Flight Battery The DJI Intelligent Flight Battery has a capacity of 4480 mAh, a voltage of 15.2 V, and a smart charge/ discharge functionality. It should only be charged using an appropriate charger that has been approved by DJI.
  • Page 19 Battery voltage should reach the appropriate level when operating environment with temperatures between -10°C and 5°C. 3. End the flight as soon as the DJI GO app displays the “Low Battery Level Warning” in low temperature environments. 4. Keep the battery indoors to warm it before flying in low temperature environments.
  • Page 20: Remote Controller

    20% When battery life reaches 0%, it can no longer be used. For more information about the battery, launch the DJI GO app and check the information that is listed under the battery tab. Charging the Intelligent Flight Battery 1.
  • Page 21 Launch the DJI GO app to check battery levels. Rapid : Fly the Phantom 3 Advanced outdoors until there is less than 8% of power left, or until the battery can no longer be turned on.
  • Page 22: Remote Controller

    Remote Controller This section describes the features of the remote controller and includes instructions for controlling the aircraft and the camera. © 2015 DJI. All Rights Reserved.
  • Page 23: Remote Controller Profile

    Turning the Remote Controller On and Off The Phantom 3 Advanced remote controller is powered by a 2S rechargeable battery that has a capacity of 6000 mAh. The battery level is indicated via the Battery Level LEDs on the front panel. Follow the steps below to turn on your remote controller: 1.
  • Page 24 Phantom 3 Advanced User Manual Power Outlet Charger Power Button Controlling the Camera Shoot videos/pictures, view recorded images, and adjust camera settings via the Shutter Button, Camera Settings Dial, Playback Button, and Video Recording Button on the remote controller. [1] Camera Settings Dial Turn the dial to adjust camera settings such as ISO, shutter speed, and aperture without letting go of the remote controller.
  • Page 25 Push the sick left to rotate the aircraft counter- clockwise, push the stick right to rotate the aircraft clockwise. If the stick is centered, the Phantom 3 Advanced will maintain its current orientation. The more the stick is pushed away from the center position, the faster the Phantom 3 Advanced will rotate.
  • Page 26 IOC, refer to the IOC section in the Appendix. By default, the Flight Mode Switch is locked to P-mode. To unlock other flight modes, launch the DJI GO app, enter the “Camera” page, and tap “Mode”, then activate “Multiple Flight Mode”.
  • Page 27: Remote Controller Status Led

    Phantom 3 Advanced User Manual Connecting Your Mobile Device Tilt the mobile device holder to the desired position. Press the button on the side of the mobile device holder to release the clamp, and then place your mobile device into the cradle. Adjust the clamp down to secure the mobile device.
  • Page 28: Linking The Remote Controller

    The remote controller is linked to your aircraft before delivery. Linking is only required when using a new remote controller for the first time. Follow these steps to link a new remote controller: 1. Turn on the remote controller and connect to the mobile device. Launch the DJI GO app. 2. Turn on the Intelligent Flight Battery.
  • Page 29: Remote Controller Compliance Version

    Phantom 3 Advanced User Manual 4. The remote controller is ready to link. The Remote Controller Status Indicator blinks blue and a beep is emitted. RC Control Setting RC Calibration Stick Mode Searching for aircraft frequency, timeout in 54 seconds Default stick mode is Mode 2, changing stick modes alters the way the aircraft is controlled.
  • Page 30: Camera And Gimbal

    This section provides the technical s p e c i f i c a t i o n s o f t h e c a m e r a a n d explains the gimbal’s operation modes. © 2015 DJI. All Rights Reserved.
  • Page 31: Camera Profile

    Do not remove the Micro-SD card from the Phantom 3 Advanced when it is turned on. Camera Data Port Turn on the Phantom 3 Advanced and connect a USB cable to the Camera Data Port to download photos and videos to your computer.
  • Page 32: Gimbal

    Camera Operation Use the Shutter and Video Recording buttons on the remote controller to shoot the images or videos through the DJI GO app. For more information about how to use these buttons, refer to “Controlling the Camera Page 24”.
  • Page 33 Two gimbal operation modes are available. Switch between the different operation modes on the camera settings page of the DJI GO app. Note that your mobile device must be connected to the remote controller for changes to take effect. Refer to the table below for details: The angle between gimbal’s orientation and aircraft’s nose remains...
  • Page 34: Dji Go App

    DJI GO app This section introduces the four main functions of the DJI GO app. © 2015 DJI. All Rights Reserved.
  • Page 35: Camera

    DJI GO app The DJI GO app is a mobile application designed specifically for the Phantom 3 Advanced. Use this app to control the gimbal, camera, and other aircraft functions. The app also features Map, Academy, and User Center, which are used for configuring your aircraft and sharing your photos and videos with others.
  • Page 36 Phantom 3 Advanced User Manual [1] Flight Mode : The text next to this icon indicates the current flight mode. Tap to configure the MC (Main Controller) Settings. These settings allow you to modify flight limits and set the gain values.
  • Page 37 Phantom 3 Advanced User Manual Shutter : Tap this button to take a single photo. Press and hold this button to select single shot, triple shot or time-lapsed shooting modes. Record : Tap once to start recording video, then tap again to stop recording. You can also press the Video Recording Button on the remote controller, which has the same functionality.
  • Page 38: Director

    “Director” from the app’s home screen. You can then select a template and a specified number of clips, which are automatically combined to create a short film that can be shared immediately. Store Tap “Store” to visit the official DJI Online Store to see the latest information about DJI products and easily buy new products. Discovery Sync pictures and videos to your mobile device, view flight logs, and check your DJI account status in "Discovery".
  • Page 39: Flight

    Flight This section describes safe flight practices and flight restrictions. © 2015 DJI. All Rights Reserved.
  • Page 40: Flight Environment Requirements

    Maximum flight altitude & Radius Limits Maximum flight altitude and radius limits may be changed in the DJI GO app. Be aware that the maximum flight altitude cannot exceed 1640 feet (500 meters). In accordance with these settings, your Phantom 3...
  • Page 41 No limits If you fly out of the limit, you can still control the Phantom 3, but cannot fly it any father. If the Phantom 3 flies out of the max radius in Ready to Fly (non-GPS) mode, it will fly back within range automatically.
  • Page 42 The value of R varies based on the definition of the restricted areas. (3) A “warning zone” has been set around the Restricted Area. When the aircraft approaches within 0.062 miles (100 m) of this zone, a warning message will appear on the DJI GO app. 100 m 100 m ©...
  • Page 43 Phantom 3 Advanced User Manual GPS Signal Strong Blinking Green Aircraft Zone Restriction DJI GO app Prompt Status Indicator Warning: You are in a No-fly Motors will not start. zone. Take off prohibited. If the aircraft enters the No-fly Zone...
  • Page 44: Preflight Checklist

    4. Gimbal is functioning normally. 5. Motors can start and are functioning normally. 6. The DJI GO app is successfully connected to the aircraft. Calibrating the Compass IMPORTANT: Always calibrate the compass in every new flight location. The compass is very sensitive to electromagnetic interference, which can produce abnormal compass data and lead to poor flight performance or flight failure.
  • Page 45: Auto Takeoff And Auto Landing

    2.When flying in a new location or in a location that is different from the most recent flight. 3.When the mechanical or physical structure of the Phantom 3 Advanced has been changed. 4.When severe drifting occurs in flight, i.e. Phantom 3 Advanced does not fly in straight line. Auto Takeoff and Auto Landing Auto Takeoff Use auto takeoff only if the Aircraft Status Indicators are blinking green.
  • Page 46: Flight Test

    There are two methods to stop the motors. Method 1: When Phantom 3 Advanced has landed, push the throttle down , then conduct the same CSC that was used to start the motors, as described above . Motors will stop immediately. Release both sticks once motors stop.
  • Page 47 Video Suggestions and Tips 1. Go through the full pre-flight checklist before each flight. 2. Select the desired gimbal operation mode in the DJI GO app. 3. Only shoot video when flying in P-mode. 4. Always fly in good weather and avoid flying in rain or heavy wind.
  • Page 48 © 2015 DJI. All Rights Reserved.
  • Page 49: Troubleshooting (Faq)

    1.2 miles (2 kilometers) away from the pilot. What app should I use with my Phantom 3? The Phantom 3 is compatible with the DJI GO app for iOS and Android, which is already used with the DJI Inspire .
  • Page 50 These controls can be changed to Mode 1 or set to a customized configuration in the DJI GO app. This is only recommended for advanced users.
  • Page 51 You may need to adjust the settings of your mobile device. Open the Settings menu, select the Privacy tab, select the Photos tab, and then toggle the switch next to the DJI GO app icon. If the GO app has not been granted access to your albums, the photos and videos cannot be synchronized.
  • Page 52 Try restarting and calibrating the IMU and compass to resolve this issue. • Sensor is defective. If the sensors remains unchanged at all time and the problem persist even when the aircraft is restarted, it indicates the sensor is not working normally. Users should return the aircraft to DJI for repairing.
  • Page 53: Appendix

    Appendix © 2015 DJI. All Rights Reserved.
  • Page 54: Specifications

    2.7K: 2704 x1520p 24/25/30 (29.97) Video Recording Modes FHD:1920x1080p 24/25/30/48/50/60 HD:1280x720p 24/25/30/48/50/60 Max. Bitrate Of Video 40 Mbps Storage FAT32/exFAT Supported File Formats Photo: JPEG, DNG Video: MP4/MOV (MPEG-4 AVC/H.264) Operating Temperature 0°C to 40°C Range © 2015 DJI. All Rights Reserved.
  • Page 55 Phantom 3 Advanced User Manual Remote Controller Operating Frequency 2.400 GHz-2.483 GHz Up to 5.0 km or 3.1 miles (unobstructed, free of interferences and FCC compliant) when it is FCC compliant Transmitting Distance Up to 3.5 km or 2.1 miles (unobstructed, free of interferences)
  • Page 56: Firmwares Update

    Use Micro SD card to update the aircraft and Intelligent Flight Battery. Connect to the Internet, launch the DJI GO app. The DJI GO app will start checking for available firmware updates automatically. Follow the on-screen instruction to update the latest firmware for the aircraft, remote controller and intelligent flight battery.
  • Page 57: Fcc Compliance

    Phantom 3 Advanced User Manual FCC Compliance FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 58 Phantom 3 Advanced User Manual susceptible d'en compromettre le fonctionnement. IC Radiation Exposure Statement: This equipment complies with IC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
  • Page 59 This content is subject to change. Download the latest version from http://www.dji.com/product/phantom-3 If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. © 2015 DJI. All Rights Reserved.
