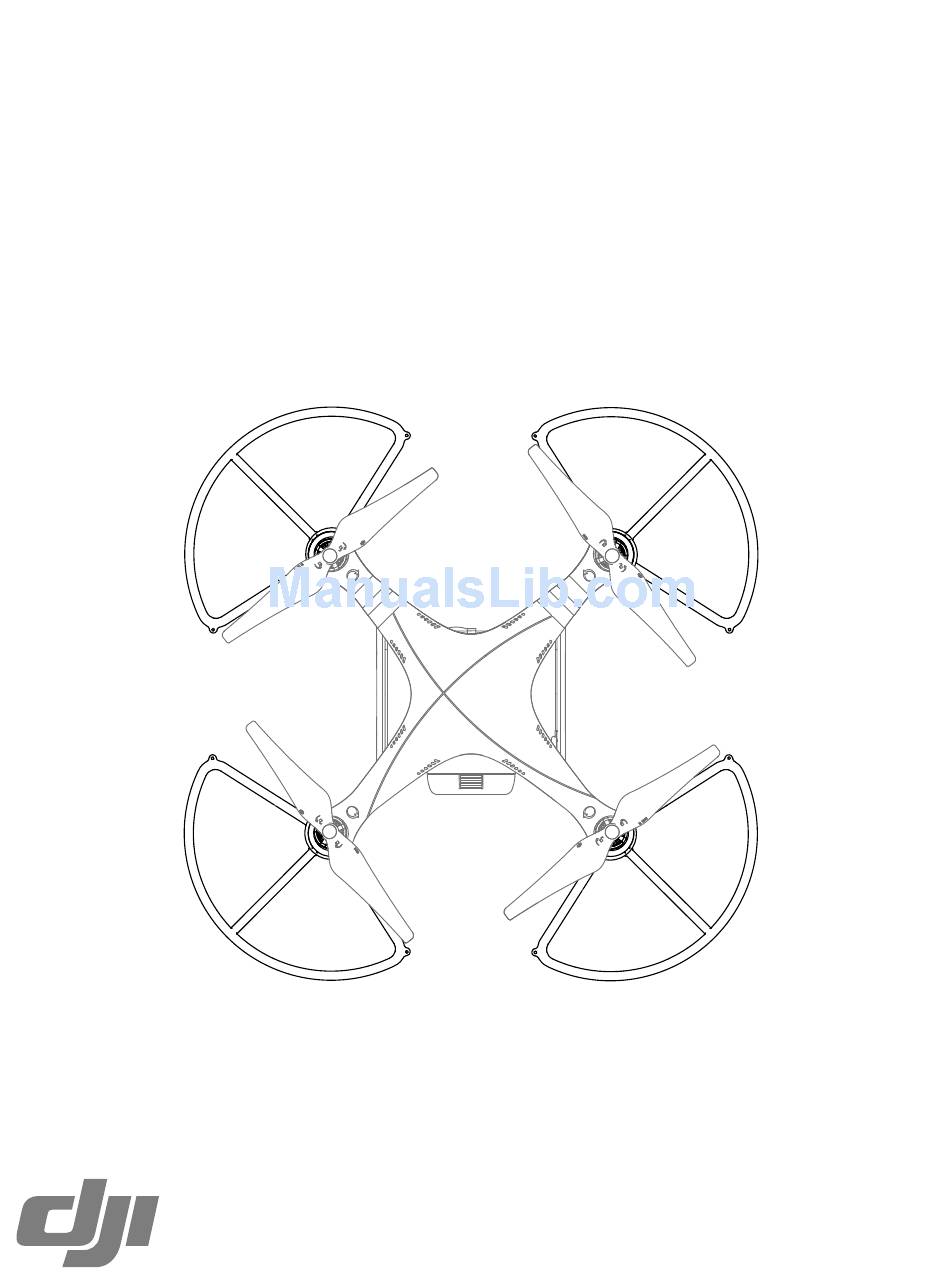

- Page 1 PHANTOM 3 Prop Guards Installation Guide...
-
Page 2: Specifications
Thread ×1 Hex Key ×1 Screws ×10 Specifications Weight (1pc) 21 g Angle 155.0° Radius 131.7 mm Installed Circumference 612 mm Installation Prepare your Phantom 3, Prop Guards (4pcs), screws (8pcs), thread and hex key. © 2015 DJI. All Rights Reserved. - Page 3 Use the hex key to remove the two outer screws under each of the four motors. Keep these original screws for when you are not using Prop Guards. © 2015 DJI. All Rights Reserved.
- Page 4 Mount all four Prop Guards onto the Phantom 3 and tighten the Prop Guard screws. Do not use threadlocker. Only use the Prop Guard screws when Prop Guards are mounted to avoid loose joints or damage to the motors. ©...
- Page 5 Prop Guards. The content is subject to change. Download the latest version from http://www.dji.com/product/phantom-3 If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. © 2015 DJI. All Rights Reserved.
