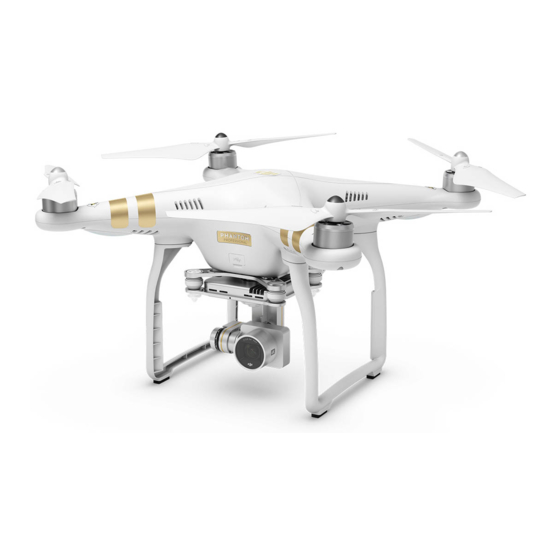

dji Phantom 3 Advanced Operation Manual
  1. Manuals
  2. Brands
  3. dji Manuals
  4. Drones
  5. Phantom 3 Advanced
  6. Operation manual

dji Phantom 3 Advanced Operation Manual

Hide thumbs Also See for Phantom 3 Advanced:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Leicester Drones
Leicester Drones
OPERATIONS MANUAL
This Operations Manual covers the following aircraft: DJI Phantom 3 Advanced
This document is a combined Safety and Operations Manual for small enterprises that covers all of the
appropriate aspects of Leicester Drones required to satisfy the requirements of National Aviation
Authorities Permissions / Exemptions for Aerial Work.
Copyright © 2016 Leicester Drones Issue 1.2 23 March 2016
DJI Phantom 3 Advanced
Document Reference: 1012201501
1.2 –
Issue:
23 March 2016
Document Author: Christian Smith
Accountable Manager: Christian Smith
www.leicesterdrones.com
Operations Manual
