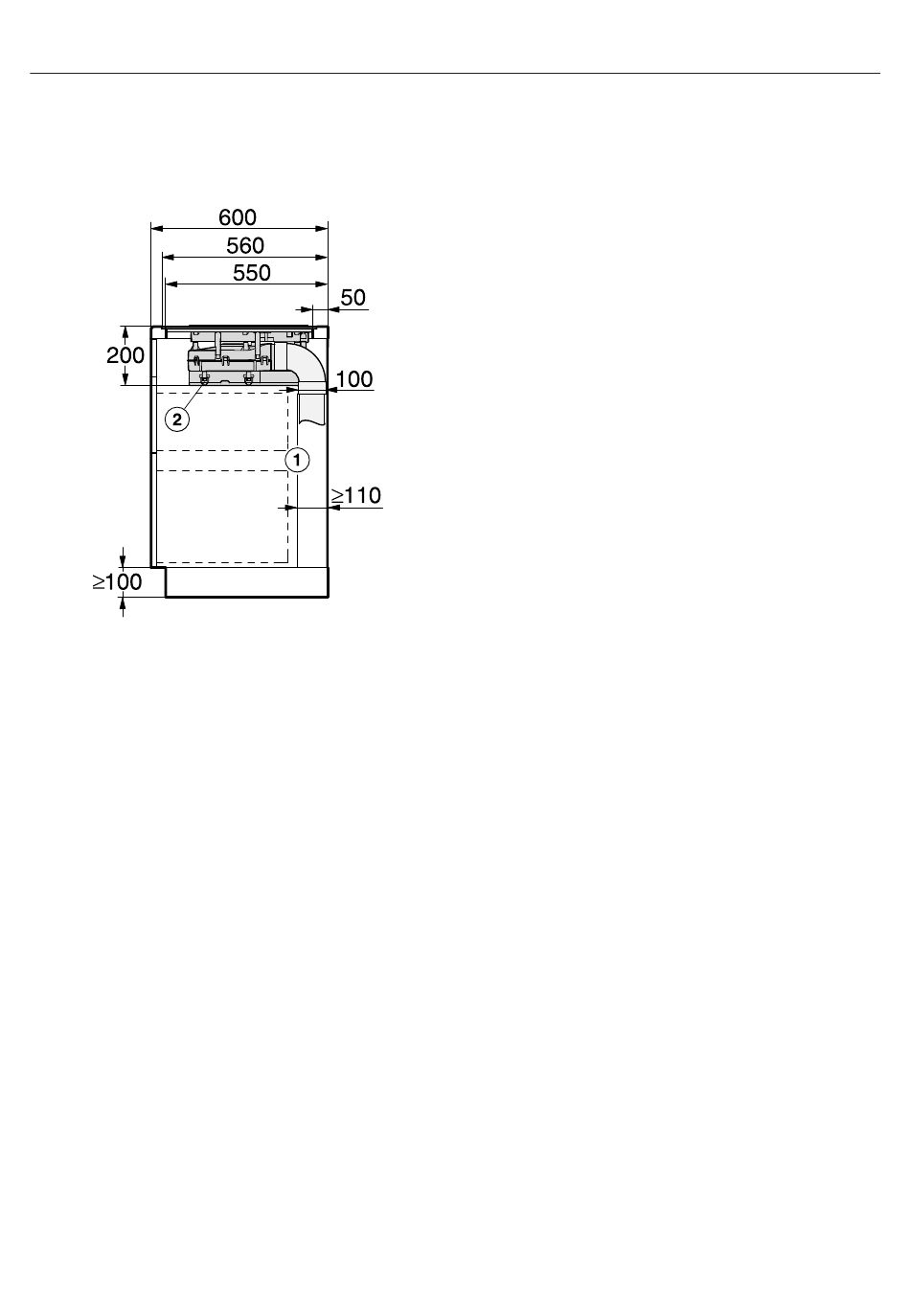

Worktop depth 600 mm
KMDA 7476 FL
All dimensions are given in mm.
a For maintenance work, it must be
possible to remove the rear cabinet
wall.
The cabinet wall and an adjoining
room wall or a piece of furniture
must be at least 110 mm
ensure sufficient room for the
exhaust ducting.
b After installation the removable drip
tray must be accessible from below.
Two quick-release catches have to
be opened at the front and rear to
remove the tray.
1
Please check dimensions of locally
available ducting as dimensions may
vary from manufacturer to
manufacturer. N.B. Ducting materials
and their installation must conform
with local and national regulations.
1
apart to
Installation
