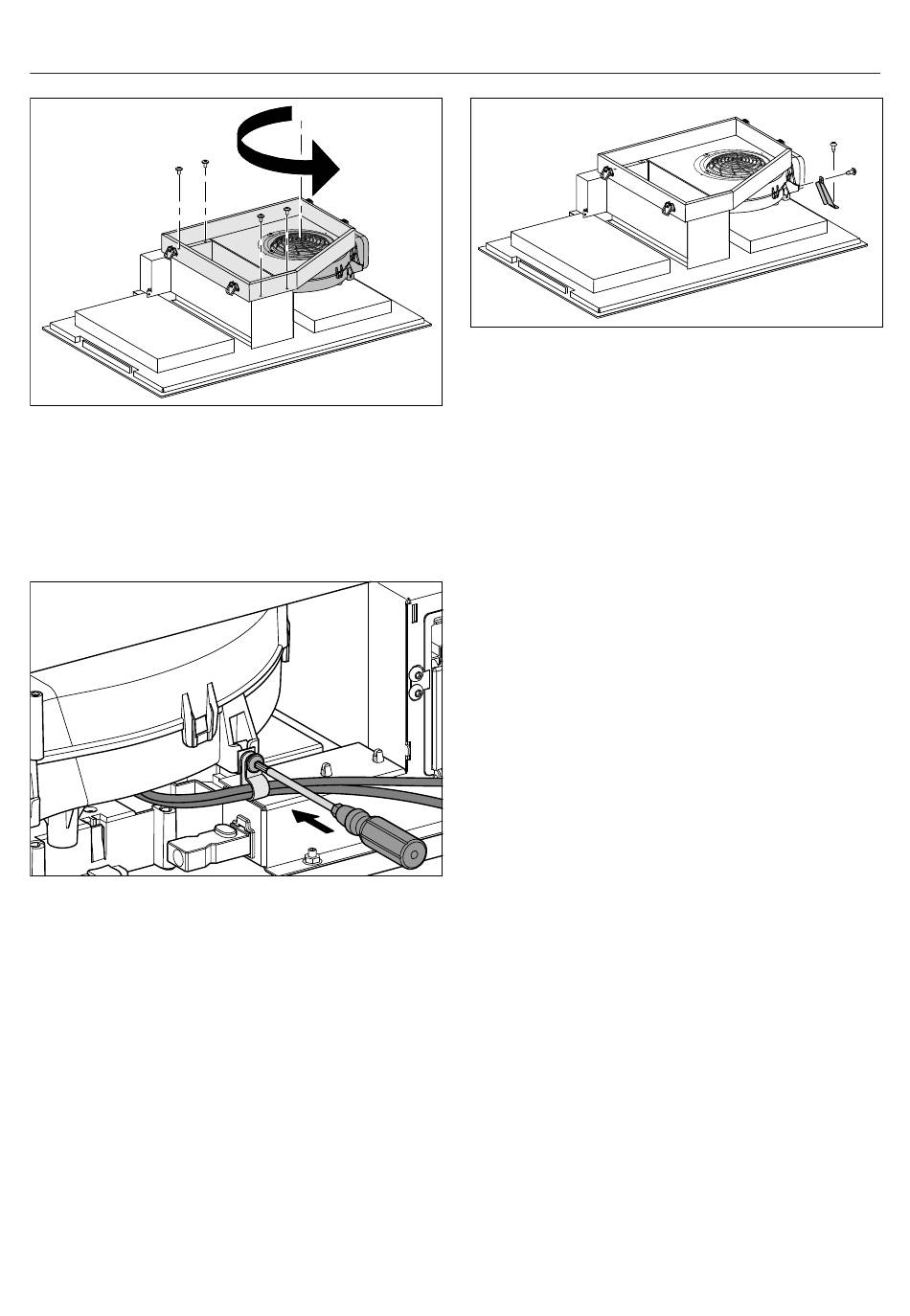

Slide the frame outwards towards the
current extraction direction and tilt up
to remove one side. Then slide in the
opposite direction to remove the
entire frame and fan. Then turn both
180°.
Guide the cable under the fan.
Reattach the cable tie.
Refit the 4 screws in the frame.
Use the bracket supplied separately
to secure the fan.
Place the drip tray onto the extractor
again and secure the tray using the
4 catches.
Installation
85
