Specifications; Package Contents - BluStream HD12DB-V2 Quick Reference Manual

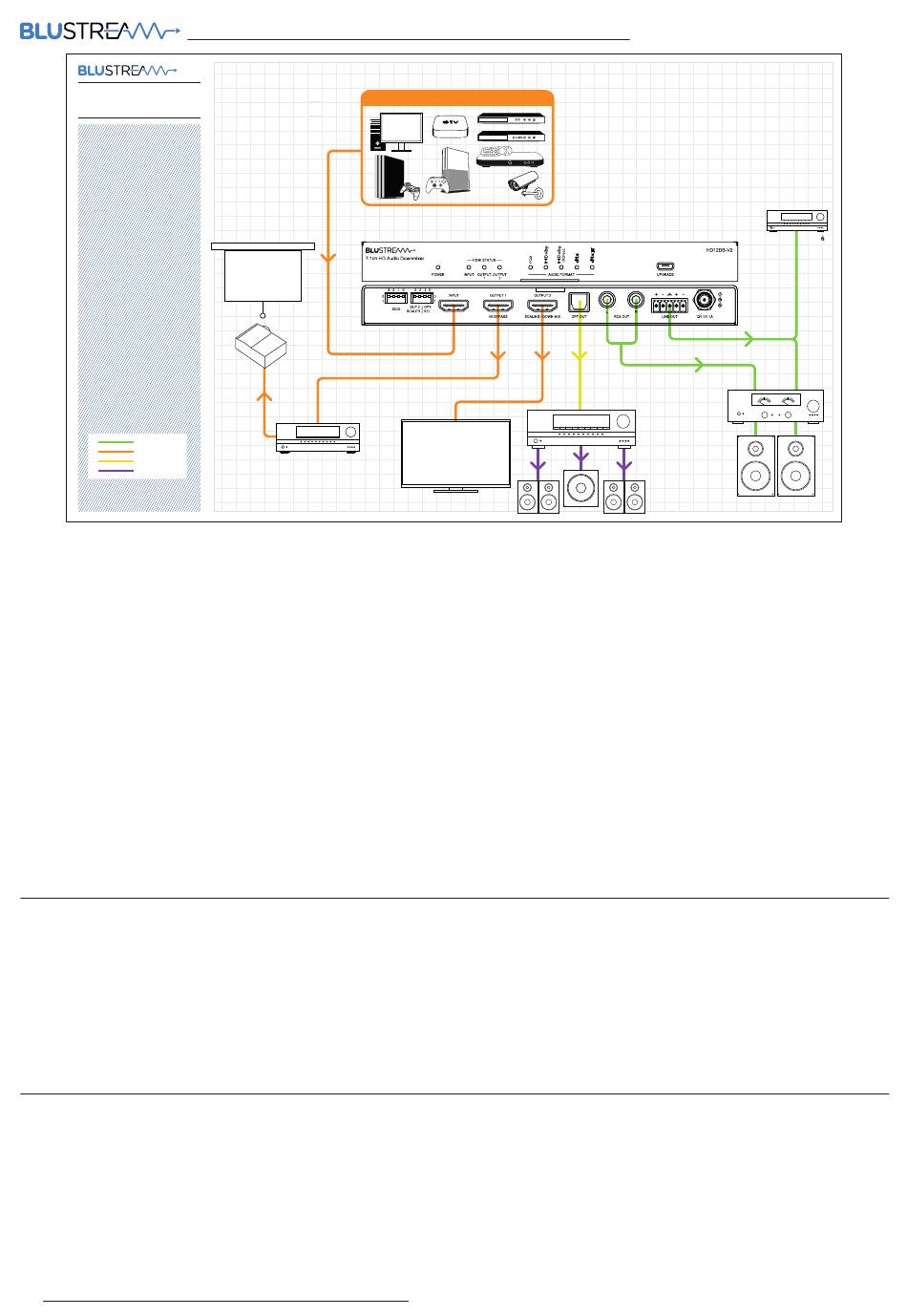

Example Schematic
HD12DB-V2
Stereo Audio
HDMI
Digital Optical
Speaker Cable

Specifications

Video Input Connectors:
Video Output Connectors:
Audio Output Connectors:
EDID Selection: 4-Pin DIP Switch
Output 2 Scaler Selection / Optical Output Selection:
Product upgrade: 1 x Micro USB female
Dimensions (W x H x D):
195mm x 21mm x 93mm
Shipping Weight:
1.0 Kg
Operating Temperature:
Storage Temperature:
- 4°F to 140°F (- 20°C to 60°C)
Power Supply:
12V/1A DC

Package Contents

• 1 x HD12DB-V2
• 1 x 12V/1A DC Power Supply
• 1 x Mounting Kit
• 4 x Rubber Feet
• 1 x Quick Reference Guide
Acknowledgements
Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation.
Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories.
All rights reserved.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS:X, and the DTS:X logo
are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS,Inc. All rights reserved.
04
1 x SOURCE (up to 4K) with 7.1ch Audio
Projector
Screen
Projector
AVR
Maintains native HDMI video
resoltuion and embedded
7.1ch audio
Dolby Atmos / DTSX Capabilities
1 x HDMI Type A, 19-pin, female
2 x HDMI Type A, 19-pin, female
1 x Optical (Toslink), 2 x RCA analogue left/right, 1 x 5-Pin Phoenix balanced/unbalanced left/right
32°F to 104°F (0°C to 40°C)
Output 2
Downscaled 1080p video resolution
with 2.0ch downmixed audio
4-Pin DIP Switch
www.blustream.com.au
HD12DB-V2 QUICK REFERENCE GUIDE
Downmixed 2ch optical
audio or 5.1ch passthrough
Down-mixed 2ch L/R analogue audio
| www.blustream-us.com |
Ampli er
www.blustream.co.uk
