Fiber Solution
NetWaySP4P Series
Fiber Optic Transceivers with
Built-in Power Supplies
Models Include:
NetWaySP4P
- 4-port Fiber Optic Transceiver with Built-in Power Supply for
Composite Fiber (Powered) Cable
NetWaySP4P2
- 4-port Fiber Optic Transceiver with Power-Limited Outputs for
Composite Fiber (Powered) Cable
Installation Guide
DOC#: NETSP Rev. 020217
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
More than just power.
TM
Advertisement
Table of Contents
Related Manuals for Altronix NetWaySP4P Series
Summary of Contents for Altronix NetWaySP4P Series

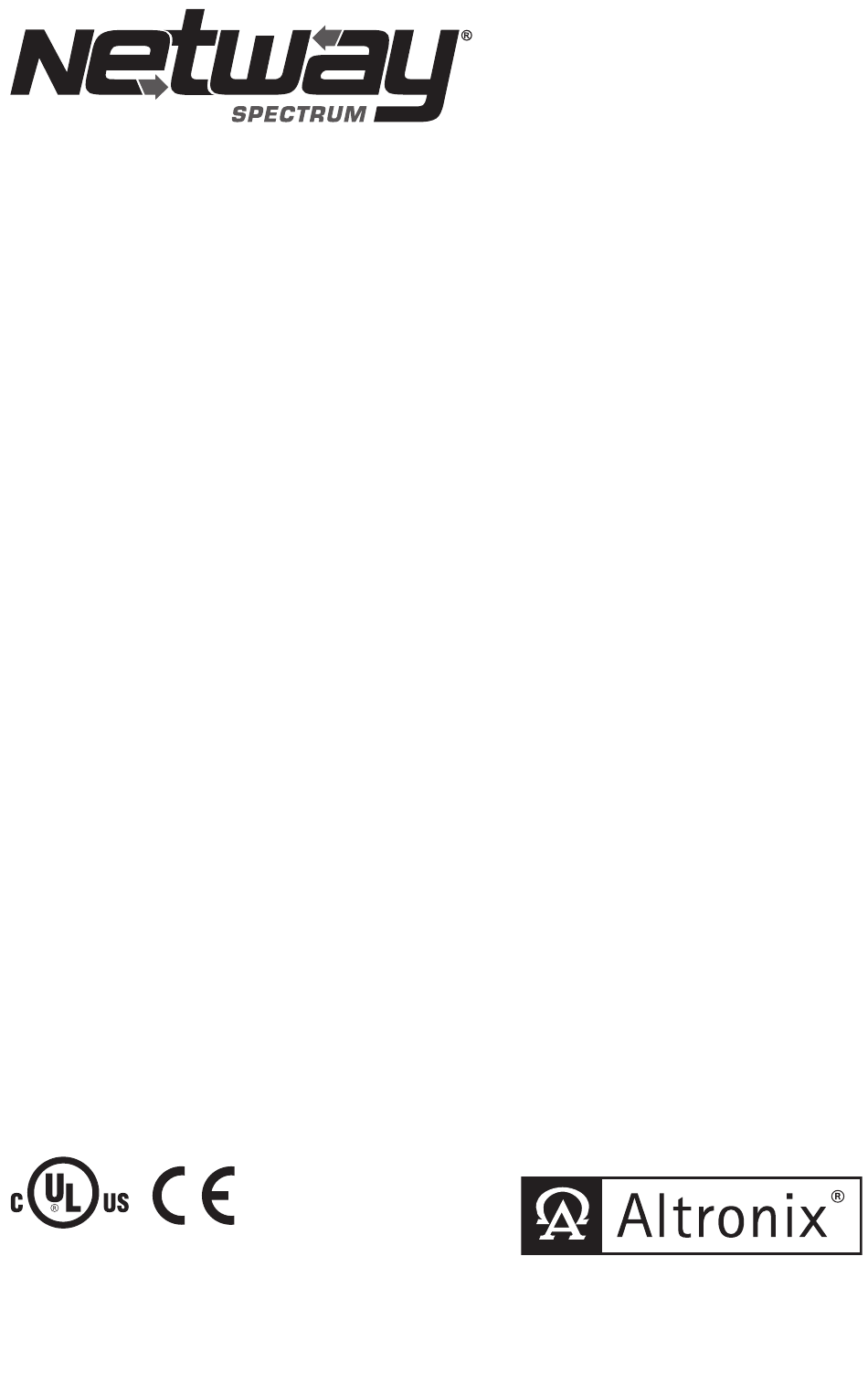

- Page 1 Fiber Solution NetWaySP4P Series Fiber Optic Transceivers with Built-in Power Supplies Models Include: NetWaySP4P - 4-port Fiber Optic Transceiver with Built-in Power Supply for Composite Fiber (Powered) Cable NetWaySP4P2 - 4-port Fiber Optic Transceiver with Power-Limited Outputs for Composite Fiber (Powered) Cable Installation Guide More than just power.
-
Page 2: Table Of Contents
Recommended Altronix SFP Modules ........ -
Page 3: Overview
Overview: Altronix NetWaySP4P/NetWaySP4P2 Fiber Optic Transceivers provide four (4) 1Gb SFP ports and four (4) ports for up to 120W per port to be transmitted over composite fiber (powered) cable (fiber + copper combined) to NetWay Spectrum PoE Hardened Switches. NetWaySP4P/NetWaySP4P2 can be used for standard fiber cable applications as well. -
Page 4: Recommended Altronix Sfp Modules
(Fig. 2h, pg. 4). Note: When batteries are not used, a loss of AC will result in a loss of output voltage. Recommended Altronix SFP Modules: Altronix P1MM, P1SM10, P1AB2K and P1GCE are hot-pluggable SFP fiber transceiver modules and are readily usable with all Altronix Spectrum fiber optic equipment for 1Gb transmission rates. -
Page 5: Typical Applications
NetWaySP4P / NetWaySP4P2 Installation Guide - 5 -... -
Page 6: Technical Specifications
Technical Specifications: Parameter Description Number of Ports Four (4) Gigabit SFP Ports and Four (4) Gigabit (1000Mbps) Ethernet Ports. NetWaySP4P: Four (4) 56VDC non power-limited outputs 120W max. Power Outputs NetWaySP4P2: Four (4) 56VDC power-limited outputs @ 60W each. Input power requirements 115VAC, 60Hz, 3.25A or 230VAC, 50/60Hz, 2.0A. Operating Ambient Temperature (120W): –... - Page 7 Notes: NetWaySP4P / NetWaySP4P2 Installation Guide - 7 -...
-
Page 8: Mounting Options
Rubber Pad Four (4) rubber pads. Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty...
