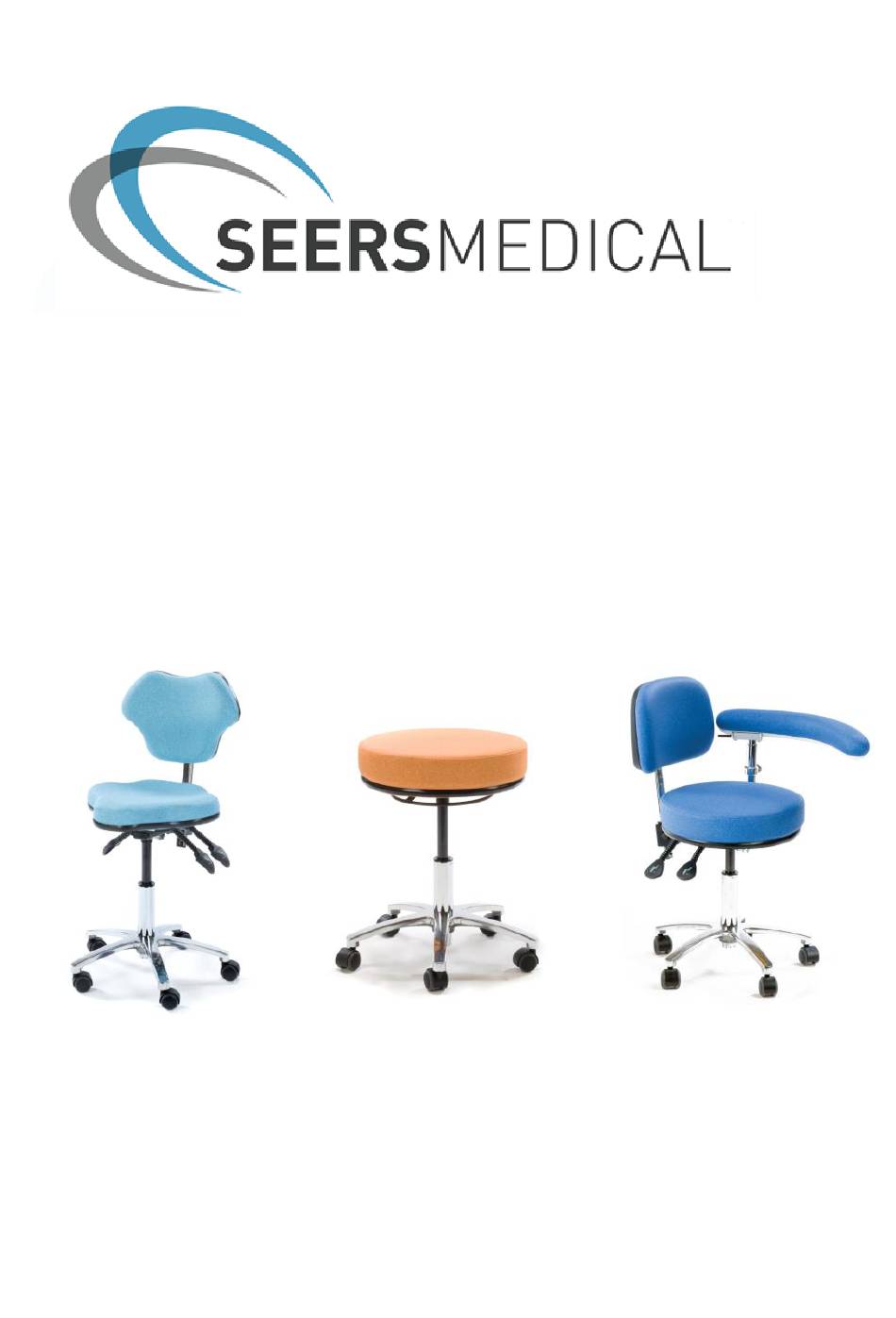

- Page 1 OPERATING INSTRUCTIONS Medical Seating User Manual Medical Seating User Manual Version 2 26/07/2017...
- Page 2 This instruction manual covers the following SEERS Medical products: MC6168/69 MC6164/65 MC6166/67 MC6107/08 MC6144/45/47 MC7212/13 MC6178/79 MC6158/59 MC6111/12/13/14/15/16 MC6160/61/62/63 ST6100/6101/6102 ST6103/6104 ST6109...
- Page 3 INDEX 1. GENERAL INFORMATION – WARNINGS & CAUTIONS 2. COMPONENT CHECKLIST AND ASSEMBLY INSTRUCTIONS 3. HOW TO USE – OPERATING INSTRUCTIONS 4. CLEANING INSTRUCTIONS 5. MAINTENANCE 6. WARRANTY Medical Seating Range – OPERATING INSTRUCTIONS PAGES ISSUE DATE 05-07-2017...
-
Page 4: General Information
GENERAL INFORMATION. CONGRATULATIONS on the purchase of your SEERS MEDICAL Product. If these operating instructions are adhered too, this product will provide many years of safe use. IF THESE OPERATING INSTRUCTIONS ARE NOT FOLLOWED - YOUR WARRANTY COULD BE INVALID! Always keep these Operating Instructions available for reference. -
Page 5: Component Checklist
2. COMPONENT CHECKLIST AND ASSEMBLY INSTRUCTIONS Component Checklist 5 x CASTORS - PRE FITTED TO 1 x 5 STAR BASE 1 x GAS CYLINDER & SHROUD (If applicable) 1 x FOOT RING/REST (If applicable) 1 x SEAT BASE/PAD WITH MECHANISM PRE ATTACHED 1 x BACKREST WITH BACK BAR PRE ATTACHED (if applicable) If you have requested arms on your Medical Seating product, we will try to supply the arms pre- attached, if this isn’t possible please see below Assembly Instructions on how to fit. - Page 6 3. HOW TO USE – OPERATING INSTRUCTIONS CAUTION! The chair is fitted with Soft Wheel Restraint castors as standard. If the flooring is of a different type (ie carpet) a different castor may be more suitable. Operating Instructions 2 Lever mechanism: Lever 1 operates the backrest angle adjustment, lift the lever to allow movement of backrest and lock the lever to fix the backrest in desired position.
- Page 7 Heavy duty mechanism: Lever 1 operates the backrest angle adjustment, lift the lever to allow movement of backrest and lock the lever to fix the backrest in desired position. Lever 2 is used to adjust the angle of the seat pad, lift the lever to allow adjustments to be made, and press the lever back down to lock angle once comfortable.
- Page 8 Lumbar Pump: Adjust the lumbar support by inflating or deflating until comfortable 360° Swing around arm: The height of the swing around arm can be adjusted via the locking knob, loosen this to raise/lower the arm and then tighten when at the desired height.
-
Page 9: Cleaning Instructions
4. CLEANING INSTRUCTIONS WARNING! DO NOT SATURATE PRODUCT WHEN CLEANING IF PRODUCT GETS SATURATED DURING CLEANING, THIS COULD ACCELERATE CORROSION, REDUCING THE PRODUCTS LENGTH OF SERVICE. CARE AND CLEANING - FABRIC Vacuum your fabrics regularly to prevent build-up of dust and dirt on the fabric surface. ... - Page 10 CARE AND CLEANING - VINYL • The vinyl should be cleaned periodically in order to maintain its appearance and prevent build-up of dirt and contaminants. • Any stain, spills, or soiling should be cleaned up promptly to prevent the possibility of permanent staining. •...
-
Page 11: Maintenance
Check hydraulic pump (hydraulic variant only) for smooth operation and any signs of 6. WARRANTY SEERS MEDICAL Limited standard terms and conditions apply to this device. A copy of this is available upon request. This contains full details of warranty terms and does not affect your statutory rights. - Page 12 mark on this product demonstrates conformity with the Medical Device Directive 93/42/EEC.
