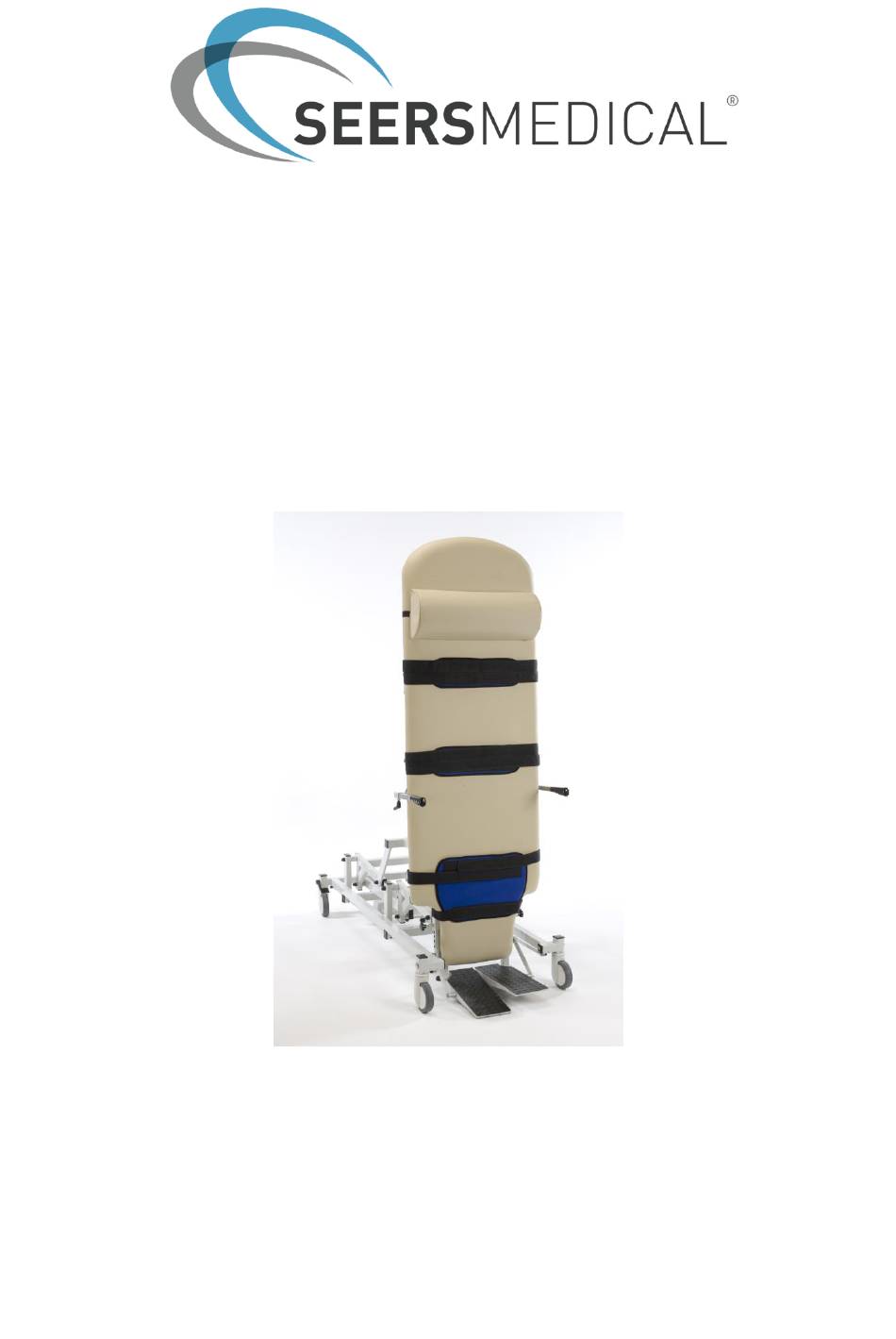

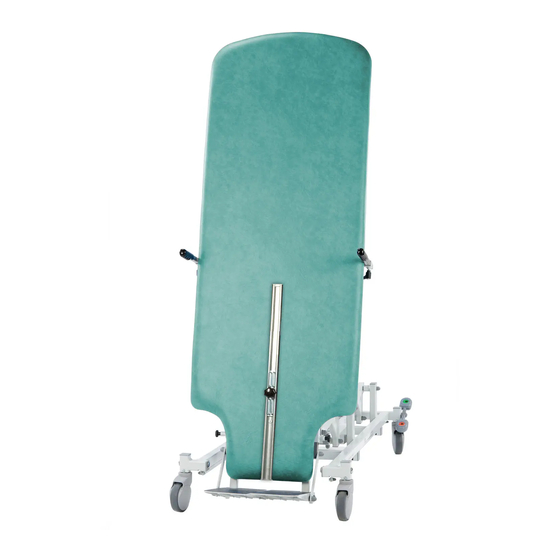

- Page 1 OPERATING INSTRUCTIONS SEERS Tilt Tables Model No.’s: ST7640, ST7640DL, ST7641, ST7641DL, ST7647, ST7647DL, ST7650, ST7651, SM7677 DOC No. 03-007-UM ISSUE 2...
- Page 2 INDEX 1. GENERAL INFORMATION – WARNINGS & CAUTIONS 2. HOW TO USE – a. WHEEL SYSTEM b. ADJUSTING THE HEIGHT OF THE COUCH c. APPLYING TILT TO THE COUCH d. ALTERING THE BACK REST ANGLE e. ADJUSTING THE FOOTBOARD ANGLE f.
-
Page 3: General Information
01/03/2016 1. GENERAL INFORMATION. CONGRATULATIONS on the purchase of your SEERS MEDICAL Product. If these operating instructions are adhered too, this product will provide many years of safe use. IF THESE OPERATING INSTRUCTIONS ARE NOT FOLLOWED - YOUR WARRANTY COULD BE INVALID! Always keep these Operating Instructions available for reference. - Page 4 CAUTIONS! Cautions identify circumstances which if not followed correctly, could result in failure or damage of the equipment! Attention refer to these Operating Instructions for further information 2. HOW TO USE. a. WHEEL SYSTEM WARNING! This Couch is not designed for patient transportation Ensure Wheels are Locked prior to patient transfer or treatment.
-
Page 5: Adjusting The Footboard Angle
To adjust the height of the couch, simply press the raise or lower button of the top button indicated by the symbol, until desired height is achieved. Once the button is released the couch height is locked in that position ready for use. c. - Page 6 1. To adjust the angle of the footboard, first ensure the patient is not standing on the footboard. 2. Pull the release knob outward and lift or lower the footboard to the desired angle. 3. On releasing the knob, the pin should click into the next available hole position and lock in that new position.
- Page 7 Always ensure that the straps and harnesses are in the correct position and that the patient is fully secure before operating the tilt facility. Only use straps/harnesses supplied by SEERS Medical Ltd. The Standard Tilt Tables are supplied with the following Fixation Strap Set ( 6062 ):...
- Page 8 Always ensure that the straps and harnesses are in the correct position and that the patient is fully secure before operating the tilt facility. Only use straps/harnesses supplied by SEERS Medical Ltd. The Split Leg Tilt Tables are supplied with the following Fixation Strap Set (6063): The 6063 Strap set comprises of 2 x 6066 and 2 x 6064.
-
Page 9: Optional Accessories (Not Included)
Individual Knee Harnesses - Pair 6064 Individual Narrow Belts – Pair 6066 The 6063 strap set comprises of a pair of individual Knee Harnesses which can only be used in conjunction with the Divided Leg upholstery models ST7641DL & ST7647DL The straps of each individual 6064 Knee Harness must be passed between the aluminium channel and the upholstery and then pulled via the edge of the upholstery to the front of the table where it can be fastened onto the Knee Harness itself. -
Page 10: Cleaning Instructions
1. Locate the pommel onto the dividing rail channel and slide to the desired height. 2. Secure by tightening the locking knob once in the desired position. 3. CLEANING INSTRUCTIONS WARNING! Disconnect the couch from the mains power supply prior to carrying out any cleaning or decontaminating. - Page 11 Coffee, tea etc spills: Use an absorbent white cloth or piece of paper. DO NOT RUB. Allow the stain to be absorbed and removed from the material surface. Then rub gently with white tissue paper in circular movements to remove any remaining dampness and residue.
- Page 12 If DECONTAMINATING the couch then repeat steps above using a dilute Hypochlorite & warm water mixture (mixed at 10,000ppm) instead of warm water and soap. It is crucial that any staining is treated as soon as possible but never later than 24 hours.
-
Page 13: Maintenance
Chemical disinfection can be achieved following washing. Wipe equipment over using NaDCC 1,000 ppm av/chl. Air Dry After cleaning / disinfection the straps should be thoroughly inspected prior to patient use. If deterioration is present or the Velcro fails to maintain integrity, the straps must be replaced. 4. -
Page 14: Warranty
Check mains plug connections are tight and the correct fuse is fitted. 5. WARRANTY SEERS MEDICAL Limited standard terms and conditions apply to this device. A copy of this is available upon request. This contains full details of warranty terms and does not affect your statutory rights. -
Page 15: Troubleshooting
As part of our ongoing development programme SEERS MEDICAL Limited reserves the right to alter or modify specifications and materials without prior notice. 6. TROUBLESHOOTING Fault Possible Cause Solution Electrical functions not working Mains cable has become disconnected, Locate control box and see whether the power light... -
Page 16: Technical Data
Mechanical faults Squeaking or grinding noise An over tight pivot point either a bolt or Locate the noisy pivot point, then slacken the pin is not rotating freely. securing nut by ¼ turn and lubricate until noise reduces. Wheels will not raise or lower Couch is not on level floor Level couch by adjusting the adjustable foot if fitted. - Page 17 CERTIFIED TO CSA STANDARD C22.2 No 60601-1 mark on this product demonstrates conformity with the Medical Device Directive 93/42/EEC. 3154358 The Control box used on this SEERS Medical Product is a Recognized Component SEERS MEDICAL Limited DOC No. 03-007-UM ISSUE 2...
- Page 18 Kenton Road Debenham Suffolk IP14 6LA t: +44 (0)1728 861590 f: +44 (0)1728 861868 info@seersmedical.com w: www.seersmedical.com © SEERS MEDICAL Limited 2017 mark on this product demonstrates conformity with the Medical Device Directive 93/42/EEC. DOC No. 03-007-UM ISSUE 2...
