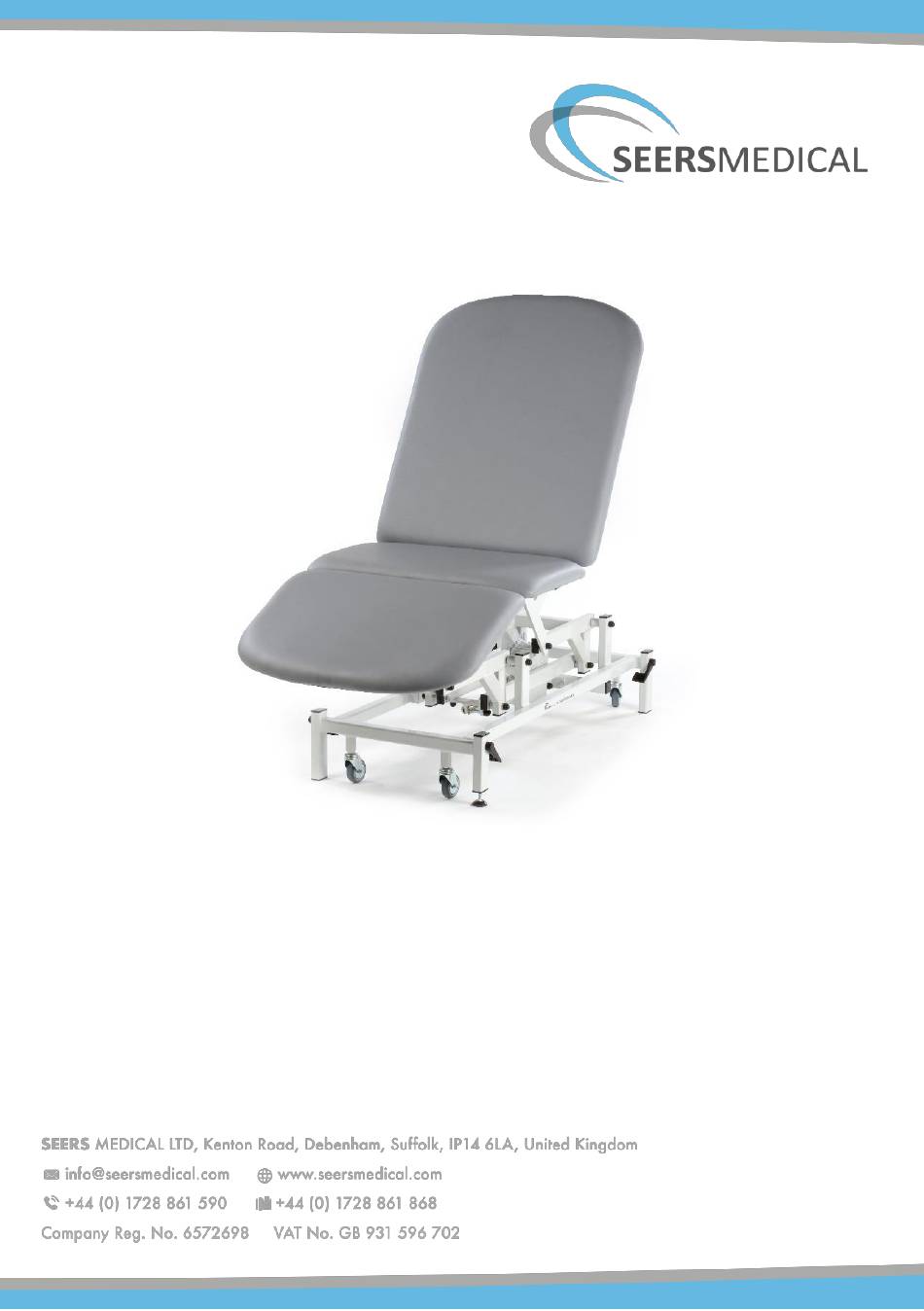

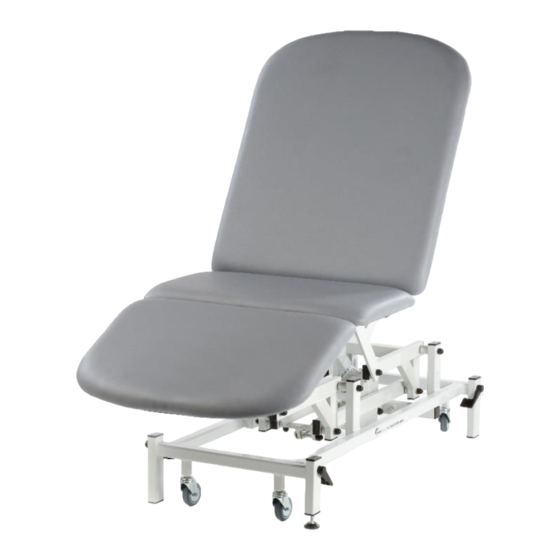

  • Page 1 Instructions for Use Bariatric Couches 03-1007-UM-EN | ISSUE 1...
  • Page 2 WARNING To avoid injury, always read this Instructions for Use and accompanied documents before using the product. Mandatory to read the Instructions for Use...
  • Page 3 This Instructions for Use document applies to the following products: Medicare Bariatric 2 Section SM2573, SM2673, SM4542, SM4642, SM4542W, SM4642W Therapy Bariatric 2 Section ST2573, ST2673 Medicare Bariatric 3 Section SM3573, SM3673 Therapy Bariatric 3 Section ST3573, ST3673 Medicare Bariatric Drop End...
  • Page 4 INDEX 1. General Information – Intended Use, Warnings & Cautions 2. How to Use Wheel system - retractable Adjustable foot levelling Wheel system - Large Mobile Wheel Design Adjusting the height of the couch Adjusting the backrest & foot section Double or triple footswitch Adjustment of fold down arms Arm loops...

  • Page 5: General Information

    1. General Information CONGRATULATIONS on the purchase of your new SEERS MEDICAL product. If these operating instructions are adhered to, the product will provide many years of safe use. If these operating instructions are not followed, your warranty could be invalid! Always keep these Instructions for Use available for reference.
  • Page 6 WARNINGS! Warnings identify potential hazards which if not followed correctly, could result in serious injury, or possibly death! • Ensure electric couches are not used in the presence of flammable gasses such as an anaesthetic agent. • DO NOT EXCEED the Maximum Safe Working Load of the product. •...
  • Page 7 2. How To Use a. Wheel System - Retractable Wheel Design Lever Down Lever Up Wheels ENGAGED and ON Wheels RETRACTED and OFF WARNING! This product is not designed for patient transportation. Ensure wheels are retracted/locked prior to patient transfer or treatment. Disconnect the electric lead prior to re-locating the product, ensuring the lead is not trapped in the mechanism.

  • Page 8: Adjustable Foot

    b. Adjustable Foot CAUTION! Ensure Wheels are retracted before adjusting the adjustable foot. • Ensure the wheels are retracted and off. • Adjust the foot by turning clockwise or anti -clockwise until the couch is stable on all legs. • Secure the foot by tightening the nut until it locks against the threaded cap.
  • Page 9 Adjusting the Height of the Couch Hand Switch Foot Switch Raising the Couch • To elevate the couch, push the UP button on the hand or foot switch. • Once the desired height is achieved, release the button. • On releasing the button, the couch is locked at the desired position. Lowering the Couch •...
  • Page 10 Adjusting the backrest & footrest To adjust the backrest, simply press the raise or lower button of the middle button indicated by the symbol, until desired angle is achieved. Once the button is released, the section is locked in that position, ready for use. f.

  • Page 11: Paper Roll Holder

    Adjustment of Fold Down Arms (Optional) To raise or lower the armrest, simply swing into the up or down position. Adjusting the Angle of the Arms in the Down Position The angle in the down position can be adjusted by rotating the adjusting barrel on the underside of the arm, until the desired angle is achieved.
  • Page 12 j. Side Supports & Rails (Optional) WARNING! Children must not play with the couch at any time. Adequately supervise children in the proximity of the couch. Ensure the Side Support Rails are Fully Engaged into Socket, prior to use. To Raise the side support rail, simply lift and rotate 180 degrees, and then engage fully into socket.
  • Page 13 k. Upper Limb Support 1. To adjust position of Arm Support Pad, undo the locking clamp on underside of pad anticlockwise. 2. Once loosened, move pad to desired position and re-tighten locking clamp to secure. 3. If height adjustment is required, undo the locking clamp on the vertical stem.

  • Page 14: Cleaning Instructions

    Cleaning Instructions WARNING! Disconnect the couch from the mains power supply prior to carrying out any cleaning or decontaminating. DO NOT SATURATE PRODUCT! IF THE PRODUCT GETS SATURATED DURING CLEANING, THIS COULD ACCELERATE CORROSION, REDUCING PRODUCTS LENGTH OF SERVICE. General Cleaning To get rid of any dust or marks on the surface the Faux Leather MUST be wiped DAILY with a moist soft cotton cloth.
  • Page 15 Ink, Ball point pen, Denim, hard stains Rub the stain by means of gentle circular movements with tissue dampened with 96°alcohol and water (1:1) After this rub the surface with gentle circular movement with tissue paper to dry it. Butter, oil, grease stains Wipe excess butter, oil or grease off the surface with a clean 100% Cotton white dry cloth.
  • Page 16 If DECONTAMINATING the couch then repeat steps above using a dilute Hypochlorite & warm water mixture (mixed at 10,000ppm) instead of warm water and soap. It is crucial that any staining is treated as soon as possible but never later than 24 hours.

  • Page 17: Maintenance

    4. Maintenance WARNING! Disconnect the couch from the mains power supply prior to carrying out any maintenance. All electrical maintenance should be performed by a suitably qualified person. BLUE or BROWN wires must not be connected to any earth terminal. Actions to be done by clinician Daily Weekly...
  • Page 18 Actions to be done by qualified personnel Once a year • Carry out a full test of all electrical couch positioning functions (backrest, height, etc.) • Check operation of the backrest/footrest. Check gas struts operate smoothly and correctly throughout all ranges of movement.
  • Page 19 5. Warranty and Product Lifetime SEERS MEDICAL Limited standard terms and conditions apply to this device. A copy of this is available upon request. This contains full details of warranty terms and does not affect your statutory rights. For any further information on this product, regarding spares, warranty,...

  • Page 20: Troubleshooting

    6. Troubleshooting Fault Possible Cause Solution Electrical functions Mains cable has become Locate control box and see whether not working disconnected, either the power light is illuminated and correctly from the wall socket or that the lead is connected at both the control box ends.
  • Page 21 Mechanical faults Squeaking or An over tight pivot point Locate the noisy pivot point, then grinding noise either a bolt or pin is not slacken the securing nut by ¼ turn rotating freely. and lubricate until noise reduces. Wheels will not raise Couch is not on level Level couch by adjusting the or lower...
  • Page 22 7. Technical Data – Medicare Bariatric 2 Section Index / Model Configuration Wheel System Retractable Wheel Design Large Mobile Wheel Design Width 80cm 105cm 125cm 80cm 105cm 125cm Elevation Control Electric Overall Length 203cm Minimum Height 45cm Maximum Height 98cm Head Section Angle 0˚...
  • Page 23 Technical Data – Therapy Bariatric 2 Section Index / Model ST2573 ST2673 Configuration Wheel System Retractable Wheel Design Large Mobile Wheel Design Width 80cm Elevation Control Electric Overall Length 203cm Minimum Height 45cm Maximum Height 98cm Head Section Angle 0˚ to +75˚ Safe Working Load 325kg Upholstery covering...
  • Page 24 Technical Data – Medicare Bariatric 3 Section Index / Model SM3573 SM3673 Configuration Retractable Wheel Large Mobile Wheel Wheel System Design Design Width 80cm Elevation Control Electric Overall Length 196cm Minimum Height 45cm Maximum Height 98cm Head Section Angle -20˚ to +75˚ Foot Section Angle 0˚...
  • Page 25 Technical Data – Therapy Bariatric 3 Section Index / Model ST3573 ST3673 Configuration Retractable Wheel Large Mobile Wheel Wheel System Design Design Width 80cm Elevation Control Electric Overall Length 196cm Minimum Height 45cm Maximum Height 98cm Head Section Angle -20˚ to +75˚ Foot Section Angle 0˚...
  • Page 26 Technical Data – Medicare Bariatric Drop End SM3583 SM3584 Index / Model Configuration Foot Section Style Single Dual Wheel System Retractable Wheel Design Width 85cm Elevation Control Electric Overall Length 185cm Minimum Height 50cm Maximum Height 105cm Head Section Angle 0˚...
  • Page 27 Technical Data – Therapy Deluxe Bobath ST4642 ST4642W Index / Model Configuration Wheel System Large Mobile Wheel Design Width 105cm 125cm Elevation Control Electric Overall Length 203cm Minimum Height 46cm Maximum Height 100cm Head Section Angle 0˚ to +75˚ Safe Working Load 325kg Upholstery covering Mundial vinyl: 88% PVC, 12% cotton...

  • Page 28: Environmental Protection

    Electrical Technical Data Linak Ti-Motion Control Box 100 - 240V, 50/60Hz 100 - 240VAC, 50/60Hz, 2500mA Output 120W 32V, 128VA, Standby power 0.5W Duty Cycle 10% max, 2 min ON / 18 min OFF Mains Plug Fuse Rt 5.0A x 1- (UK) IP RATING IPX 6 washable...
  • Page 29 Symbols Double Insulated (Class Safe working load Alternating current (a.c.) Manufacturer Total weight of the Manufacturing date equipment including its safe working load Complies with the Caution/Warning European Regulatory affair Serial number Refer to instructions For Type B applied part. Model number Waste Electrical and Electronic Equipment...
  • Page 30 UNITED KINGDOM t: +44 (0)1728 861590 f: +44 (0)1728 861868 e: info@seersmedical.com w: www.seersmedical.com © SEERS MEDICAL Limited 2023 Advena Limited. Tower Business Centre, 2 Flr. Tower Street, Swatar, BKR 4013 Malta. mark on this product demonstrates conformity with MDR...
