Summary of Contents for Seers Medical ST6100

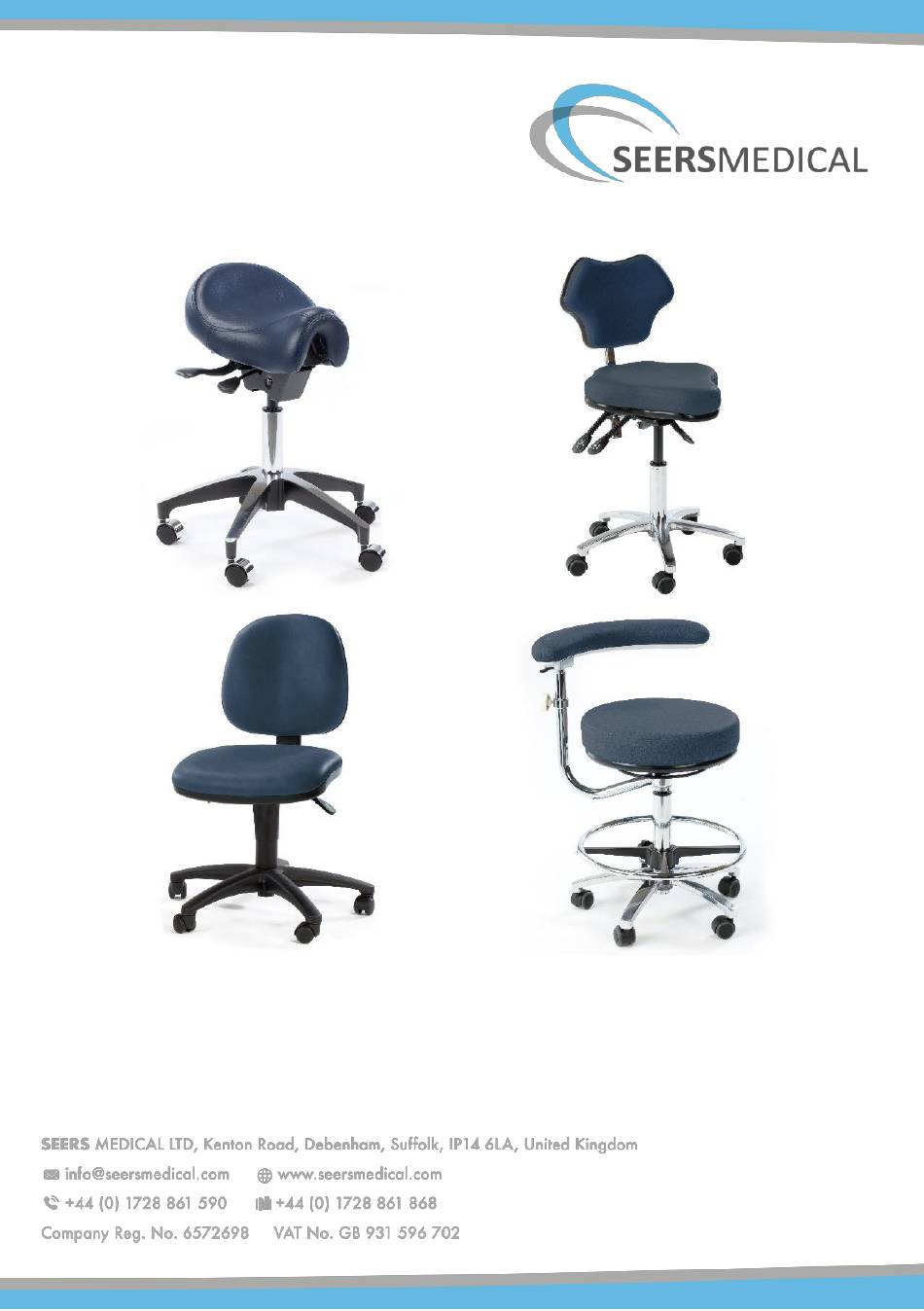

- Page 1 Instructions for Use Seating Range 03-1010-IFU-EN | ISSUE 1...
- Page 2 WARNING To avoid injury, always read this Instructions for Use and accompanied documents before using the product. Mandatory to read the Instructions for Use...

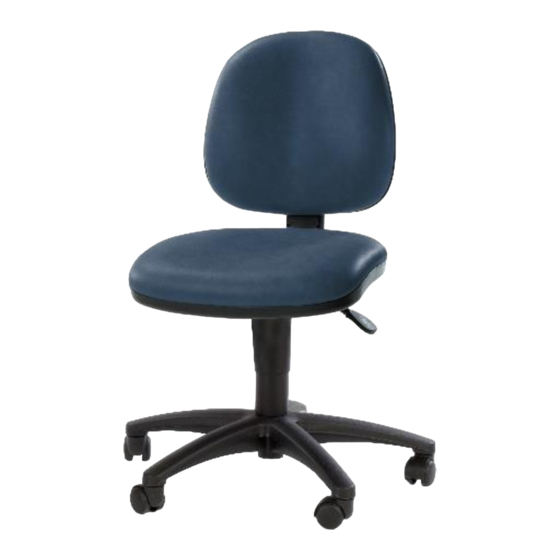

- Page 3 This Instructions for Use document applies to the following products: Operators Chair Proximity Stool ST6100, ST6101 MC6105 Operators Stool Ergonomic Saddle Stool ST6103, ST6104 MC6144, MC6145 Keyhole-Shaped Stool Hydraulic Phlebotomy Chair ST6109 MC6154, MC6155 Economy Sonographer’s Chair Surgeons & Sonographer’s Chair...
- Page 4 INDEX 1. General Information – Intended Use, Warnings & Cautions 2. How to Use a. Component Checklist b. Assembly c. Operating Instructions 2 Lever Mechanism 3 Lever Mechanism Ring Mechanism Saddle Stool Mechanism 360° Swing around arm 3. Cleaning Instructions 4.
-
Page 5: General Information
1. General Information CONGRATULATIONS on the purchase of your new SEERS MEDICAL product. If these operating instructions are adhered to, the product will provide many years of safe use. If these operating instructions are not followed, your warranty could be invalid! Always keep these Instructions for Use available for reference. - Page 6 WARNINGS! Warnings identify potential hazards which if not followed correctly, could result in serious injury, or possibly death! • DO NOT EXCEED the Maximum Safe Working Load of the product. • The safe working load is identified on the safe working load label. •...
- Page 7 2. How To Use a. Component Checklist • 5x Castors - These should already be pre-fitted to the chair/stool base. • 1x Gas cylinder • 1x Gas lift shroud (if applicable). • 1x Foot ring/rest (if applicable). • 1x Seat base/pad with mechanism pre attached. •...
- Page 8 b. Assembly 1. Place the 5 star base with castors pre attached, onto the floor, place the gas cylinder into the base with the piston facing upwards. 2. Place the Cylinder shroud (if applicable) over the Cylinder, Narrow end 3. Fit the seat base/pad and mechanism to the cylinder. 4.
- Page 9 c. Operating Instructions CAUTION! The chair is fitted with Soft Wheel Restraint castors as standard. If the flooring is of a different type (i.e. carpet) a different castor may be more suitable. 2 Lever Mechanism: Lever 1 operates the backrest angle adjustment, lift the lever to allow movement of backrest and lock the lever to fix the backrest in desired position.
- Page 10 3 Lever Mechanism: Lever 1 operates the backrest angle adjustment, lift the lever to allow movement of backrest and lock the lever to fix the backrest in desired position. Lever 2 is used to raise or lower the height of the chair. When weight is applied to the chair, lift the lever and the chair will lower.
- Page 11 Ring Mechanism: The easy reach ring mechanism is located under the stool and can be operated from any point and is used to raise/lower the height of the chair. When weight is applied to the chair, lift the ring mechanism and the chair will lower.
- Page 12 Saddle Stool Mechanism: Lever 1 is used to raise or lower the height of the chair. When weight is applied to the chair, lift the lever and the chair will lower. If you wish to raise the chair, remove any weight on the chair and lift the lever to release the lock and the chair will rise.
- Page 13 360° Swing Around Arm: The height of the swing around arm can be adjusted via the locking knob, loosen this to raise/lower the arm and then tighten when at the desired height. The arm will move freely around the chair 360° for ease of use but will remain stationary when leaned on to be used for an armrest/backrest.
-
Page 14: Cleaning Instructions
3. Cleaning Instructions WARNING! DO NOT SATURATE PRODUCT! IF THE PRODUCT GETS SATURATED DURING CLEANING, THIS COULD ACCELERATE CORROSION, REDUCING PRODUCTS LENGTH OF SERVICE. General Cleaning To get rid of any dust or marks on the surface the Faux Leather MUST be wiped DAILY with a moist soft cotton cloth. - Page 15 Ink, Ball point pen, Denim, hard stains Rub the stain by means of gentle circular movements with tissue dampened with 96°alcohol and water (1:1) After this rub the surface with gentle circular movement with tissue paper to dry it. Butter, oil, grease stains Wipe excess butter, oil or grease off the surface with a clean 100% Cotton white dry cloth.
-
Page 16: Maintenance
If DECONTAMINATING the product then repeat steps above using a dilute Hypochlorite & warm water mixture (mixed at 10,000ppm) instead of warm water and soap. It is crucial that any staining is treated as soon as possible but never later than 24 hours. - Page 17 4. Warranty and Product Lifetime SEERS MEDICAL Limited standard terms and conditions apply to this device. A copy of this is available upon request. This contains full details of warranty terms and does not affect your statutory rights. For any further information on this product, regarding spares, warranty,...
- Page 18 Environmental Protection This product is marked with the crossed-out “wheelie bin” symbol to indicate that it is covered by EU directive 2012/19/EU on Waste Electrical and Electronic Equipment. This symbol indicates that the product was placed on the market after August 13, 2005 and that end users should segregate the product from other waste at end-of-life.
- Page 19 Symbols Safe working load Double Insulated (Class II) Alternating current (a.c.) Manufacturer Total weight of the Manufacturing date equipment including its safe working load Complies with the European Caution/Warning Regulatory affair Serial number Refer to instructions For Use Type B applied part. Model number Waste Electrical and Electronic Equipment...
- Page 20 UNITED KINGDOM t: +44 (0)1728 861590 f: +44 (0)1728 861868 e: info@seersmedical.com w: www.seersmedical.com © SEERS MEDICAL Limited 2023 Advena Limited. Tower Business Centre, 2 Flr. Tower Street, Swatar, BKR 4013 Malta. mark on this product demonstrates conformity with MDR...
