Seers Medical SM3590 Operating Instructions Manual

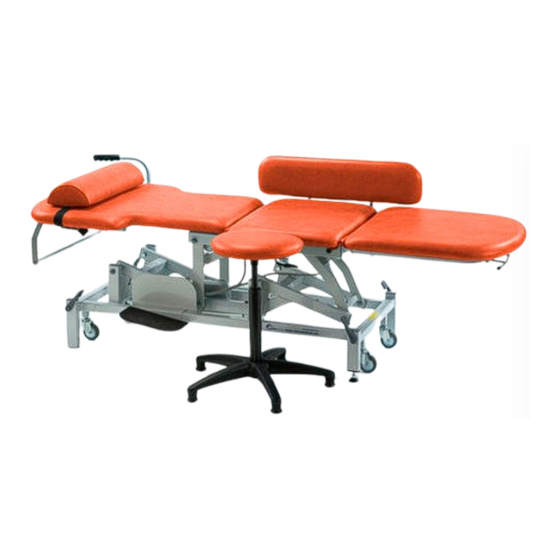

Echocardiography couch
Hide thumbs
Also See for SM3590:
- Instructions for use manual (44 pages) ,
- Instructions for use manual (23 pages)
Subscribe to Our Youtube Channel
Related Manuals for Seers Medical SM3590
Summary of Contents for Seers Medical SM3590
- Page 1 OPERATING INSTRUCTIONS SEERS Medicare Echocardiography Couch Model No.’s: SM3590 03-011-UM ISSUE 1...
- Page 2 INDEX 1. GENERAL INFORMATION – WARNINGS & CAUTIONS 2. HOW TO USE – a. WHEEL SYSTEM b. ADJUSTABLE FOOT c. ADJUSTING THE HEIGHT OF THE COUCH d. ALTERING THE BACKREST ANGLE e. APPLYING TILT TO THE COUCH f. OPTIONAL ACCESSORY – TRIPLE FOOTSWITCH g.
- Page 3 CONGRATULATIONS on the purchase of your SEERS MEDICAL Product. If these operating instructions are adhered too, this product will provide many years of safe use. IF THESE OPERATING INSTRUCTIONS ARE NOT FOLLOWED - YOUR WARRANTY COULD BE INVALID! Always keep these Operating Instructions available for reference.
-
Page 4: How To Use
2. HOW TO USE. WHEEL SYSTEM Lever Down = Wheels retracted and OFF Lever Down = Wheels activated and ON WARNING! This Couch is not designed for patient transportation Ensure Wheels are retracted prior to patient transfer or treatment. Disconnect the electric lead prior to re-locating the couch, ensuring the lead is not trapped in the mechanism. - Page 5 ADJUSTING THE HEIGHT OF THE COUCH To adjust the height of the couch, simply press the raise or lower button of the top button indicated by the symbol, until desired height is achieved. Once the button is released the couch height is locked in that position ready for use.
- Page 6 WARNING! ENSURE the switch operating cable does not become entangled in the couch frame mechanism. When the foot switch is used, ensure it is located where the patient cannot stand on the switch when mounting or dismounting the couch. ALTERING THE FOOT SECTION ANGLE To raise the backrest or foot section, simply grasp the release lever towards the upholstery and adjust the backrest...
- Page 7 SEAT STOOL WARNING! THE STOOL MUST NOT BE UNDERNEATH THE UPHOLSTERY WHEN RAISING OR LOWERING THE COUCH When the clinician is using the seat stool, ensure legs and feet do not enter the mechanism of the couch as entrapment could occur. Ensure the stool is adjusted to the same height as the couch 03-011-UM ISSUE 1...
- Page 8 FOLD DOWN SIDE SUPPORT WARNING! Children must not play with the couch at any time. Adequately supervise children in the proximity of the couch. Ensure the Side Support Rails are Fully Engaged into Socket prior to use To Raise the side support rail, simply lift and To Lower the side support rail, simply lift out rotate 180 degrees, and then engage fully of socket and rotate down 180 degrees to...
-
Page 9: Cleaning Instructions
3. CLEANING INSTRUCTIONS WARNING! Disconnect the couch from the mains power supply prior to carrying out any cleaning or decontaminating. DO NOT SATURATE PRODUCT IF PRODUCT GETS SATURATED DURING CLEANING, THIS COULD ACCELERATE CORROSION, REDUCING PRODUCTS LENGTH OF SERVICE. General Cleaning: To get rid of any dust or marks on the surface the Faux Leather MUST be wiped DAILY with a moist soft cotton cloth. - Page 10 Frequency of routine couch cleaning will depend on exact application. 1. Ensure the couch is in a suitable area for cleaning. 2. The couch must be OFF of the wheels. 3. Disconnect from mains power supply if electric model. 4. Control handsets can be wiped over using an alcohol wipe. 5.
-
Page 11: Maintenance
4. MAINTENANCE WARNING! Disconnect the couch from the mains power supply prior to carrying out any maintenance. All electrical maintenance should be performed by a suitably qualified person. BLUE or BROWN wires must not be connected to any earth terminal. A visual inspection should be carried out daily prior to use. -
Page 12: Warranty
W: www.seersmedical.com © SEERS MEDICAL Limited Manufactured in the UK by SEERSMEDICAL Limited. As part of our ongoing development programme SEERS MEDICAL Limited reserves the right to alter or modify specifications and materials without prior notice. 03-011-UM ISSUE 1... -
Page 13: Technical Data
6. TECHNICAL DATA Index SM3590 Elevation Control ELECTRIC Overall Length (cm) Mid Section Length (cm) Head Length (cm) Foot Section Length (cm) Width (cm) Minimum Height (cm) Maximum Height (cm) Safe Working Load & 240 Kg (528lbs) Lifting Capacity Electrical Data... - Page 14 SEERS MEDICAL Limited Kenton Road Debenham Suffolk IP14 6LA t: +44 (0)1394 387227 f: +44 (0)1394 388634 info@seersmedical.com w: www.seersmedical.com © SEERS MEDICAL Limited mark on this product demonstrates conformity with the Medical Device Directive 93/42/EEC. 03-011-UM ISSUE 1...
