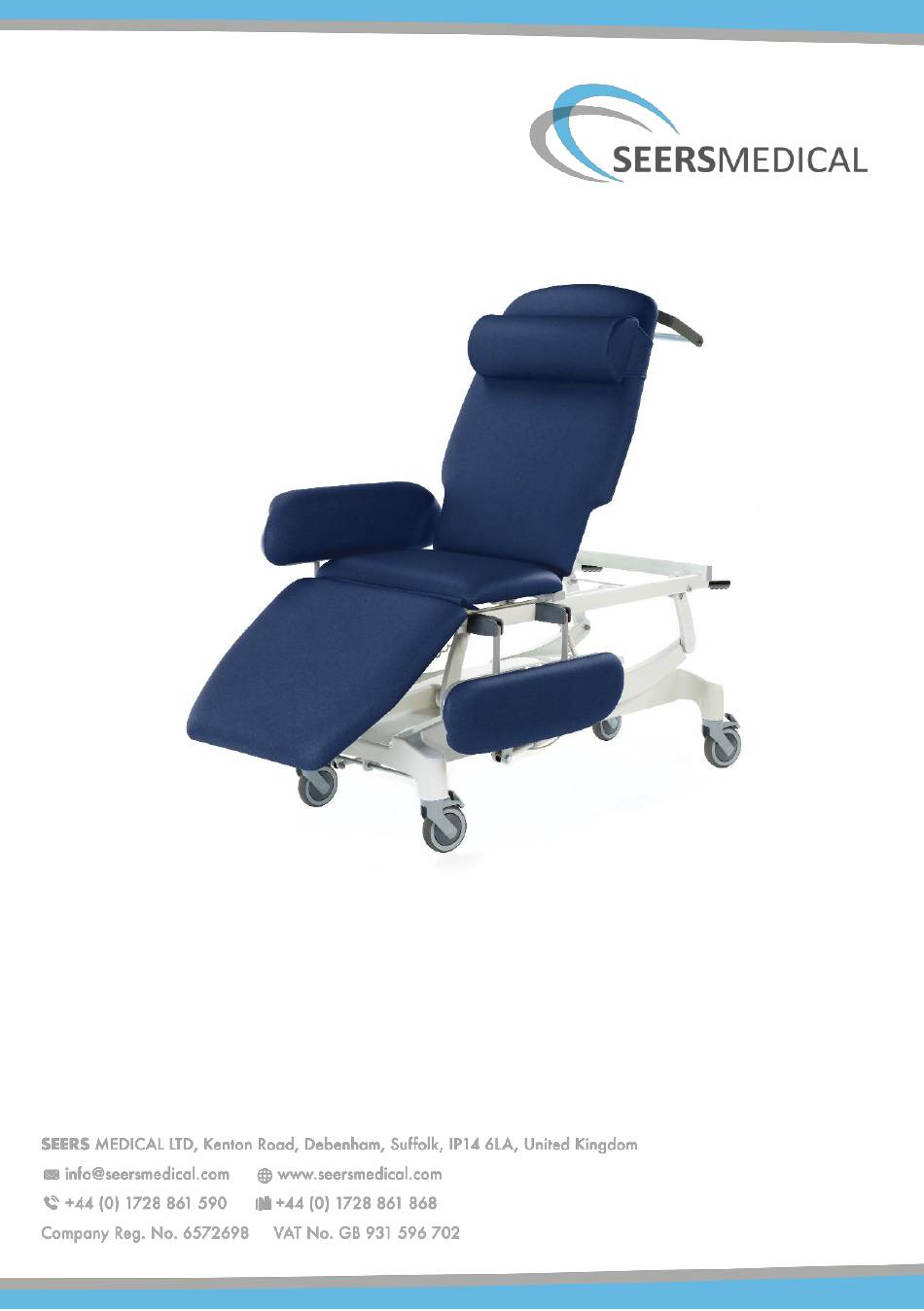

  • Page 1 Instructions for Use Innovation Range 03-1003-IFU-EN | ISSUE 3...
  • Page 2 WARNING To avoid injury, always read this Instructions for Use and accompanied documents before using the product. Mandatory to read the Instructions for Use...
  • Page 3 This Instructions for Use document applies to the following products: Product Name Innovation Deluxe 2 Section MG2475, MG2675 Innovation Deluxe 3 Section MG3475, MG3675 Innovation Deluxe Dialysis MG3490, MG3690 Innovation Deluxe Daycare MG3493, MG3693...
  • Page 4 INDEX General Information - Intended Use, Warnings & Cautions 2. How to Use Wheel System - Large Mobile Wheel Design Adjustable foot levelling Wheel System - Independently Braking Castors Adjusting the height of the couch Adjusting the Backrest, Footrest & Tilt Using the Footboard Side Supports &...

  • Page 5: General Information

    1. General Information CONGRATULATIONS on the purchase of your new SEERS MEDICAL product. If these operating instructions are adhered to, the product will provide many years of safe use. If these operating instructions are not followed, your warranty could be invalid! Always keep these Instructions for Use available for reference.
  • Page 6 WARNINGS! Warnings identify potential hazards which if not followed correctly, could result in serious injury, or possibly death! • Ensure electric couches are not used in the presence of flammable gasses such as an anaesthetic agent. • DO NOT EXCEED the Maximum Safe Working Load of the product. •...

  • Page 7: How To Use

    How To Use Wheel System - Large Mobile Wheel Design (Models MG2675, MG3675, MG3693, MG3690) Wheel Lever Wheel Lever Wheel Lever RED Down Horizontal GREEN Down Castors locked. Castors unlocked. Directional Steering castor engaged at rear of couch. CAUTION! Ensure Castors are LOCKED prior to Patient use.
  • Page 8 Wheel System - Independently Braking Castors (Models MG2475, MG3475, MG3493, MG3490) Castor Unlocked Castor Locked CAUTION! Ensure Castors are LOCKED prior to Patient use.
  • Page 9 Adjusting the Height of the Couch Electric Elevation (-CPR or -CPRFS) Hand Switch Foot Switch Raising the Couch • To elevate the couch, push the UP button on the hand or foot switch. • Once the desired height is achieved, release the button. •...
  • Page 10 Adjusting the Backrest, Footrest & Tilt To adjust the couch, simply press and hold the corresponding key to raise or lower. Once correct position is achieved, simply release the button and the couch position is locked. Please note, the control box is fitted with a micro-processor, which is programmed to not allow the couch to be put into positions it shouldn’t.
  • Page 11 e. Using the Footboard 1. To adjust the position of the footboard, simply loosen the locking knobs (A) on both sides of the foot frame and slide the footboard in or out of the receiving frame. 2. Re-tighten locking knobs (A) to secure the footboard in the new desired position.
  • Page 12 f. Side Supports & Rails (Optional Accessories) WARNING! Children must not play with the couch at any time. Adequately supervise children in the proximity of the couch. Ensure the Side Support Rails are Fully Engaged into Socket, prior to use. To Raise the side support rail, simply lift, and rotate 180 degrees, and then engage fully into socket.
  • Page 13 h. Upper Limb Support (Optional Accessories) 1. To adjust position of Arm Support Pad, undo the locking clamp on underside of pad anticlockwise. 2. Once loosened, move pad to desired position and re-tighten locking clamp to secure. 3. If height adjustment is required, undo the locking clamp on the vertical stem.
  • Page 14 j. Fold Down Arm Supports (MG3493, MG3693) WARNING! Children must not play with the couch at any time. Adequately supervise children in the proximity of the couch. Ensure the Side Support Rails are Fully Engaged into Socket prior to use. To Raise the side support rail, To Lower the side support rail, simply lift and rotate 180 degrees,...

  • Page 15: Cleaning Instructions

    Cleaning Instructions WARNING! Disconnect the couch from the mains power supply prior to carrying out General Cleaning any cleaning or decontaminating. To get rid of any dust or marks on the surface the Faux Leather MUST be wiped DAILY with a moist soft cotton cloth. Visible and loose dirt can be DO NOT SATURATE PRODUCT! picked up with a vacuum cleaner (Do not use a brush type vacuum) Use a soapy cotton cloth and gently rub stains with circular movements.
  • Page 16 Butter, oil, grease stains Wipe excess butter, oil, or grease off the surface with a clean 100% Cotton white dry cloth. Use a soapy cotton cloth and gently rub the stain with circular movements. Use a clean damp cloth to wipe the area and dry the surface.
  • Page 17 It is crucial that any staining is treated as soon as possible but never later than 24 hours. Delays in cleaning will give stains time to react with the plasticiser in the faux leather making it more and more difficult to remove. Note: These are recommended or suggested methods of cleaning.

  • Page 18: Maintenance

    4. Maintenance WARNING! Disconnect the couch from the mains power supply prior to carrying out any maintenance. All electrical maintenance should be performed by a suitably qualified person. BLUE or BROWN wires must not be connected to any earth terminal. Actions to be done by clinician Daily Weekly...
  • Page 19 Actions to be done by qualified personnel Once a year • Carry out a full test of all electrical couch positioning functions (backrest, height, etc.) • Check operation of the backrest/footrest. Check gas struts operate smoothly and correctly throughout all ranges of movement.
  • Page 20 5. Warranty and Product Lifetime SEERS MEDICAL Limited standard terms and conditions apply to this device. A copy of this is available upon request. This contains full details of warranty terms and does not affect your statutory rights. For any further information on this product, regarding spares, warranty,...

  • Page 21: Troubleshooting

    6. Troubleshooting Fault Possible Cause Solution Electrical functions Mains cable has become Locate control box and see whether not working disconnected, either from the power light is illuminated and correctly the wall socket or the that the lead is connected at both control box ends.
  • Page 22 Mechanical faults Squeaking or An over tight pivot point Locate the noisy pivot point, then grinding noise either a bolt or pin is not slacken the securing nut by ¼ turn rotating freely. and lubricate until noise reduces. Wheels will not raise Couch is not on level floor Level couch by adjusting the or lower...
  • Page 23 7. Technical Data - Innovation Deluxe 2 Section Index / Model Configuration Elevation Control Electric Backrest Electric Independently Locking Large Central Locking Wheel System Wheel Design Wheel Design Min. Height 47cm Max. Height 97cm Length 195cm Head Length 65cm Foot Length 130cm Foot Length Angles -20°...

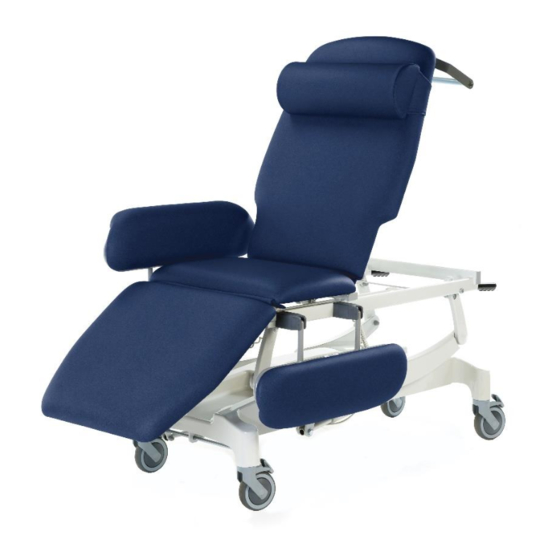

  • Page 24 Technical Data - Innovation Deluxe 3 Section Index / Model Configuration Elevation Control Electric Backrest Electric Independently Locking Large Central Locking Wheel Wheel System Wheel Design Design Min. Height 47cm Max. Height 97cm Length 199cm Head Length 91cm Mid Length 43cm Foot Length 65cm...
  • Page 25 Technical Data - Innovation Deluxe Dialysis Index / Model Configuration Elevation Control Electric Backrest Electric Independently Locking Large Central Locking Wheel Wheel System Wheel Design Design Min. Height 47cm Max. Height 97cm Length 199cm Head Length 91cm Mid Length 43cm Foot Length 65cm Foot Length Angles...
  • Page 26 Technical Data - Innovation Deluxe Daycare Index / Model Configuration Elevation Control Electric Backrest Electric Independently Locking Large Central Locking Wheel Wheel System Wheel Design Design Min. Height 47cm Max. Height 97cm Length 199cm Head Length 91cm Mid Length 43cm Foot Length 65cm Foot Length Angles...

  • Page 27: Environmental Protection

    Electrical Technical Data Linak Ti-Motion 100 - 240VAC, 50/60Hz, 100 - 240V, 50/60Hz Control Box 2500mA 120W 32V, 128VA, Output 0.5W Standby power 10% max, 2 min ON / 18 min OFF Duty Cycle Mains Plug Fuse Rt 5.0A x 1- (UK) IPX 6 washable IP 54...
  • Page 28 Symbols Safe working load Double Insulated (Class II) Alternating current (a.c.) Manufacturer Total weight of the Manufacturing date equipment including its safe working load Complies with the European Caution/Warning Regulatory affair Serial number Refer to instructions For Use Type B applied part. Model number Waste Electrical and Electronic Equipment...
  • Page 32 UNITED KINGDOM t: +44 (0)1728 861590 f: +44 (0)1728 861868 e: info@seersmedical.com w: www.seersmedical.com © SEERS MEDICAL Limited 2023 Advena Limited. Tower Business Centre, 2 Flr. Tower Street, Swatar, BKR 4013 Malta. mark on this product demonstrates conformity with MDR...
