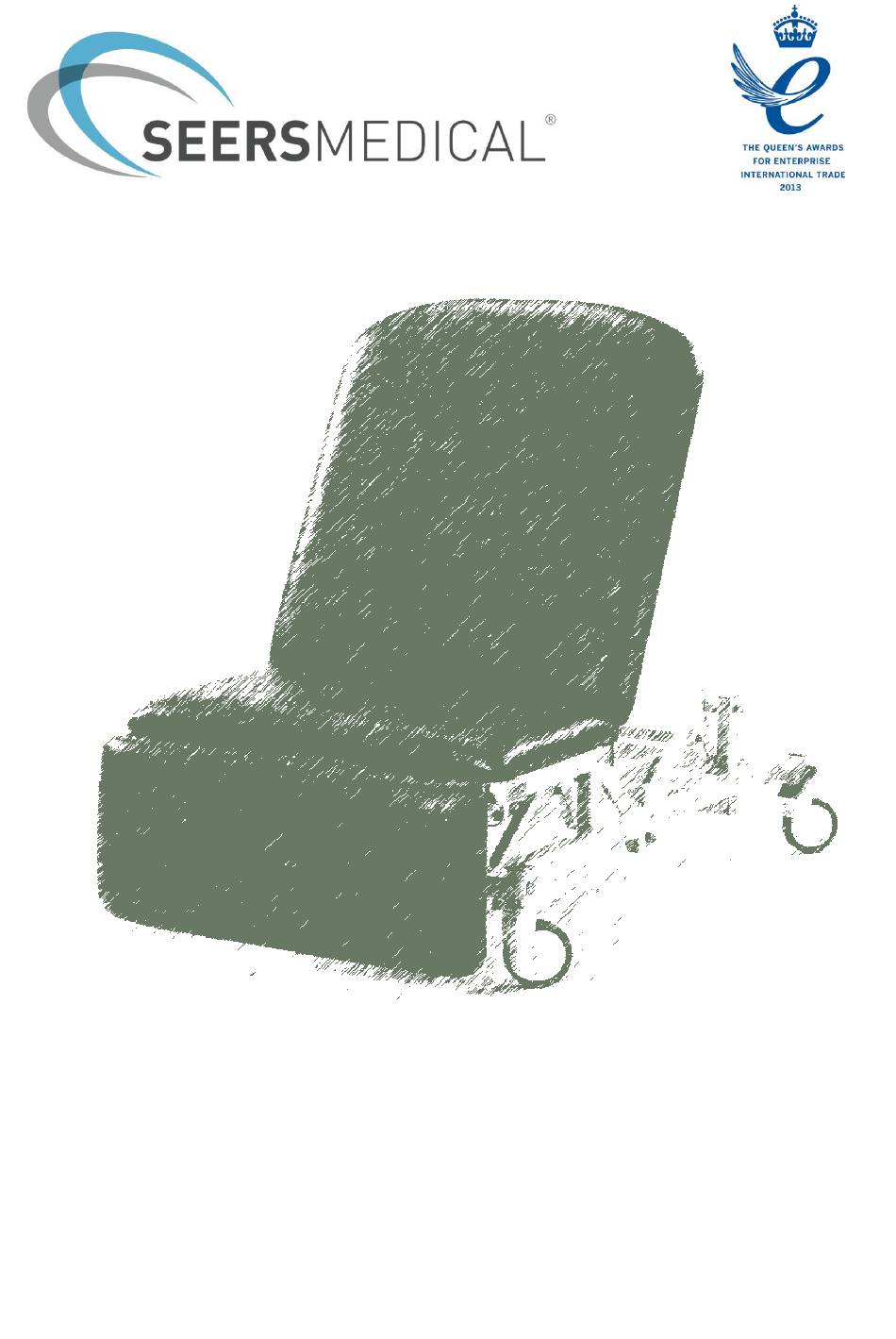

- Page 1 MEDICARE BARIATRIC COUCH RANGE OPERATING INSTRUCTIONS DOC No. 03-102-UM-UK ISSUE 1...
- Page 2 03-102-UM-UK ISSUE 1...
- Page 3 This User Manual applies to the following Couches in the SEERS Medical Therapy Product Range. Medicare Bariatric Drop End Couch – Dual Foot Rests SM3484, SM3584, SM3684 Medicare Bariatric Drop End Couch – Single Foot Rest SM3483, SM3583, SM3583W, SM3683...
- Page 4 INDEX 1. GENERAL INFORMATION – WARNINGS & CAUTIONS 2. HOW TO USE – a. WHEEL SYSTEM b. ADJUSTABLE FOOT c. LARGE WHEEL DESIGN d. LARGE INDIVIDUAL BRAKED CASTORS e. ADJUSTING THE POSITION OF THE COUCH f. OPTIONAL ACCESSORIES 3. CLEANING INSTRUCTIONS 4.
-
Page 5: General Information
1. GENERAL INFORMATION. CONGRATULATIONS on the purchase of your SEERS MEDICAL Bariatric Range Product. If these operating instructions are adhered too, this product will provide many years of safe use. IF THESE OPERATING INSTRUCTIONS ARE NOT FOLLOWED - YOUR WARRANTY COULD BE INVALID! Always keep these Operating Instructions available for reference. - Page 6 2. HOW TO USE. WHEEL SYSTEM (Models SM2573, SM3573, SM3583, SM3584, SM4542) Lever Down = Wheels retracted and OFF Lever Up = Wheels activated and ON WARNING! This Couch is not designed for patient transportation Ensure Wheels are retracted prior to patient transfer or treatment. Disconnect the electric lead prior to re-locating the couch, ensuring the lead is not trapped in the mechanism.
- Page 7 WARNING! This Couch is not designed for patient transportation Ensure Wheels are retracted prior to patient transfer or treatment. Disconnect the electric lead prior to re-locating the couch, ensuring the lead is not trapped in the mechanism. LARGE MOBILE WHEEL DESIGN (Models SM2673, SM3673, SM4642) Wheel Lever Down Wheel Lever Horizontal Lever Up –...
-
Page 8: Height Control
ADJUSTING THE COUCH POSITION (Models SM2573, SM2673, SM4542, SM4642) HEIGHT CONTROL BACKREST CONTROL 2 Way Hand Switch ADJUSTING THE COUCH POSITION (Models SM3573, SM3673, SM3483,SM3583, SM3683) HEIGHT CONTROL BACKREST CONTROL FOOTREST CONTROL 3 Way Hand Switch 03-102-UM-UK ISSUE 1... -
Page 9: Optional Accessories
ADJUSTING THE POSITION OF THE COUCH (Models SM3483, SM3583, SM3683) HEIGHT ELEVATION BACKREST LEFT FOOT REST RIGHT FOOT REST Optional Accessories SIDE SUPPORTS & RAILS WARNING! Children must not play with the couch at any time. Adequately supervise children in the proximity of the couch. Ensure the Side Support Rails are Fully Engaged into Socket prior to use To Raise the side support rail, simply lift and To Lower the side support rail, simply lift out... - Page 10 PAPER TOWEL HOLDER To fit and change the paper towel, simply spring the frame outwards, and remove the tube. Place the towel roll onto the tube and refit into paper towel holder, by springing frame out gently. Releasing the frame once the tube is in place. 03-102-UM-UK ISSUE 1...
-
Page 11: Cleaning Instructions
CLEANING INSTRUCTIONS WARNING! Disconnect the couch from the mains power supply prior to carrying out any cleaning or decontaminating. DO NOT SATURATE PRODUCT IF PRODUCT GETS SATURATED DURING CLEANING, THIS COULD ACCELERATE CORROSION, REDUCING PRODUCTS LENGTH OF SERVICE. General Cleaning: To get rid of any dust or marks on the surface the Faux Leather MUST be wiped DAILY with a moist soft cotton cloth. - Page 12 Frequency of routine couch cleaning will depend on exact application. 1. Ensure the couch is in a suitable area for cleaning. 2. The couch must be OFF of the wheels. 3. Disconnect from mains power supply if electric model. 4. Control handsets can be wiped over using an alcohol wipe. 5.
-
Page 13: Maintenance
4. MAINTENANCE WARNING! Disconnect the couch from the mains power supply prior to carrying out any maintenance. All electrical maintenance should be performed by a suitably qualified person. BLUE or BROWN wires must not be connected to any earth terminal. A visual inspection should be carried out daily prior to use. -
Page 14: Warranty
W: www.seersmedical.com © SEERS MEDICAL Limited 2015 Manufactured in the UK by SEERSMEDICAL Limited. As part of our ongoing development programme SEERS MEDICAL Limited reserves the right to alter or modify specifications and materials without prior notice. 03-102-UM-UK ISSUE 1... -
Page 15: Troubleshooting
6. TROUBLESHOOTING Fault Possible Cause Solution Electrical functions not working Mains cable has become disconnected, Locate control box and see whether the power light correctly either from the wall socket or the control is illuminated and that the lead is connected at both ends. -
Page 16: Technical Data
7. TECHNICAL DATA Index SM2573 & SM2673 SM4542 & SM4642 Elevation Control Electric Electric Overall Length (cm) Head Length (cm) Foot Section Length (cm) Width (cm) Minimum Height (cm) Maximum Height (cm) Safe Working Load & 325 Kg Lifting Capacity 03-102-UM-UK ISSUE 1... - Page 17 TECHNICAL DATA Index SM3573 & SM3673 Elevation Control Electric Overall Length (cm) Mid Section Length (cm) Head Length (cm) Foot Section Length (cm) Width (cm) Minimum Height (cm) Maximum Height (cm) Safe Working Load & 325 Kg Lifting Capacity 03-102-UM-UK ISSUE 1...
- Page 18 TECHNICAL DATA Index SM3483, SM3484, SM3583, SM3683 Elevation Control Electric Overall Length (cm) Mid Section Length (cm) Head Length (cm) Foot Section Length (cm) Width (cm) Minimum Height (cm) Maximum Height (cm) Safe Working Load & 325 Kg Lifting Capacity 03-102-UM-UK ISSUE 1...
-
Page 19: Electrical Info
Class 1 Earthed Type B Equipment CERTIFIED TO CSA STANDARD C22.2 No 60601-1 mark on this product demonstrates conformity with the Medical Device Directive 93/42/EEC. 3154358 The Control box used on this SEERS Medical Product is a Recognized Component 03-102-UM-UK ISSUE 1... - Page 20 SEERS MEDICAL Limited Kenton Road Debenham Suffolk IP14 6LA t: +44 (0)1728 861590 f: +44 (0)1728 861868 info@seersmedical.com w: www.seersmedical.com © SEERS MEDICAL Limited 2015 mark on this product demonstrates conformity with the Medical Device Directive 93/42/EEC. 03-102-UM-UK ISSUE 1...
