- Page 1 ATLANTA PATIENT TRANSPORT TROLLEY OPERATING INSTRUCTIONS Models PT1402 & PTX1403-XRAY DOC No. 03-028-UM-UK ISSUE 1...
- Page 2 This User Manual applies to the following Patient Trolleys in the SEERS Medical Atlanta Patient Trolley Range. Atlanta 2 Section Patient Transport Trolley PT1402 Atlanta 2 Section Patient Transport Trolley with full X-Ray facility PTX1403-XRAY 93/42/EEC 03-028-UM-UK ISSUE 1...
- Page 3 INDEX 1. GENERAL INFORMATION – WARNINGS & CAUTIONS 2. HOW TO USE – a. Parts Identification b. Wheel system c. Height and tilt adjustment of the Trolley d. Altering the backrest angle e. Using the side support rails safely f. Pushing the Trolley g.
-
Page 4: General Information

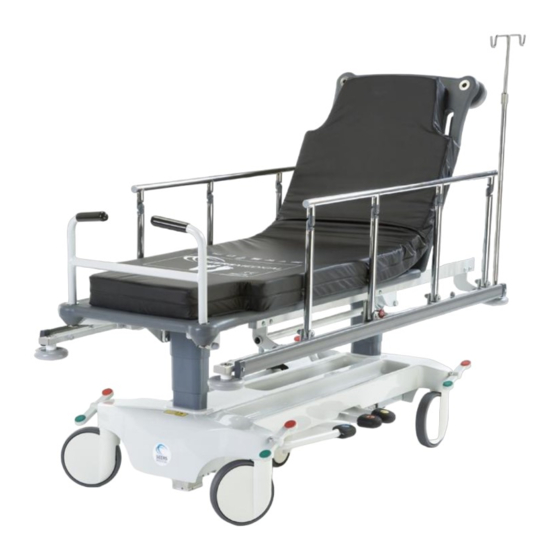

1. GENERAL INFORMATION. CONGRATULATIONS on the purchase of your SEERS MEDICAL Atlanta Patient Trolley. If these operating instructions are adhered too, this product will provide many years of safe use. IF THESE OPERATING INSTRUCTIONS ARE NOT FOLLOWED - YOUR WARRANTY COULD BE INVALID! Always keep these Operating Instructions available for reference. - Page 5 2. HOW TO USE. PARTS IDENTIFICATION A – Side Rail J – Oxygen cylinder securing strap B – Push Handle K - Castor Locking Lever/5 Wheel activation C – Buffer L – Storage tray D – Base cover with cylinder holder M –...
-
Page 6: Wheel System
b. WHEEL SYSTEM WARNING! CASTORS MUST BE LOCKED PRIOR TO TREATMENT OF A PATIENT ON THE TROLLEY ENGAGE THE 5 WHEEL TO ENABLE STEERING FACILITY Castors Locked Directional 5 Wheel activated Castors un-locked The Patient trolley is fitted with high quality large diameter (200mm – 8”) castors, allowing for easy transportation of the trolley. - Page 7 c. Height and Tilt Adjustment of the Trolley WARNING! Ensure the pedals are not stood on with load bearing weight when mounting or dismounting the trolley. They are not to be used as a step. Abuse of the pedals could cause mechanical damage to the trolley lifting mechanism Height adjustment and tilt angles are controlled by the foot pedals on both sides of the couch.
- Page 8 d. Altering the backrest angle WARNING! Ensure Patient is secure and not surprised by sudden backrest adjustment. Ensure patient entrapment will not occur when operating the backrest To Operate the backrest To raise the backrest, simply squeeze the release lever upwards towards the laminate deck and adjust the backrest to the angle desired.
- Page 9 e. Using the Side Support Rails safely WARNING! WARNING! Side rails on patient trolleys pose a potential entrapment hazard. Side rails on patient trolleys pose a potential entrapment hazard. Always use side rails on the patient trolley with caution. Always use side rails on the patient trolley with caution. Ensure the Side Support Rails are Fully Engaged and locked into position prior to use.
- Page 10 g. Securing the Oxygen Cylinder WARNING! Ensure the Oxygen Cylinder is retained by the securing straps provided Failure to do so, could result in the cylinder rolling off of the trolley. Only Oxygen Cylinders Size D, E or F can be used. The regulator of the Oxygen bottle must be towards the Backrest End of the Trolley Oxygen Cylinder Bottle Securing strap Oxygen Cylinder Bottle secured...
- Page 11 i. X-Ray facility (model PTX1403-XRAY only) CAUTION! Ensure X-Ray cassettes is removed prior to transporting trolley DO not put X-ray cassette under hinged area and then operate the backrest as this could cause damage to the x-ray cassette or trolley The x-ray facility has been designed to allow the cassette to be inserted from both sides of the trolley.
- Page 12 CLEANING & DECONTAMINATION INSTRUCTIONS WARNING! DO NOT SATURATE PRODUCT IF PRODUCT GETS SATURATED DURING CLEANING, THIS COULD ACCELERATE CORROSION, REDUCING PRODUCTS LENGTH OF SERVICE. Frequency of routine Patient Trolley Cleaning & Decontamination should be in accordance with local Infection Control Protocols General Cleaning 1.
-
Page 13: Maintenance
MAINTENANCE CAUTION! Ensure the Trolley is in a suitable area for maintenance. Secure the Patient Trolley by locking the castors prior to carrying out maintenance A visual inspection should be carried out daily prior to use. Regular servicing should be carried out a minimum of every 12 months or more frequently if the couch is in constant use. -
Page 14: Warranty
For any further information on this product, regarding spares, warranty, service or maintenance information, please contact your product supplier. As part of our ongoing development programme SEERS MEDICAL Limited reserves the right to modify specifications and materials of this couch without prior notice. -
Page 15: Technical Data
TECHNICAL DATA Index PT1402 PTX1403-XRAY Configuration Non X Ray Fitted with X-Ray facility Elevation Control Twin Hydraulic Twin Hydraulic Overall Length (cm) Width (cm) Minimum Height (cm) Maximum Height (cm) Trendelenburg Angle -16 degrees Reverse Trendelenburg Angle +16 degrees Mattress Dimensions (cm) 190 x 60 Safe Working Load &... - Page 16 SEERS MEDICAL Limited Kenton Road Debeham Suffolk IP14 6LA UNITED KINGDOM t: +44 (0)1728 861590 f: +44 (0)1728 861868 info@seersmedical.com w: www.seersmedical.com © SEERS MEDICAL Limited 2014 03-028-UM-UK ISSUE 1...
