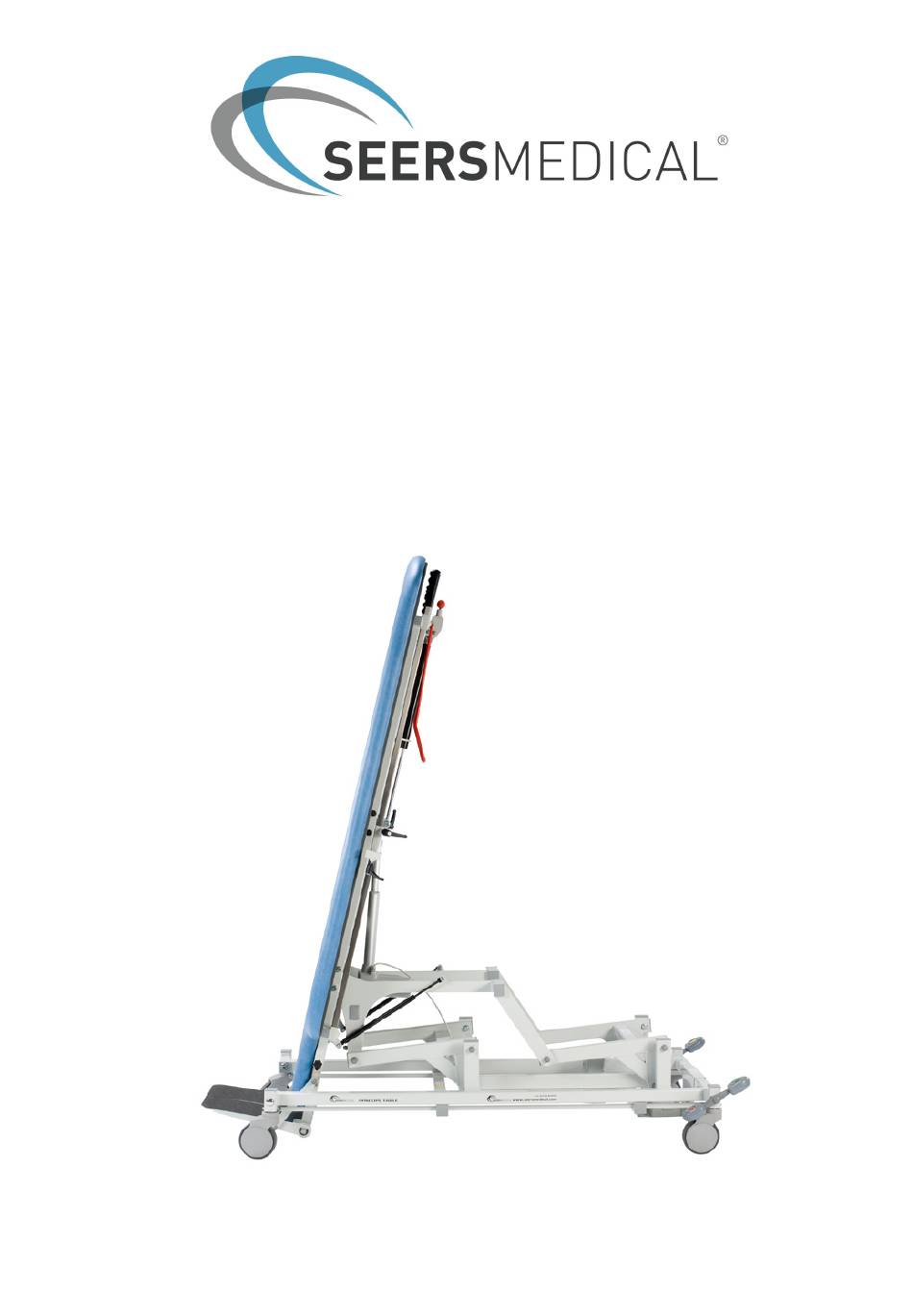

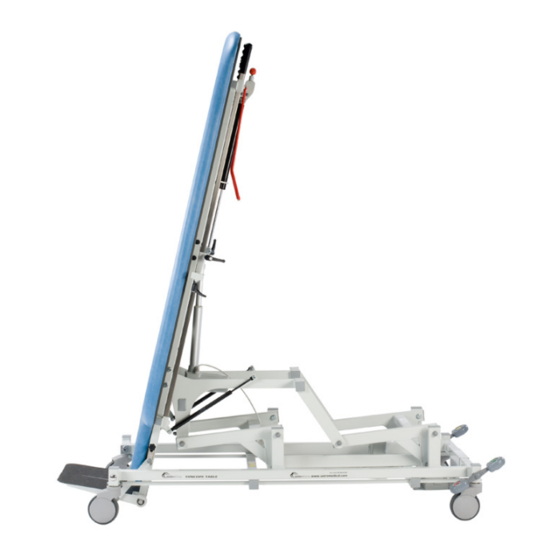

- Page 1 INSTRUCTIONS FOR USE SEERS Tilt Table Pro Model No.’s: ST7645, ST7645DL 03-105-IFU-UK DRAFT A...
- Page 2 WARNING To avoid injury, always read this Instructions for Use and accompanied documents before using the product. Mandatory to read the Operating Instruction INDEX 1. GENERAL INFORMATION – INTENDED USE, WARNINGS & CAUTIONS 2. HOW TO USE – a. WHEEL SYSTEM b.
-
Page 3: General Information
1. GENERAL INFORMATION. CONGRATULATIONS on the purchase of your SEERS MEDICAL Product. If these operating instructions are adhered too, this product will provide many years of safe use. IF THESE OPERATING INSTRUCTIONS ARE NOT FOLLOWED - YOUR WARRANTY COULD BE INVALID! Always keep these Operating Instructions available for reference. - Page 4 • Make sure the patient is positioned correctly to avoid entrapment or imbalance. • Take care not to allow clothing to become snagged on moving parts of the couch • These products are not intended for Patient Transportation. • The patient should not be left on the couch unattended at any time. Do not use the Tilt Table in areas of high humidity (e.g.
- Page 5 CAUTIONS! Ensure Castors are LOCKED prior to Patient use. b. ADJUSTING THE HEIGHT OF THE TABLE WARNING! ENSURE the switch operating cable does not become entangled in the frame mechanism when Raising or Lowering the table 1. To adjust the height of the table, simply press the height function button indicated by the symbol, at the top of the handset.
- Page 6 3. To adjust the height of the table up or down, press and hold the desired up or down direction arrow. In releasing the arrow, the couch automatically locks at that height. If the up or down arrow is pressed and held again within ten seconds the height function will continue to be selected.
- Page 7 2. Once selected, the graphic in the display window changes to show the Tilt function has been chosen. 3. To adjust the tilt angle of the table up or down, press and hold the desired up or down direction arrow. In releasing the arrow, the table automatically locks at that height.
-
Page 8: Cpr Function
1. Position Couch to the desired position. 2. Once achieved, press and hold the ‘STORE MEMORY’ button for 3 seconds. 3. Then, immediately after the 3 seconds, within another 3 seconds press the desired memory save M1 or M2 or M3 to save the tables position. -
Page 9: Adjusting The Footboard Angle
The table is fitted with a CPR function. In activating the CPR function, the table puts it itself in to a low horizontal position as quickly as it can, to allow CPR to be carried out if necessary. To use this function, follow the steps below…. 1. - Page 10 h. PATIENT SUPPORT HAND HOLDS 1. To fit the Patient Support Hand hold to the couch, undo the locking lever on the sliding bracket. 2. Locate sliding bracket to the desired position and re-tighten the lever to secure. 3. Plug the hand hold into the sliding bracket and secure by tightening the locking lever on the underside.
- Page 11 j. Fixation Straps & Harnesses WARNING Check condition of straps and harnesses, if worn out or damaged replace immediately. Always ensure that the straps and harnesses are in the correct position and that the patient is fully secure before operating the tilt facility. The Standard Tilt Tables are supplied with the following Fixation Strap Set ( 6062 ): 2 x Narrow Belts (6066) 1 x Wide Belt (6065)
- Page 12 Always ensure that the straps and harnesses are in the correct position and that the patient is fully secure before operating the tilt facility. Only use straps/harnesses supplied by SEERS Medical Ltd. The Split Leg Tilt Tables are supplied with the following Fixation Strap Set (6063): The 6063 Strap set comprises of 2 x 6066 and 2 x 6064.
-
Page 13: Optional Accessories (Not Included)
k. OPTIONAL ACCESSORIES (not included) PELVIC STABILISERS (MODEL ST6058) 1. Locate the lower sliding bracket on the side rail to the desired height. 2. Adjust the height and distance in to the patient of the stabiliser, by loosening the relevant locking lever, adjusting to desired position and the re-tightening to secure. - Page 14 MANUAL OVERIDE FACILTY (EMERGENCY VERTICAL TO HORIZONTAL) WARNING! TO ENSURE THE EMERGENCY OVERIDE FACILITY WORKS SAFELY AND RELIABLY, IT IS IMPERATIVE THESE INSTRUCTIONS ARE FOLLOWED INCORRECT USE COULD CAUSE DAMAGE – AS WELL AS THE SYSTEM FAILING TO OPERATE WHEN NEEDED THIS IS AN EMERGENCY DOWN FACILITY –...
- Page 15 WARNING! BEFORE PULLING THE EMERGENCY ACTIVATION LEVER – BE READY TO TAKE PATIENT WEIGHT AS ACTIVATING THE LEVER DISENGAGES THE ELECTRIC MOTOR FAILURE TO ADHERE TO THIS ADVICE COULD RESULT IN THE TABLE COMING DOWN INADVERTENTLY AND HURTING THE OPERATOR OR PATIENT! GET FAMILIAR WITH THE OPERATION OF THIS EMERGENCY FACILITY WITHOUT A PATIENT PRESENT –...
- Page 16 10. Before the table can be used normally again (by the handset) the emergency facility must be reset. 11. Manually lift the Tilt table back to the position when the emergency activation lever was pulled. 12. Once in this position, pull the reset knob out, which disengages the gas strut and engages the electric motor for normal use once more.
- Page 17 APPROVED SEERS ACCESSORIES FOR TILT TABLE PRO ONLY Tilt Table Pro divided leg single leg description ST7645DL ST7645 7648 adjustable work table √ √ 6057 battery back up 6058 hip and leg stabilizer 6059 pommel support 6007 head support cushion...
-
Page 18: Cleaning Instructions
3. CLEANING INSTRUCTIONS WARNING! Disconnect the couch from the mains power supply prior to carrying out any cleaning or decontaminating. DO NOT SATURATE PRODUCT IF PRODUCT GETS SATURATED DURING CLEANING, THIS COULD ACCELERATE CORROSION, REDUCING PRODUCTS LENGTH OF SERVICE. Recommended Cleaning Method – SEERS Anti-Bacterial Cleaning Wipes The perfect solution for cleaning SEERS Examination Couches. - Page 19 Stain Removal: Blot excess liquid as quickly as possible with a clean 100% cotton white absorbent cloth or sponge. If necessary use clean warm water. Clean the entire area where the spot occurred on the cushion, arm etc. Water may dissolve dirt particles and make cleaning easier. Spills that are still moist are the easiest to remove.
-
Page 20: General Cleaning
10. Wash hands thoroughly. If DECONTAMINATING the couch then repeat steps above using a dilute Hypochlorite & warm water mixture (mixed at 10,000ppm) instead of warm water and soap. It is crucial that any staining is treated as soon as possible but never later than 24 hours. Delays in cleaning will give stains time to react with the plasticiser in the faux leather making it more and more difficult to remove. - Page 21 4. MAINTENANCE WARNING! Disconnect the couch from the mains power supply prior to carrying out any maintenance. All electrical maintenance should be performed by a suitably qualified person. BLUE or BROWN wires must not be connected to any earth terminal. Actions to be done by clinician Daily Weekly...
- Page 22 Look for any visual signs of damage. Ensure all nuts, bolts and other fasteners are present and fitted where expected. If loose (can be undone by hand), re- tighten using suitable tools – but taking care to not over tighten as this could cause binding, juddering, identifiable by a likely creaking noise Check any accessories fitted to the couch, paying particular attention to fasteners ...
-
Page 23: Warranty
W: www.seersmedical.com © SEERS MEDICAL Limited Manufactured in the UK by SEERSMEDICAL Limited. As part of our ongoing development programme SEERS MEDICAL Limited reserves the right to alter or modify specifications and materials without prior notice. 03-105-IFU-UK ISSUE 1... -
Page 24: Troubleshooting Guide
6. TROUBLESHOOTING GUIDE Fault Possible Cause Solution Electrical functions not working Mains cable has become disconnected, Locate control box and see whether the power light correctly either from the wall socket or the control is illuminated and that the lead is connected at both ends. -
Page 25: System Reset
SYSTEM RESET This Pro Tilt table is fitted with an advanced intelligent actuator system. If maintenance has been carried out, or an actuator has been disconnected for any reason, it may be necessary to reset the control system. If you are in any doubt Contact your reseller for after sales support and advice. To reset the actuator control system….. -
Page 26: Technical Data
7. TECHNICAL DATA Index ST7645 & ST7645DL Overall Length (cm) 195cm Width (cm) 70cm Minimum Height 47cm 101cm Maximum Height 0⁰ to +90⁰ Tilt Angle Foot Board Angles +10⁰ to -30⁰ Safe Working Load & Lifting 225 Kg (495lbs) Capacity Electrical Data Control System Mnfr Timotion... -
Page 27: Transport And Storage
This product is marked with the crossed out wheelie bin symbol to indicate that it is covered by EU Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). This symbol indicates that all electrical and electronic products must be taken to a dedicated collection point at end of their working life. - Page 28 +44 (0)1728 861590 f: +44 (0)1728 861868 info@seersmedical.com w: www.seersmedical.com © SEERS MEDICAL Limited 2020 Advena Limited. Tower Business Centre, 2 Flr. Tower Street, Swatar, BKR 4013 Malta. mark on this product demonstrates conformity with the European Device Directive...
