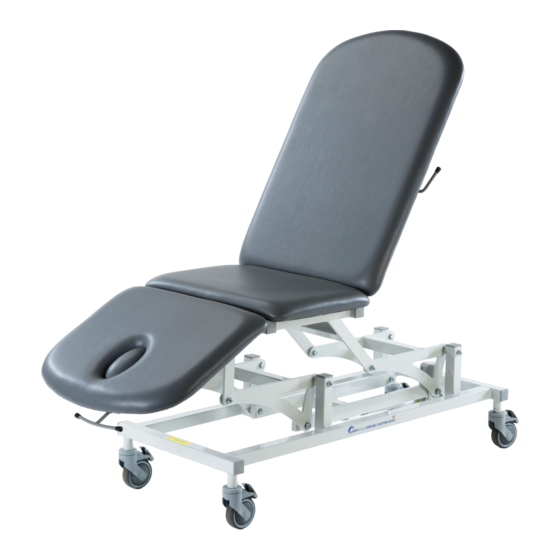

Sterling 1, 2 & 3 section couch
Hide thumbs
Also See for SX1047:
- Instructions for use manual (24 pages) ,
- Instructions for maintenance (24 pages)
Related Manuals for Seers Medical SX1047
Summary of Contents for Seers Medical SX1047

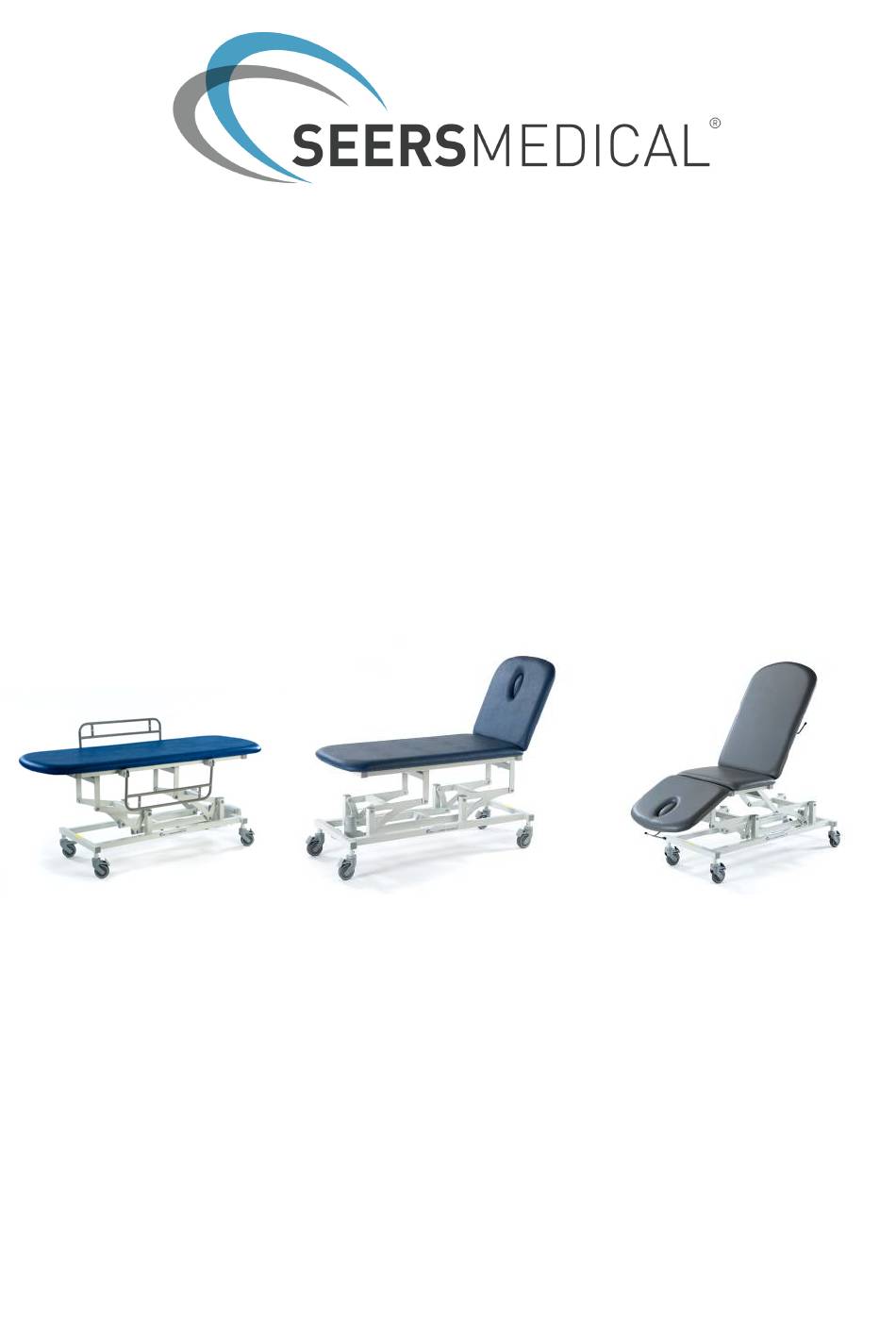

- Page 1 OPERATING INSTRUCTIONS SEERS Sterling 1, 2 & 3 Section Couch Model SX1047/57 Model SX2007 Model SX3008 DOC No. 03-015-UM ISSUE 2...
- Page 2 INDEX 1. GENERAL INFORMATION – WARNINGS & CAUTIONS 2. HOW TO USE – a. LOCKING & UNLOCKING THE WHEELS b. ADJUSTING THE HEIGHT OF THE COUCH c. ALTERING THE BACKREST & FOOTREST ANGLES d. OPTIONAL ACCESSORIES 3. CLEANING INSTRUCTIONS 4. MAINTENANCE 5.
-
Page 3: General Information
1. GENERAL INFORMATION. CONGRATULATIONS on the purchase of your Sterling Couch from SEERS MEDICAL LTD. If these operating instructions are adhered too, this product will provide many years of safe use. IF THESE OPERATING INSTRUCTIONS ARE NOT FOLLOWED - YOUR WARRANTY COULD BE INVALID! Always keep these Operating Instructions available for reference. -
Page 4: How To Use
2. HOW TO USE. WHEELS Lever UP = Wheels UNLOCKED Lever down = Wheels LOCKED WARNING! This Couch is not designed for patient transportation Ensure Wheels are retracted prior to patient transfer or treatment. Disconnect the electric lead prior to re-locating the couch, ensuring the lead is not trapped in the mechanism. - Page 5 ALTERING THE BACK REST & FOOT SECTION ANGLE (SX2007 & SX3008) To raise the backrest or foot rest, simply grasp the release lever towards the upholstery and adjust the backrest to the angle desired. Releasing the lever automatically locks the section at that angle. To lower, grasp the lever again, and lower the backrest to the required angle.
- Page 6 SIDE SUPPORTS & RAILS (optional accessories for model SX1057) WARNING! Children must not play with the couch at any time. Adequately supervise children in the proximity of the couch. Ensure the Side Support Rails are Fully Engaged into Socket prior to use To Raise the side support rail, simply lift and To Lower the side support rail, simply lift out rotate 180 degrees, and then engage fully...
-
Page 7: Cleaning Instructions
CLEANING INSTRUCTIONS WARNING! Disconnect the couch from the mains power supply prior to carrying out any cleaning or decontaminating. DO NOT SATURATE PRODUCT IF PRODUCT GETS SATURATED DURING CLEANING, THIS COULD ACCELERATE CORROSION, REDUCING PRODUCTS LENGTH OF SERVICE. General Cleaning: To get rid of any dust or marks on the surface the Faux Leather MUST be wiped DAILY with a moist soft cotton cloth. - Page 8 Frequency of routine couch cleaning will depend on exact application. 1. Ensure the couch is in a suitable area for cleaning. 2. The couch wheels must be LOCKED. 3. Disconnect from mains power supply. 4. Control handsets can be wiped over using an alcohol wipe. 5.
-
Page 9: Maintenance
MAINTENANCE WARNING! Disconnect the couch from the mains power supply prior to carrying out any maintenance. All electrical maintenance should be performed by a suitably qualified person. BLUE or BROWN wires must not be connected to any earth terminal. A visual inspection should be carried out daily prior to use. Regular servicing should be carried out a minimum of every 12 months or more frequently if the couch is in constant use. -
Page 10: Warranty
W: www.seersmedical.com © SEERS MEDICAL Limited Manufactured in the UK by SEERS MEDICAL Limited. As part of our ongoing development programme SEERS MEDICAL Limited reserves the right to modify specifications and materials of this couch without prior notice. DOC No. 03-015-UM... -
Page 11: Technical Data
TECHNICAL DATA Index / Model No. SX1047 & SX1057 SX2007 SX3008 Configuration Elevation Control Electric Electric Electric SX1047 = 152cm Overall Length (cm) SX1057 = 186cm Head Length (cm) Mid Length (cm) Foot Length (cm) Width (cm) Minimum Height (cm) - Page 12 SEERS MEDICAL Limited Kenton Road Debenham Suffolk IP14 6LA t: +44 (0)1728 861590 f: +44 (0)1728 861868 info@seersmedical.com w: www.seersmedical.com © SEERS MEDICAL Limited 2019 mark on this product demonstrates conformity with the Medical Device Directive 93/42/EEC. DOC No. 03-015-UM ISSUE 1.0...
