Summary of Contents for Advantech PIT-1501W
- Page 1 Chipsmall Limited consists of a professional team with an average of over 10 year of expertise in the distribution of electronic components. Based in Hongkong, we have already established firm and mutual-benefit business relationships with customers from,Europe,America and south Asia,supplying obsolete and hard-to-find components to meet their specific needs.

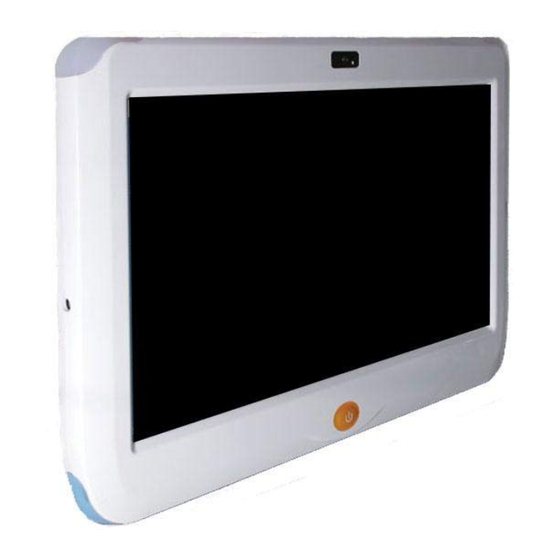

- Page 2 User Manual PIT-1501W Patient Infotainment Terminal...
- Page 3 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
- Page 4 Technical Support and Assistance Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: –...
- Page 5 The computer is provided with a battery-powered real-time clock circuit. There is a danger of explosion if battery is incorrectly replaced. Replace only with same or equivalent type recom- mended by the manufacture. Discard used batteries according to the manufacturer’s instructions PIT-1501W User Manual...
- Page 6 The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
- Page 7 PIT-1501W User Manual...
-
Page 8: Table Of Contents
Rear View ................... 14 Chapter Software Description......15 Windows XP Embedded Software Specifications ........16 Chapter Design Requirements......19 Environmental Specifications ..............20 Reliability....................20 Chapter Installation..........21 Terminal Installation ................22 Handset Installation................. 23 Remote Controller Installation..............24 Arm Installation ..................25 PIT-1501W User Manual... - Page 9 PIT-1501W User Manual viii...
-
Page 10: Chapter 1 Introduction
Chapter Introduction This chapter briefly introduces the PIT-1501W product. ! Overview ! System Configuration... -
Page 11: Overview
Windows XP Embedded OS built-in. In addition to providing hospital bedside patient information, remote monitoring, and care functions, the CPU and the LAN- enabled architecture of the PIT-1501W terminal also serves as an integrated hospital gateway device. The PIT-1501W equipped with an Intel Atom 1.6 GHz processor, 15.6 W touchscreen, onboard Ethernet, and audio, plays a key role as a hospital bed-... - Page 12 8. Nurse call with hard wire 9. Bottom I/O Arrangement (Mic-in, Line out, 10. Vesa Mounting /heat sink USB port, Smart Card Reader) (75/100 compatible) 12. Access Door for Hard drive and TV tuner 11. Access Door for CF card Module PIT-1501W User Manual...
-
Page 13: System Configuration
System Configuration A block diagram of a PIT-1501W Patient Infotainment Terminal based on a hospital bedside environment is shown below in the following diagram: Silverthorne XL Silverthorne XL 437 FCBGA8 437 FCBGA8 1.6GHZ / 1.6GHZ / FBS=533MHz FBS=533MHz FSB 533/400... -
Page 14: Chapter 2 Hardware Description
Chapter Hardware Description This chapter describes the hard- ware features of the PIT-1501W. ! Main Specifications ! General Specifications ! Mechanical Specifications ! External View... -
Page 15: General Specifications
Power adaptor: AC/DC – Input voltage: 100 Vac ~ 240 Vac – Output voltage: 19 V @ 3.79 A Medical adaptor: AC/DC – Input voltage: 100 Vac ~ 240 Vac – Output voltage: 19 V @ 2.63 A PIT-1501W User Manual... -
Page 16: Mechanical Specifications
System Dimensions: 418 (W) x 308.4 (H) x 65 (D) mm Front Cover: Rear Cover: Carton Dimensions: 620 (W) x 540 (H) x 180 (D) (excluding accessories box) Mounting System: Back box for wall mounting Gross Weight: 7.0 kg Net Weight: 5.0 kg PIT-1501W User Manual... -
Page 17: Mechanical Specifications (Terminal With Handset)
2.2.2 Mechanical Specifications (Terminal with Handset) System Dimensions: 494.5 (W) x 392.2 (H) x 73.5 (D) mm PIT-1501W User Manual... - Page 18 Front Cover: Rear Cover: Carton Dimensions: 620 (W) x 540 (H) x 180 (D) (excluding accessories box) Mounting System: Back of Box for Wall mounting Gross Weight: 7.0 kg Net Weight: 5.0 kg PIT-1501W User Manual...
-
Page 19: Mechanical Specifications (Terminal With Remote Controller)
2.2.3 Mechanical Specifications (Terminal with Remote Controller) System Dimensions: 532.3 (W) x 392.2 (H) x 73.5 (D) mm PIT-1501W User Manual... - Page 20 Front Cover: Rear Cover: Carton Dimensions: 620 (W) x 540 (H) x 180 (D) mm Mounting System: Back of Box for Wall mounting Gross Weight: 7.0 kg Net Weight: 5.0 kg PIT-1501W User Manual...
-
Page 21: Mechanical Drawing For Button I/O
2.2.4 Mechanical Drawing for Button I/O 2.2.5 Mechanical Drawing for Rear I/O *External Switch Controller: control port for LCD on/off switch on front panel. PIT-1501W User Manual... -
Page 22: External View
External View 2.3.1 Front View Front View (Terminal) Front View (Terminal with Remote Controller) Front View (Terminal with Remote Controller & Handset) PIT-1501W User Manual... -
Page 23: Side View
2.3.2 Side View 2.3.3 Rear View Rear View (Terminal) PIT-1501W User Manual... -
Page 24: Chapter 3 Software Description
Chapter Software Description This chapter describes the soft- ware features of the PIT-1501W. ! Windows XP Embedded Soft- ware Specifications... -
Page 25: Windows Xp Embedded Software Specifications
Realtek Audio ALC880 Rev:5.10.0.5512 Marvell Yukon Ethernet Controller Rev: 8.61.7.3 Camera D-Max UVC 1.3 M Webcam Rev: 6.11.200.4 Smartcard reader ALCOR micro USB smartcard reader Rev: 5.11.9520.7 Touch Elo TouchSys. 2216 AccuTouch@USB Rev: 4.4.0.0 WLAN Qcom WIFI module Rev:1.2.3.0 PIT-1501W User Manual... - Page 26 Embedded Application Software Advantech SUSI SUSI demo program LED indicator control. PIT-1501W User Manual...
