Operation - IKA C-MAG HS 7 control Instructions Manual

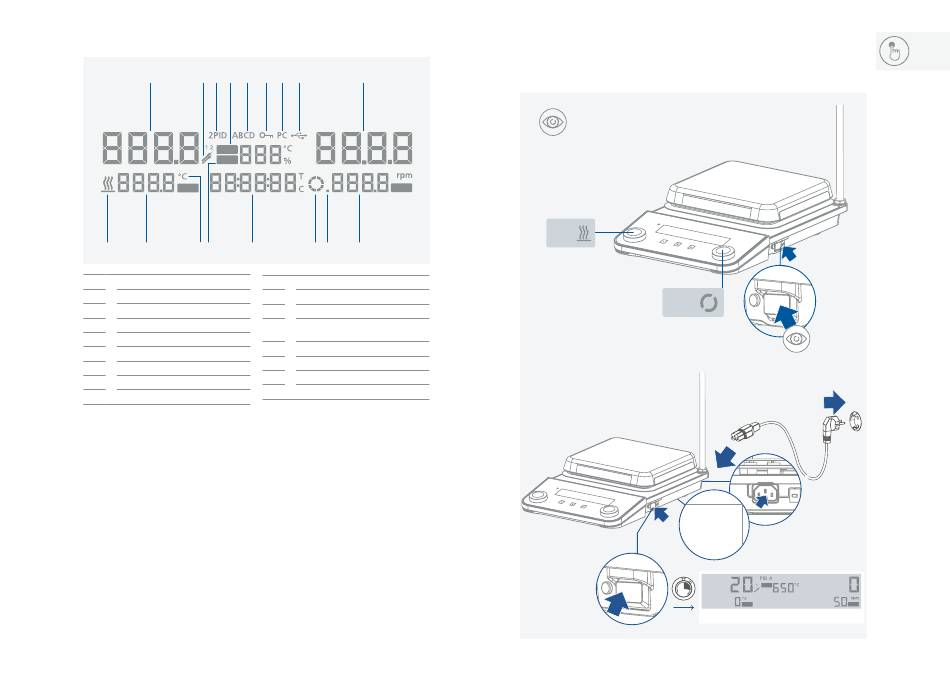

/// Display
07 14 | 13 09 11 10 15 17 16
SET
06 02 05 12
01 Set speed value
02 Set temperature value
03 Motor running / rotation direction
04 Timer / counter
05 Temperature unit
06 Heating function activated
07 Actual temperature value
08 Actual speed value
09 Temperature control mode
16
08
SAFE
VISC
SET
01
04 03 18
10 Operating mode
11 Safety circuit temperature
12 Viscosity trend value
13 | PT 1000 temperature sensor connected
14 ETS-D5 / ETS-D6 connected
15 All parameters locked
16 USB connection with PC
17 Connection with PC established
18 Intermittent mode activated

Operation

/// Start-up
(°C)
(rpm)
220 - 230 V ~
50/60 Hz
1020 W
IP 21
ON
4.
OFF
1.
3.
2.
SAFE
SET SET
Temp 0...500 °C Speed 0...1500 rpm
