Summary of Contents for IKA C-MAG HS 4 digital

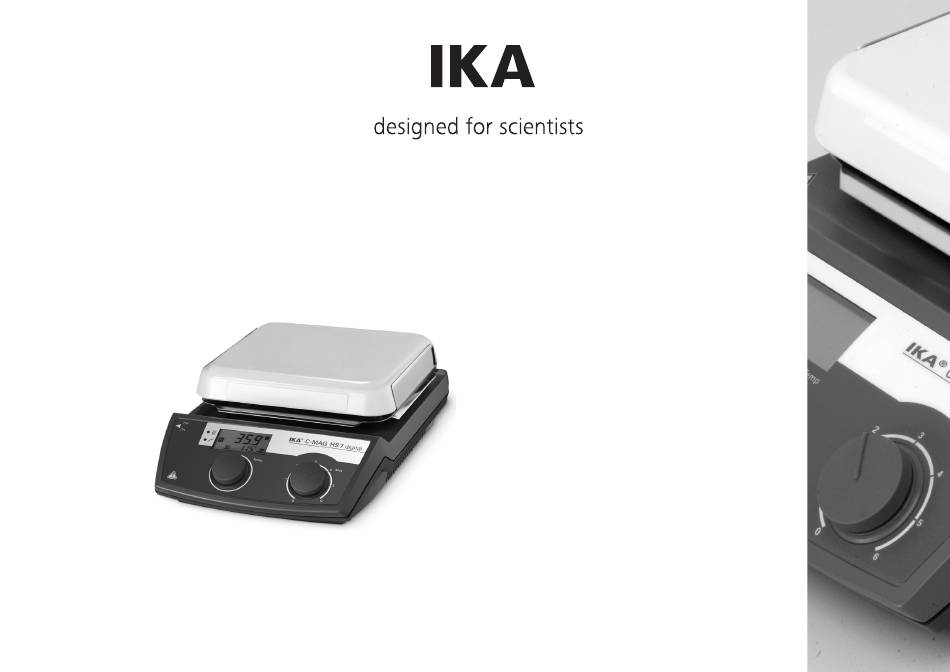

  • Page 1 Betriebsanleitung Ursprungssprache IKA C-MAG HS 4 digital Operating instructions IKA C-MAG HS 7 digital Mode d’emploi IKA C-MAG HS10 digital Instruções de operação Руководство по эксплуатации RU 使用说明 取扱説明書 사용 설명서 Indicationes de seguridad Veiligheidsinstructies Avvertenze per la sicurezza Säkerhetsanvisningar...
  • Page 2: Table Of Contents

    safety measures must be applied, e.g. working under a fume hood. Contents › To avoid body injury and property damage, observe the relevant safety and accident prevention measures when processing hazardous materials. › Notice! Set up the device in a spacious area on an even, stable, clean, Page non-slip, dry and fireproof surface.
  • Page 3: Unpack

    /// Accessories - Please unpack the device carefully › Safe operation is guaranteed only with the use of original IKA accessories. - In the case of any damage a fact report must be set › Ensure that the external temperature sensor is inserted into the medium immediately (post, rail or forwarder) to a depth of at least 20 mm when connected.
  • Page 4: Setting Operating Modes

    The settings are preset and not changeable. For changing the settings select the operating mode A or B. In accordance with IKA Terms and Conditions of Sale, the warranty peri- Changing the operating mode od is 24 months. For claims under the warranty please contact your local The operating modes can only be selected successively! dealer.
  • Page 5: Commissioning

    indicate HOT (D) on the display with over 50 °C on • Commissioning the heating plate (in the agitating and stand-by-mode) Commis- Put device switch (A) in the OFF position sioning Plug in (G) mains cable Once connected to the power supply the device is in Error codes “stand-by”...
  • Page 6: Accessories

    Ø 8 mm, length to 50 mm Cleaning Ø10 mm, length to 80 mm For cleaning disconnect the mains plug! Use only cleaning agents which have been approved by IKA to Any other accessories clean IKA devices. stirring bar remover These are: water (containing surfactant) and isopropyl alcohol.
  • Page 7: Technical Data

    Technical data Temperature control in the medium with PT 1000 temperature sensor Minimum depth of immersion sensor Overvoltage category Contamination level Measuring accuracy ± 0,2 + sensor tolerance Operation at a terrestrial altitude max. 2000 DIN IEC 751 class A Dimensions (W x D x H) HS 4 150 x 260 x 105 Setting accuracy...

This manual is also suitable for:

C-mag hs 7 digitalC-mag hs10 digital
