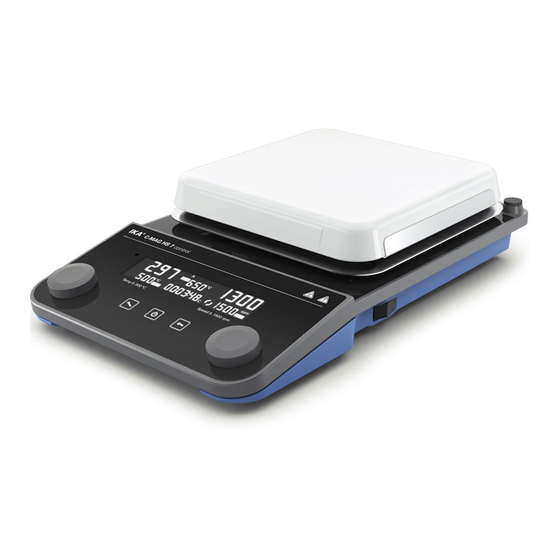

IKA C-MAG HS 7 control Instructions Manual

IKA C-MAG HS 7 control Instructions Manual

Hide thumbs Also See for C-MAG HS 7 control:

Advertisement

Quick Links

C-MAG HS 7 control

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C-MAG HS 7 control and is the answer not in the manual?

Questions and answers

Summary of Contents for IKA C-MAG HS 7 control

  • Page 1 C-MAG HS 7 control...
  • Page 2 ENGLISH...
  • Page 3: Table Of Contents

    EU Declaration of conformity �������������������������������������������������������������6 Explication of warning symbols ��������������������������������������������������������� 6 Safety instructions ����������������������������������������������������������������������������� 7 Intended use ����������������������������������������������������������������������������������� 10 Unpacking �������������������������������������������������������������������������������������� 11 Installation �������������������������������������������������������������������������������������� 12 Fig. 1 Operator panel and display ������������������������������������������������������������� 15 Operation ��������������������������������������������������������������������������������������� 17 Interfaces and outputs �������������������������������������������������������������������� 29 Maintenance and cleaning ��������������������������������������������������������������...
  • Page 4: Eu Declaration Of Conformity

    EN ISO 12100� › Ensure that only trained staff work with the device� A copy of the complete EU Declaration of Conformity can be requested at sales@ika�com� › Follow the safety instructions, guidelines, occupational health and safety and accident prevention regulations�...
  • Page 5 - flammable materials, - combustible media with a low boiling temperature, › Safe operation is guaranteed only with the use of original IKA accessories� - glass breakage, › Ensure that the external temperature sensor is inserted into the medium to a depth of at - incorrect container size, least 20 mm when connected�...
  • Page 6: Intended Use

    › Indoor environments similar to that a laboratory of research, teaching, trade or industry area� › The safety of the user cannot be guaranteed: C-MAG HS 7 control - if the device is operated with accessories that are not supplied or recommended by the manufacturer, - if the device is operated improperly or contrary to the manufacture’s specifications,...
  • Page 7: Installation

    Installation /// Assembling support rod / extension etc� › Review the mounting and safety instructions of the IKA boss head clamp prior to using it� (see “Accessories”) › The device must not be suspended from the support rod! Risk of tipping! ›...
  • Page 8: Operator Panel And Display

    Operator panel and display /// Operator panel Main switch (left « on, right « off) Standby LED Adjustable safety circuit Power socket Rotating / pressing knob - Temperature USB Interface setting RS 232 Interface Rotating / pressing knob - Speed setting Connection for PT 1000 temperature “Menu“...
  • Page 9: Operation

    /// Display Operation /// Start-up 14 | 13 09 11 10 15 17 16 SAFE VISC (°C) Set speed value Operating mode Set temperature value Safety circuit temperature (rpm) Motor running / rotation direction Viscosity trend value Timer / counter 13 | PT 1000 temperature sensor connected ETS-D5 / ETS-D6 connected...
  • Page 10 /// Stirring /// Heating Setting the safety temperature limit: › Set the speed using the rotating / pressing knob (D)� The set speed value is shown on the right of the display� The maximum achievable heating plate temperature is restricted by an adjustable safety tem- perature limit�...
  • Page 11 › The set and actual temperature values are shown permanently on the display� › When the heating function is switched on, the “Heating function activated” symbol (°C) displayed� › When the device is switched off while the heating plate temperature is higher than 50 °C, the display shows “Hot!”...
  • Page 12 /// Menu structure /// Menu details Operating mode: Mode A: All settings will be stored if the device is switched off or disconnected from the power supply� The stirring and heating functions will be set to OFF when the device is powered on� The safety Factory settings circuit can be set or modified�...
  • Page 13 Intermittent mode / Rotation direction: Safe / Visc: Intermittent mode: Once the “VISC / SAFE“ has been set to “VISC“, the viscosity trend value will be shown on the In intermitted mode, the stirring function is interrupted cyclically� The run time (0 / 10 sec – 10 display�...
  • Page 14 Probe cal. “EXT” temp. 1st temp. 1st speed SAFE SAFE SAFE SAFE SAFE = 1st temp. = 2nd temp. 2nd temp. “EXT“ temp. SAFE Software version: Turn the rotating / pressing knob (D) to change the menu item to ”Software version”� /// Timer / Counter ›...
  • Page 15: Interfaces And Outputs

    Notice! Install the driver by running the setup file� Then connect the IKA device to the PC via the USB › From each state of the timer / counter, press the button (F) for 2 seconds to exit the timer / data cable and follow the instructions�...
  • Page 16 (“watchdog time”), the heating and stirring functions are switched off in accordance with the set “watchdog” function or are changed to the The NAMUR commands and the additional specific IKA commands commissioning serve only set target values�...
  • Page 17: Maintenance And Cleaning

    › For cleaning disconnect the mains plug! Error code | Causes | Effect | Solutions › Use only cleaning agents which have been approved by IKA to clean IKA devices� These are: water (containing surfactant) and isopropyl alcohol� Er02 - Watchdog error ›...
  • Page 18 Er06 - Interruption of the safety circuit Er26 – Plate temperature > plate safety temperature (more than 40 K) Causes › break in safety circuit Causes › irregular temperature distribution across heating plate due to sporadic heat dissipation Effect › heating switched off ›...
  • Page 19: Technical Data

    Technical data General data Heating function Voltage 220 ��� 230 VAC ± 10 % Heat output 1000 W 115 VAC ± 10 % Heating temperature range RT + device self-heating ��� 500 °C 100 VAC ± 10 % Frequency 50 / 60 Hz Temperature setting range 0 ���...
  • Page 20: Warranty

    Warranty › In accordance with IKA warranty conditions, the warranty period is 24 months� For claims under the warranty please contact your local dealer� You may also send the device direct to our factory, enclosing the delivery invoice and giving reasons for the claim� You will be liable for freight costs�...
  • Page 21 Phone: +84 28 38202142 Phone: +66 2059 4690 Phone: +90 216 394 43 43 eMail: sales�lab-vietnam@ika�com eMail: sales�lab-thailand@ika�com eMail: sales�turkey@ika�com Discover and order the fascinating products of IKA online: www.ika.com IKAworldwide IKAworldwide /// #lookattheblue @IKAworldwide Technical specifications may be changed without prior notice�...
