RNA ESK 2000 Operating Instructions Manual

For vibratory drive systems
Hide thumbs Also See for ESK 2000:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Instructions
Controller
for vibratory drive systems
ESK 2000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESK 2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RNA ESK 2000

Summary of Contents for RNA ESK 2000

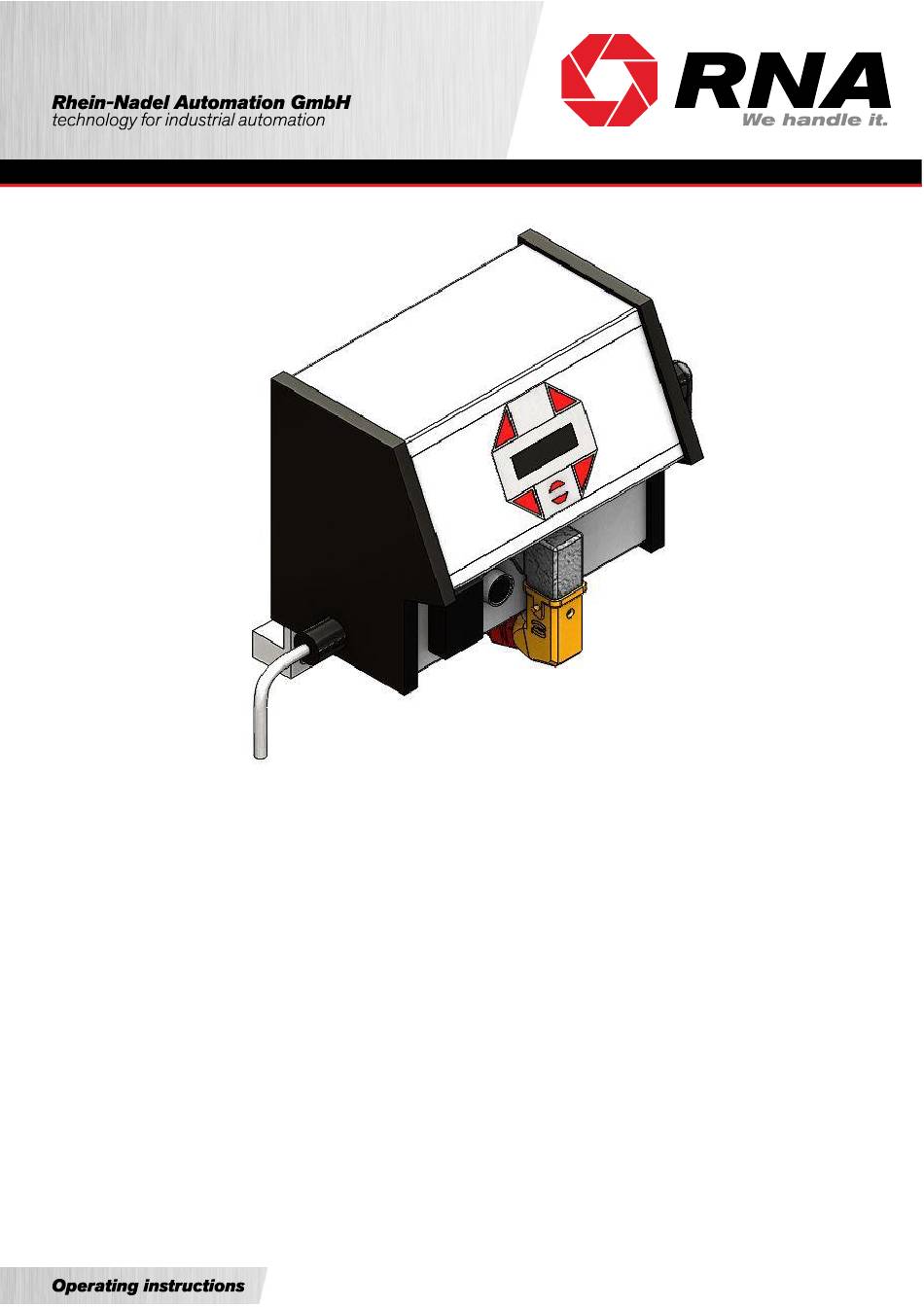

  • Page 1 Operating Instructions Controller for vibratory drive systems ESK 2000...

  • Page 2: Table Of Contents

    Table of Contents About this document ......................4 Safety directives ........................4 2.1. Design of safety directives ....................4 2.2. Fundamental safety directives .................... 4 2.3. Personnel ..........................4 2.4. Intended use ........................5 2.5. Residual hazards ........................ 5 2.5.1. Device ..........................
  • Page 3 Declaration of Conformity According to the Low-Voltage Directive 2014/35/EU and Electromagnetic Compatibility Directive 2014/30/EU We hereby declare that the product meets the following requirements: Low-Voltage Directive 2014/35/EC Electromagnetic Compatibility Directive 2014/30/EU Applied harmonised standards: DIN EN 60204 T1 EN 61439-1 Note: Rhein-Nadel-Automation ---------------------------------...

  • Page 4: About This Document

    1. About this document Attention Read this document carefully and observe the safety directives before commencing any work. Document description: This document provides assistance in choosing your product. You will also find information on mechanical and electrical installation, operation, product extensions and accessories. Non-observance may cause trouble with the product or the environment, reduce the product lifetime or lead to other damage.

  • Page 5: Intended Use

    Use of the product in living areas may lead to EMC disturbance. The user is responsible for taking interference suppression measures. • They are optimised for operation of RNA bowl feeders and linear feeders. Observe the limits indicated in the technical specification. Attention! •...

  • Page 6: Product Information

    3. Product information 3.1. Characteristic features The compact controller is designed for operation of a vibratory or belt feeder drive system. The unit offers the following characteristic features: One feed rate output: Bowl feeder, linear feeder max. 10A, variable or AC capacitor motor max. 3A, not variable Two sensor amplifiers with independently adjustable timers (On/Off delay).

  • Page 7: Accessories

    4.1. Modes of operation RNA vibratory drive systems employ mechanical spring vibrators which are set to a vibrating frequency near the mains frequency or near double mains frequency depending on weight and/or size. This is why two modes of operation are possible:...

  • Page 8: Automatic Mode Change

    Vibratory drive systems by RNA do not require the operator to take care of selecting the right operating mode. The operating mode is determined by a code in the RNA vibrating drive connector. A wire jumper from pin 3 to 4 in the connector switches the controller to mode 2: 100 or 120 Hz.

  • Page 9: Sensor Connection

    4.4. Sensor connection The controller has two sensor inputs which can be used for accumulation checking and/or level monitoring purposes. You can connect sensors of type NPN or PNP. Floating (optical EGF40 Proximity switch contact sensor w/o Proximity General PNP amplifier) switch General output...

  • Page 10: Status Outputs And Relays

    4.5. Status outputs and relays The status outputs are used for remote diagnostics of the controller status or of the links of several controllers with one another. They are designed as freely available NPN-doped transistor circuits and they are floating. With the status output READY the transistor circuit is switched through whenever the controller is connected to power supply and switched on by its power switch closed.

  • Page 11: Starting-Up The Controller

    The controller display (membrane keypad) On / Off Pressing this button switches off all connected devices. The display shows "OFF". The controller remains ready for operation. Cursor up and cursor down Use these buttons to scroll through the controller menu or set the parameters. Enter Press this button to acknowledge the parameters entered with the cursor.

  • Page 12: Description Of Individual Codes For Controller Programming

    Definition: 411. 57. 10. 23.11.99 Device type: 59 = ESK 2001 Date 58 = ESG 2001 Version No. 57 = ESK 2000 Device type 56 = ESG 2000 Internal No. Setting the feed rate by external voltage input 0-10V or potentiometer KANAL l...

  • Page 13: Application-Specific Change Of Default Settings

    KANAL 2 main menu CODE (*) For RNA feeders with 200 V magnets = 90 % 5.5.2. Code C003 Seal setpoint Objective: Sealing-in the setpoints in the main menu. A direct change of the values is no longer possible. You can only make changes now through code C001.

  • Page 14: Code C006 Sensor Linkage

    5.5.4. Code C006 Sensor linkage Objective: Linking of the two previously activated sensor inputs. Select code Set code KANAL l KANAL 2 CODE Code C006 KANAL l KANAL 2 CODE You can activate only one of the eight sensor links. AND logic with blowing-off I = active KANAL l...

  • Page 15: Code C008 Cycle Monitoring

    Level check with indicator light Sensor 2 operates relay K1 following the delay period entered (C005). Application: Sensor 2 is used as a level checker (e.g., LC-N 24V DC). Relay K1 operates an indicator light: Bowl feeder or linear feeder empty. 5.5.5.

  • Page 16: Code C200 Inhibiting All Code Entries

    5.5.7. Code C200 Inhibiting all code entries Objective: An (accidental) change of the set values by the user is not possible any more. Select code Set code KANAL l KANAL 2 CODE Code C200 KANAL l KANAL 2 CODE I = enable Inhibiting the setting functions KANAL l 0 = disable...

  • Page 17: Code C210 Retrieving Parameters

    5.5.10. Code C210 Retrieving parameters Objective: Resetting to default values or retrieving stored application-specific settings Select code Set code KANAL l KANAL 2 CODE Code C210 KANAL l KANAL 2 CODE Default setting KANAL l KANAL l KANAL 2 KANAL 2 CODE CODE Application-specific parameters...

  • Page 18: Dimensioned Drawing

    6. Dimensioned drawing Rhein-Nadel Automation GmbH VT-BA-ESK2000_EN-2019 / 22.08.2019 SJ...

  • Page 19: Connection Diagram

    7. Connection diagram Rhein-Nadel Automation GmbH VT-BA-ESK2000_EN-2019 / 22.08.2019 SJ...
  • Page 20 Headquarters Manufacturing and Sales Rhein-Nadel Automation GmbH Reichsweg 19-23 D-52068 Aachen Phone: +49 (0) 241-5109-0 Further manufacturing sites E-Mail: vertrieb@RNA.de of the RNA Group www.RNA.de Manufacturing Lüdenscheid branch Further RNA group companies: Rhein-Nadel Automation GmbH Nottebohmstraße 57 D-58511 Lüdenscheid Phone: +49 (0) 2351 41744...
