- Page 1 Operating Instructions for the Control Units of Vibratory Drives ESK 2002 Rhein-Nadel Automation GmbH Rhein-Nadel Automation GmbH 14.04.2014 VT-BA ESK2002-GB...
-
Page 2: Table Of Contents
Table of contents Chapt........................Page Technical datas....................Safety notes....................Commissioning instructions ................Operation Dimensional drawing..................Connection diagram Sensors..................Declaration of conformity as defined by Low voltage directive 2014/35/EU and EMC directive 2014/30/EU Herewith we declare that the product complies with the following provisions: Low voltage directive 2014/35/EU EMC directive 2014/30/EU applied harmonized standards:... -
Page 3: Technical Datas
AC capacitor motor. Control unit ESK 2002-10 manages a total output of 10 amps and control unit ESK 2002-16 a total output of 16 amps. The unit has the following performance characteristics: ... -
Page 4: Safety Notes
Steps must be taken to ensure that all persons working with this control unit are familiar with the safety regulations and observe them. The device described in this manual is a control unit for operating RNA bowl feeders and linear feeders. The limit val- ues specified in the technical data must be observed. - Page 5 OPERATING MODE Bowl feeder frequency coding in connector. Operating mode 2 With bridge: 100 / 120Hz With bridge: 6000 / 7200 oscillations/min Operating mode 1 Without bridge: 50 / 60Hz Without bridge: 3000 / 3600 oscillations/min Sensor Inputs and Sensor Links The control unit has two built-in sensor inputs.
- Page 6 14.04.2014 Rhein-Nadel Automation GmbH VT-BA ESK2002-GB...
-
Page 7: Operation

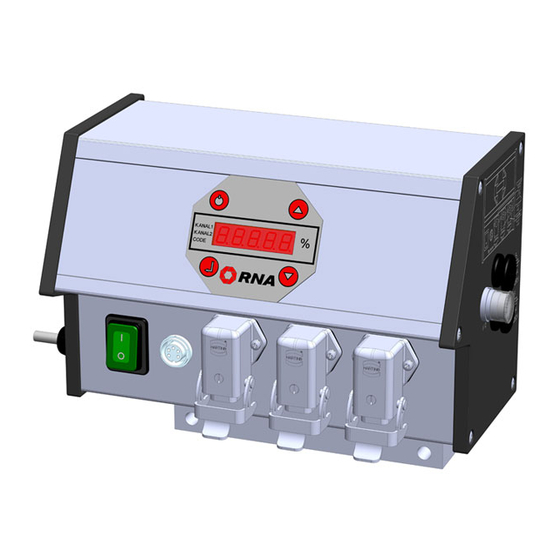

Operation General On/off Cursor up Enter Cursor down main switch channel 1 channel 2 channel 3 Control unit plug connections Mains power The control unit is isolated from the mains with a double-pole switch. switch XS 3 Plug connector for sensors Channel 1 Plug connector for bowl feeder ( <... - Page 8 Switching on the Control Unit Switch on the control unit with the mains power switch. The main menu will appear in the display showing the last set- point set in channel 1 (bowl feeder feed rate). KANAL l KANAL 2 CODE The following displays may also appear depending on the circuit state of the unit.
- Page 9 Description of the Individual Codes for Programming the Control Unit Settings for channel 1 KANAL l KANAL 2 The following functions can be set or limited for channel 1 in this submenu: CODE - vibration amplitude - signal direction of the remote control - remote control - soft start time and soft stop time Settings for channel 2...
- Page 10 CODE * RNA-Feeder with 200 V = 90 % 4.5.2 Code C002 for Channel 2 (power output 2 Vibration hopper or belt hopper) Aim: Setting and limiting the vibration amplitude, the remote control, the soft start time and the soft stop time.
- Page 11 KANAL 2 main menu CODE * RNA-Feeder with 200 V = 90 % 4.5.4 Code C003 Lock Setpoint Aim: Blocking the setpoints in the main menu. The values can no longer be changed directly. Changes can only be made using code C001, code C002 and code C012.
- Page 12 4.5.6 Code C006 Sensor Links Aim: Linking two previously activated sensor inputs. Select code set code KANAL l KANAL 2 CODE Code C006 KANAL l KANAL 2 CODE Only one of the eight sensor links can be set active. And (und) link with blow-off of the out- I = active KANAL l let tracks...
- Page 13 Min/Max Connection of both sensor inputs The bowl feeder switches of, when both sensor inputs are assigned. When both sensors are free, the bowl feeder (channel 1) switches on. Relay K1 switches with switching off of the bowl feeder. Relay K2 switches 4 sec later (Blow-off switching) Level control for the hopper with external control Sensor 2 switches relay K1 according to the entered delay time (C005).
- Page 14 Aim: Checking the set vibration frequency and the sensor inputs. Select code Set code KANAL l KANAL 2 CODE Code C009 KANAL l KANAL 2 CODE Remote control signal I = active KANAL l Channel 1 0 = inactive KANAL 2 CODE Vibration frequency channel 1 I = 50 Hz...
-
Page 15: Dimensional Drawing
Aim: Resetting to factory settings or restoring the stored user parameters. Select code Set code KANAL l KANAL 2 CODE Code C210 KANAL l KANAL 2 CODE Factory setting KANAL l KANAL l KANAL 2 KANAL 2 CODE CODE User parameters KANAL l KANAL l KANAL 2... -
Page 16: Connection Diagram Sensors
Connecting Diagram 14.04.2014 Rhein-Nadel Automation GmbH VT-BA ESK2002-GB... - Page 17 Rhein-Nadel Automation GmbH Reichsweg 19/23 D - 52068 Aachen Tel (+49) 0241/5109-159 Fax +(49) 0241/5109-219 Internet www.rna.de Email vertrieb@rna.de Rhein-Nadel Automation GmbH Zweigbetrieb Lüdenscheid Nottebohmstraße 57 D - 58511 Lüdenscheid Tel (+49) 02351/41744 Fax (+49) 02351/45582 Email werk.luedenscheid@rna.de...
