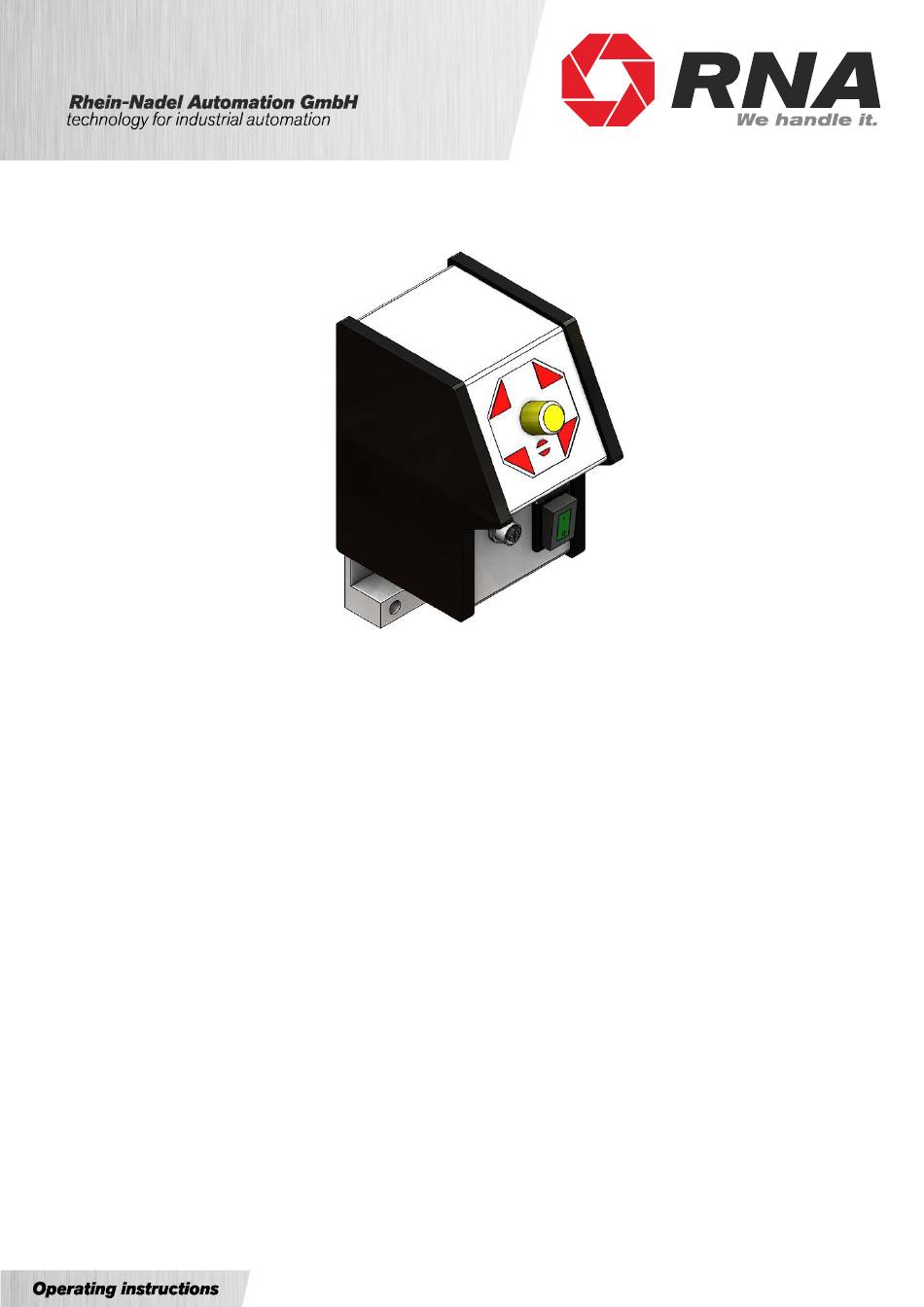

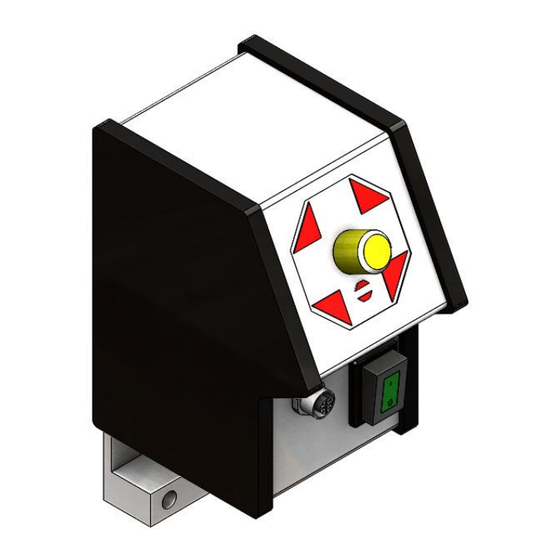

  • Page 1 Operating Instructions Controllers Belt Drives EBC 3000...

  • Page 2: Table Of Contents

    Table of Contents About this document ......................4 Safety information ........................4 Design of safety directives ....................4 Fundamental safety directives ..................4 Personnel ......................... 4 Intended use ........................5 Residual hazards ......................5 2.5.1 Device ........................5 2.5.2 Protection of the drive system ..................6 2.5.3 Degree of protection - Protection of persons and equipment ........
  • Page 3 Declaration of Conformity According to the Low-Voltage Directive 2014/35/EU and Electromagnetic Compatibility Directive 2014/30/EU We hereby declare that the product meets the following requirements: Low-Voltage Directive 2014/35/EC Electromagnetic Compatibility Directive 2014/30/EU Applied harmonised standards: DIN EN 60204 T1 EN 61439-1 Remarks: Rhein-Nadel-Automation ---------------------------------...

  • Page 4: About This Document

    1. About this document Attention Read this document carefully and observe the safety directives before commencing any work. The information given in this document reflects the following version: Product from software version Date EBC3000 2019-03-01 Document description: This document provides assistance in choosing your product. You will also find information on mechanical and electrical installation, operation, product extensions and accessories.

  • Page 5: Intended Use

    Use of the product in living areas may lead to EMC disturbance. The user is responsible for tak- ing interference suppression measures. • The devices are designed for operation of RNA’s small belt conveyors. Observe the limits indi- cated in the technical specification. Attention! •...

  • Page 6: Protection Of The Drive System

    3. Product information 3.1 Functional description The EBC 3000 controller was developed for operation of RNA narrow-track feeder FP 15. Thanks to a form factor close to 1, its pulse width modulation feature generates a very high efficiency and an excellent starting behaviour.

  • Page 7: Internal Connections And Adjustments

    3.3 Internal connections and adjustments The right side panel of the enclosure needs to be opened for following adjustments/work items. Attention! Observe the safety instructions! Be sure to pull the mains plug before opening the controller! Wait 10 minutes until the power supply unit is discharged. The figure below shows the locations of terminals and potentiometers.

  • Page 8: Factory Default Settings

    3.4 Factory default settings The controllers are factory-set as follows: • Minimum output voltage: 4.9 Volts; • Maximum output voltage: 25.5 Volts; • Maximum load current: 1.5 Amps In special situations, or following modifications, it may be necessary to readjust these settings. Be sure to observe the following: For FB 15 belt feeders, the maximum output voltage and maximum load current must not be set higher and the minimum output voltage must not be set lower than specified in the list above.

  • Page 9: External Setpoint With 0-10 V Or 0-20Ma Signal For Speed Setting

    3.6 External setpoint with 0-10 V or 0-20mA signal for speed setting. The connection is made at terminal block XK1 For 0-10V setpoint signal: connect to terminal XK1.3 (0-10V) and terminal XK1.5 (GND) For 0-20mA setpoint signal: connect to terminal XK1.4 (0-20mA) and terminal XK1.5 (GND) If an external setpoint is used, either: Disconnect the front-mounted potentiometer from the circuit board and secure the cable with a ca- ble tie,...
  • Page 10 Headquarters Rhein-Nadel Automation GmbH Reichsweg 19-23 D-52068 Aachen Phone: +49 (0)241-5109-0 E-mail: vertrieb@RNA.de www.RNA.de Further manufacturing sites Further RNA group companies: of the RNA Group Lüdenscheid site PSA Zuführtechnik GmbH Rhein-Nadel Automation GmbH Steinäckerstraße 7 Nottebohmstraße 57 D-74549 Wolpertshausen D-58511 Lüdenscheid...
