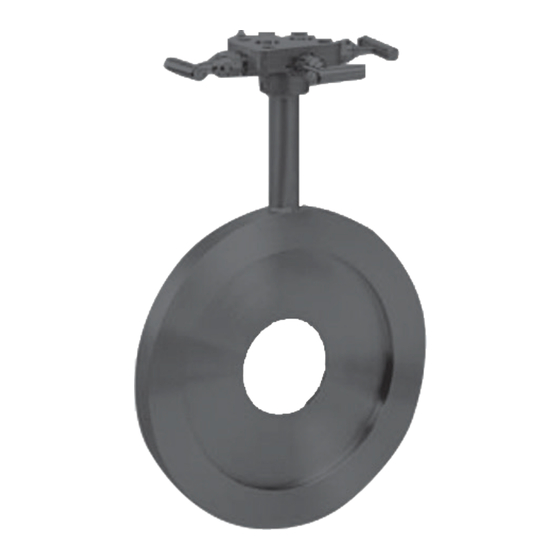

Compact orifice flow meter

Advertisement

Quick Links

Quick Start Guide
Tek-DP 1611I
Compact Orifice Flow Meter
Assembly
796 Tek Drive, Crystal Lake, IL 60014 USA
+1 847 857 6076 | +1 847 655 7428
+1 847 655 6147
www.tek-trol.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tek-DP 1611I and is the answer not in the manual?

Questions and answers

Summary of Contents for TEKTROL Tek-DP 1611I

  • Page 1 Quick Start Guide Tek-DP 1611I Compact Orifice Flow Meter Assembly 796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 857 6076 | +1 847 655 7428 +1 847 655 6147 www.tek-trol.com...
  • Page 2: Before You Begin

    Installation of the transmitter in an explosive environment must be in accordance with the appropriate local, national and international Standards, codes and practices. Review the approvals section of the Tek-DP 1611I Compact Orifice Flow Meter reference manual for any restrictions associated with a safe installation.
  • Page 3: Installations

    Technology Solutions 4.2 Transportation Check the Tek-DP 1611I Compact Orifice Flow Meter for any damage that may have been caused during transport. Obvious damages must be reported immediately. • Avoid impact shocks to the device and prevent it from getting wet during transportation.
  • Page 4 Assemble the Tek-DP 1611I Compact Orifice Flow Meter according to the guidelines provided below : NOTE Make sure that the flow arrow stamped on the Tek-DP 1611I Compact Orifice Flow Meter is pointing in the same direction as the process flow.
  • Page 5: Electrical Connections

    Technology Solutions 6.Electrical Connections 6.1 Liquid Measurement The Tek-DP 1611I Compact Orifice Flow Meter should not be used in vertical liquid or steam applications if the fluid is flowing down. 6.2 Gas Measurement Due to drain vent orientation, a direct mount 1611I Compact Orifice Flow Meter should not be used in vertical gas applications if the fluid is flowing up.
  • Page 6: Steam Measurement

    Check flow direction Check that the flow arrow on the neck of the Tek-DP 1611I Compact Orifice Flow Meter points in the direction of flow. If the DP transmitter is remote mounted from the Tek-DP 1611I Compact Orifice Flow Meter , be sure that the impulse tubing is connected correctly from the Tek-DP 1611I Compact Orifice Flow Meter to the DP transmitter (high to high and low to low).
  • Page 7: Troubleshooting

    Blocked upstream piping  and/or blocked impulse piping Check impulse piping for blockage  Check for disabled span adjustment  Check electronics security switch  Verify calibration settings (4 and 20 mA points)  Contact factory for replacement  Tek-DP 1611I...
  • Page 8 Quick Start Guide Symptom Possible cause Corrective action Check impulse piping for blockage Low reading/high Blocked upstream piping  reading and/or blocked impulse piping Check test equipment  Perform full sensor trim (if software revision is 35 or higher)  Contact factory for replacement ...
  • Page 9 Quick Start Guide Technology Solutions Tek-Trol LLC 796 Tek Drive Crystal Lake, IL 60014, USA +1 847-857-6076 tektrol@tek-trol.com www.tek-trol.com Tek-...
