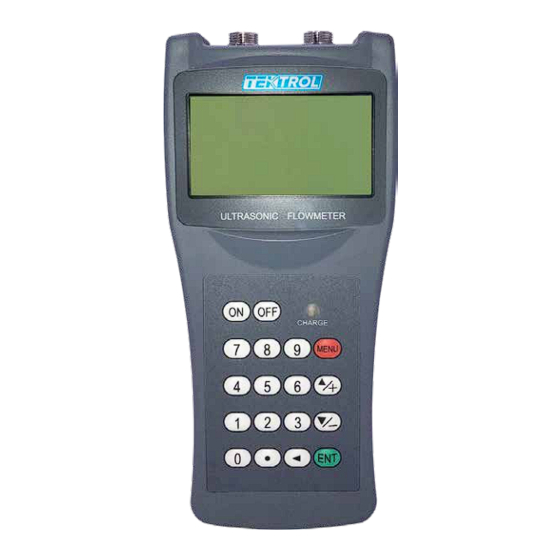

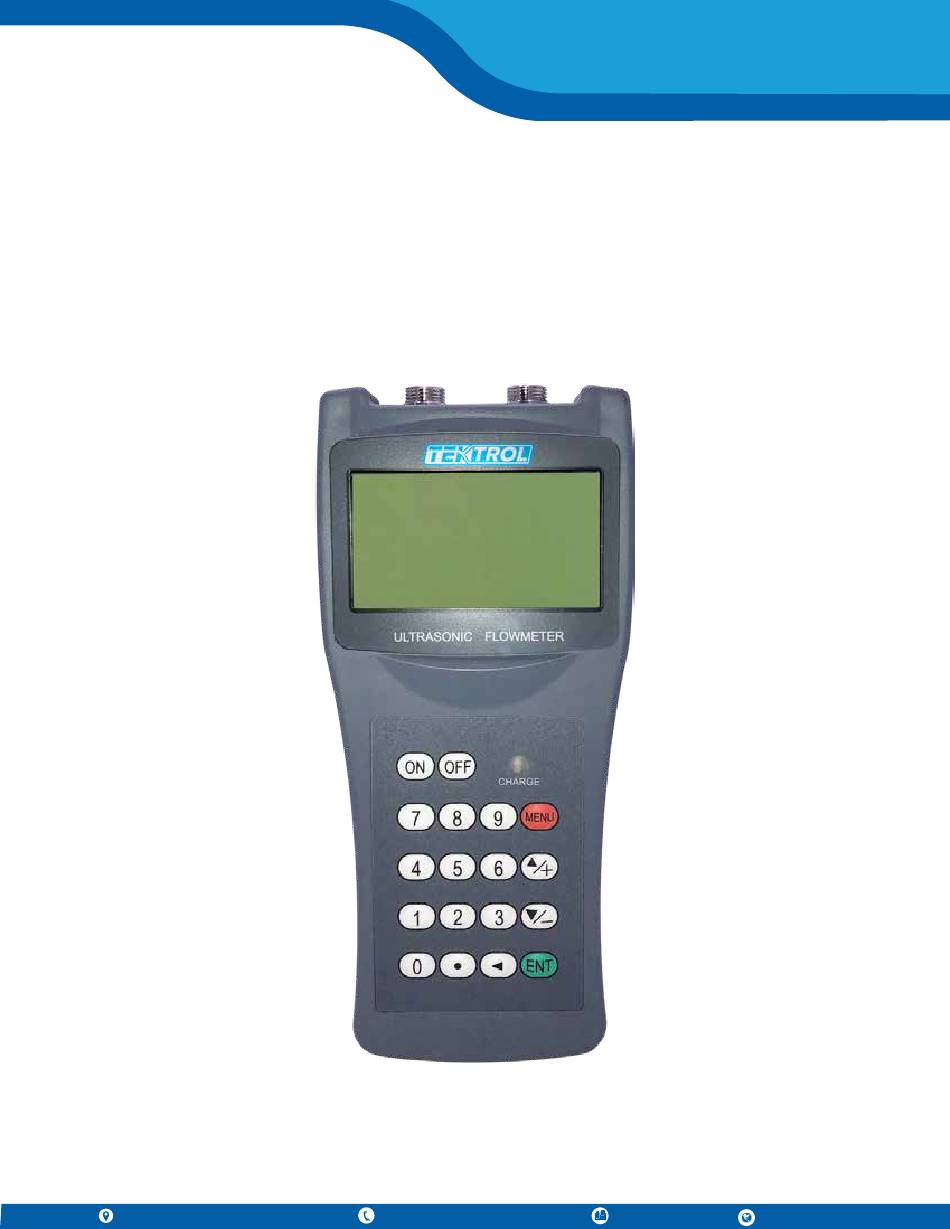

- Page 1 Quick Start Guide Tek-Clamp1200A-100H Handheld Ultrasonic Flow Meter 796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 857 6076 | +1 847 655 7428 +1 847 655 6147 www.tek-trol.com...
-
Page 2: Before You Begin
Quick Start Guide 1. Before you begin Make sure the transmitter is installed by qualified personnel and in accordance with the applicable code of practice. Disconnect the power before servicing, to prevent ignition of flammable or combustible atmospheres. Turn off the main power source to the Tek-Clamp 1200A -100H band ensure lines to any other external power sources are disconnected, or not powered while wiring the flow meter. -
Page 3: Dimensional Drawing
Technology Solutions 3. Dimensional Drawing Fig 1: Top View of 1200A-100H Handheld Ultrasonic Flow Meter Technology Solutions Fig 2: Front View of 1200A-100H Handheld Ultrasonic Flow Meter Fig 3: Bottom View of 1200A-100H Handheld Ultrasonic Flow Meter Tek-Clamp1200A-100H... - Page 4 Quick Start Guide 4. Mountings V Method The transducers of the Tek-Clamp 1200A-100H Handheld Ultrasonic Flow Meter mounted by V method. Upstream transducer Downstream transducer Tube wall Lining ±45˚ ±45˚ Transducer spacing Fig 4: V type Mountings of Tek-Clamp 1200A-100H Handheld Ultrasonic Flow Meter The V method is a standard installation method and convenient to use for precise measurement of flow.
- Page 5 Fig 6: W type Mounting of Tek-Clamp 1200A-100H Handheld Ultrasonic Flow Meter Normally, this type of mounting used when the material of pipe is plastic and had diameter of 10 millimeter to 100 millimeter. 5. Display Fig 7: Display for Tek-Clamp 1200A-100H Handheld Ultrasonic Flow Meter Tek-Clamp1200A-100H...
- Page 6 Quick Start Guide 6. Description Transducer Interface Display 4×16 character screen with backlight can display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status etc. Aluminum alloy Carrying Case Fig 8: Description of parts of Tek-Clamp 1200A-100H Handheld Ultrasonic Flow Meter 796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 857 6076 | +1 847 655 7428 +1 847 655 6147...
-
Page 7: Installation Of The Transducers
The length of pipe that is more than 5 times of pipe diameter The length of pipe that is more than 10 times of pipe diameter Fig 9: Installation on Horizontal pipe for Tek-Clamp 1200A-100H Handheld Ultrasonic Flow Meter . Tek-Clamp1200A-100H... - Page 8 Quick Start Guide The top of pipe system Vertical pipe with free exit Fig 10: Incorrect mounting Vertical pipe for Tek-Clamp 1200A-100H Handheld Ultrasonic Flow Meter. • For an open pipe or half full pipe, transducers should be installed at the bottom of the U pipe. Vertical pipe with free exit Fig 11: Correct mounting of vertical pipe for Tek-Clamp 1200A-100H Handheld Ultrasonic Flow Meter.
- Page 9 Tek-Trol Middle East FZE 796 Tek Drive Crystal Lake, IL Florijnstraat 18, 4879 AH SAIF Zone, Y1-067, PO BOX No. 60014, USA Etten-Leur, Netherlands 21125, Sharjah, UAE Sales: +1 847-655-7428 Sales: +31 76-2031908 Sales: +971-6526-8344 Support: +1 847-857-6076 Email: tektrol@tek-trol.com www.tek-trol.com Tek-Clamp1200A-100H...
