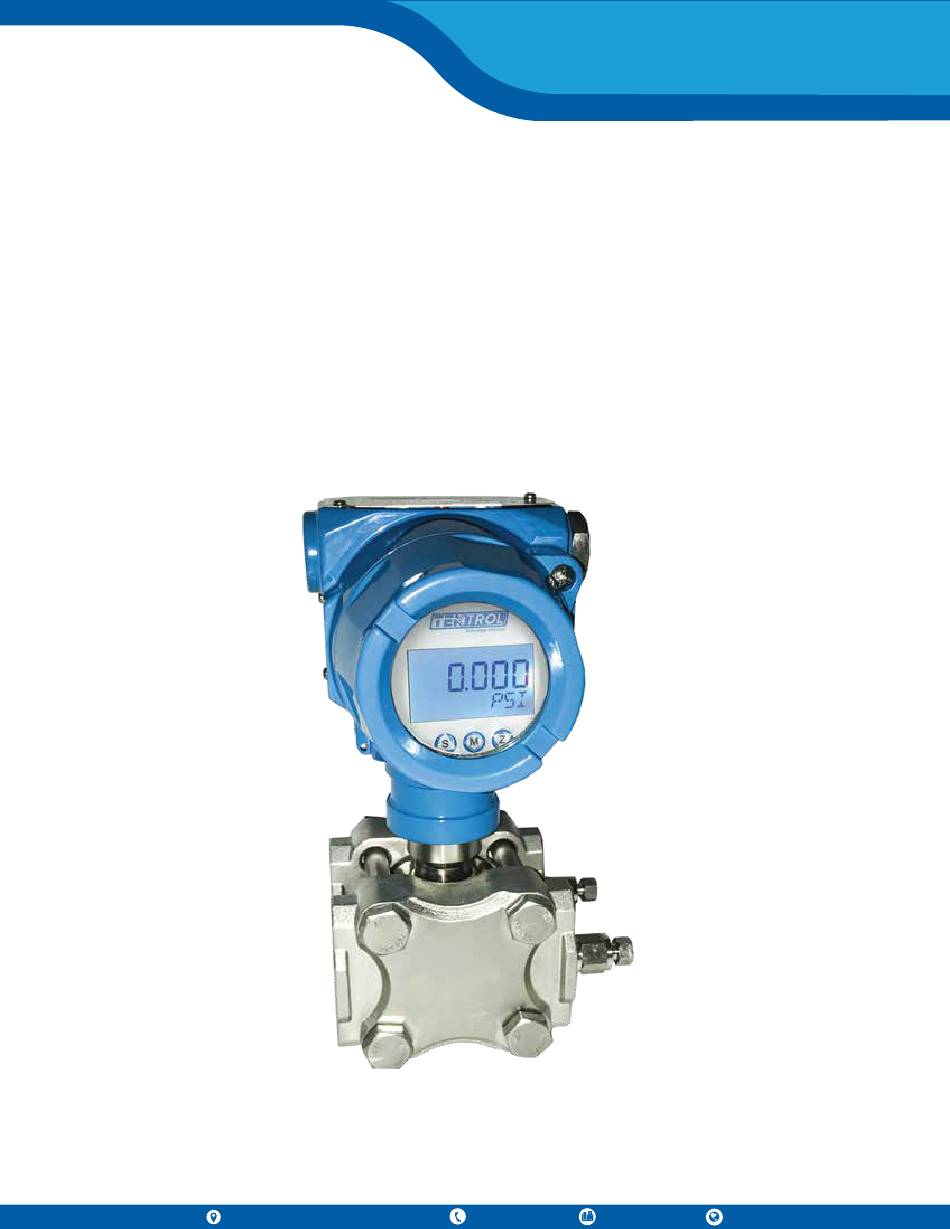

- Page 1 Quick Start Guide Tek-Bar 3110B 796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 857 6076 +1 847 655 6147 www.tek-trol.com...
-
Page 2: Before You Begin
When using the measuring device in hazardous areas, installation must comply with the corresponding national standards and regulations and the Safety Instructions, or Installation or Control Drawings. 2. Unpack Tek-Bar 3110B Smart Di erential Pressure Transmitter 3. Dimensional Drawings Drawing /Dimension with Display 4¼"... - Page 3 The display module is used for eld adjustment to complete the parameters settings and site con guration before measuring. The local display enables all of the important parameters to be read directly at the measuring point and to con gure the device using the function matrix. It has 5-digit LCD display. Tek-Bar 3100 Tek-Bar 3110B...
- Page 4 Quick Start Guide Quick Start Guide 6. Power Supply Wirings Label Two Wires Three Wires Four Wires Power + Power + Power + Power - Power - Power - Signal + Signal + Signal - 1 Power supply+ is connected with transmitter terminals+ 2 Signal+ is connected with transmitter terminals- 3 Signal- is connected with power supply- Transmitter...
-
Page 5: Installation Of Transmitter
Place the taps to the side of the line to prevent sediment deposits on the transmitters process isolators • Mount the transmitter beside or below the taps so gases can vent into the process line • Mount drain/vent the valve upward to allow gases to vent Flow Tek-Bar 3110B... - Page 6 Quick Start Guide Quick Start Guide Gas Flow Measurement • Place taps in the top or side of the line • Mount the transmitter beside or above the taps so liquid will drain into the process line Flow Steam Flow Measurement •...
- Page 7 Technology Solutions 10. Analog button programming menu Keys operation Tek-Bar 3110B...
- Page 8 Quick Start Guide Quick Start Guide Detailed operating instructions www.tek-trol.com 796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 857 6076 +1 847 655 6147...
- Page 9 Technology Solutions Tek-Bar 3110B...
- Page 10 Quick Start Guide Quick Start Guide 11. Modbus Programming Menu Keys operation Detailed operating instructions www.tek-trol.com 796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 857 6076 +1 847 655 6147...
- Page 11 Technology Solutions Tek-Bar 3110B...
- Page 12 Quick Start Guide Quick Start Guide 12. Menu Tree Measuring Interface 5.457 Parameters table Confirm and enter the next menu Con gure display mode Display mode Enter settings Modify parameters Set parameters Display modified Current parameters parameters Percentage Process variable DISP DISP DISP...
- Page 13 Tek-Trol Middle East FZE PO Box 121 Windsor, Colorado Florijnstraat 18, 4879 AH SAIF Zone, Y1-067, PO BOX No. 80550, USA Etten-Leur, Netherlands 21125, Sharjah, UAE Sales: +1 847-857-6076 Sales: +31 76-2031908 Sales: +971-6526-8344 Support: +1 847-857-6076 Email: tektrol@tek-trol.com www.tek-trol.com Tek-Bar 3110B...
