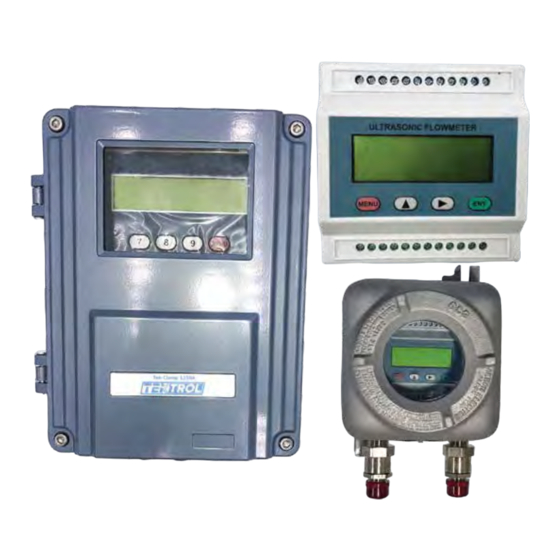

- Page 1 Quick Start Guide Tek-Clamp 1200A Ultrasonic Clamp-On Flowmeter 796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 857 6076 | +1 847 655 7428 www.tek-trol.com +1 847 655 6147...
-
Page 2: Before You Begin
Disconnect the power before servicing, to prevent ignition of ammable or combustible atmospheres. Turn o the main power source to the Tek-Clamp 1200A and ensure lines to any other external power sources are disconnected, or not powered while wiring the owmeter. - Page 3 Technology Solutions 4. Mounting The transducers of the Tek-Clamp 1200A-100F1 can be mounted in 2 ways: the V method and the Z method. V Method The V method is a standard installation method and convenient to use for precise measurement of ow. While installing the two transducers, they are horizontally aligned.
-
Page 4: Power Supply
5. Display The Tek-Clamp 1200A Ultrasonic Flowmeter uses of a 16 key keyboard monitor. The 16 keys include: 10 Digit keys, 2 Up/Down arrow keys, 1 Menu key, 1 Enter key, 1 Decimal Point key and 1 Backspace key. The keyboard allows users to program quickly and easily. - Page 5 Please connect the cables to the RS485 terminal as shown in Power Supplysection of this quick start guide. 9. Con guration The Tek-Clamp 1200A-100F1 can be con gured with the help of a 16 key keyboard monitor. Below, some of the keyboard uses are outlined: •...
- Page 6 Quick Start Guide Quick Start Guide Quick Start Guide Quick Start Guide Quick Start Guide Quick Start Guide Pipe wall Antisust layer The length of pipe that is more than 5 times pf pipe diameter Scaling layer The length of pipe that is more than 10 times pf pipe diameter The top of pipe system Vertical pipe with free exit...
- Page 7 Periodically inspect the power cables, transducer cables, cable glands, and the enclosure for signs of damage. Inspect the transducer installation and mounting hardware for loose connections. Note: For additional information regarding installation, refer to the detailed manual. Note: For error messages and menu window details, refer to the detailed manual. Tek-Clamp 1200A...
- Page 8 Quick Start Guide Technology Solutions 796 Tek Drive Crystal Lake, IL 60014 Tel : +1 847 857 6076, +1 847 655 7428 Fax : +1 847 655 6147 Email: tektrol@tek-trol.com www.tek-trol.com Tek-Clamp 1200A...
