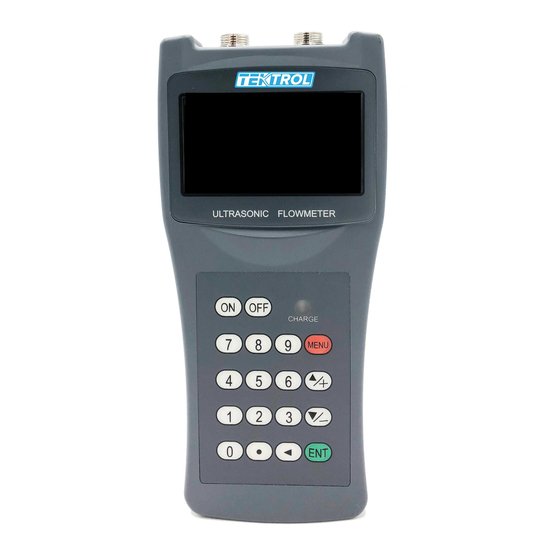

Handheld ultrasonic flow meter

Advertisement

Quick Links

Technology Solutions
T
C
LAMP 1200A-100H
EK-
Handheld Ultrasonic Flow Meter
Instruction Manual
Document Number: IM-1200A-100H
www.tek-trol.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEK-CLAMP 1200A-100H and is the answer not in the manual?

Questions and answers

Summary of Contents for TEKTROL TEK-CLAMP 1200A-100H

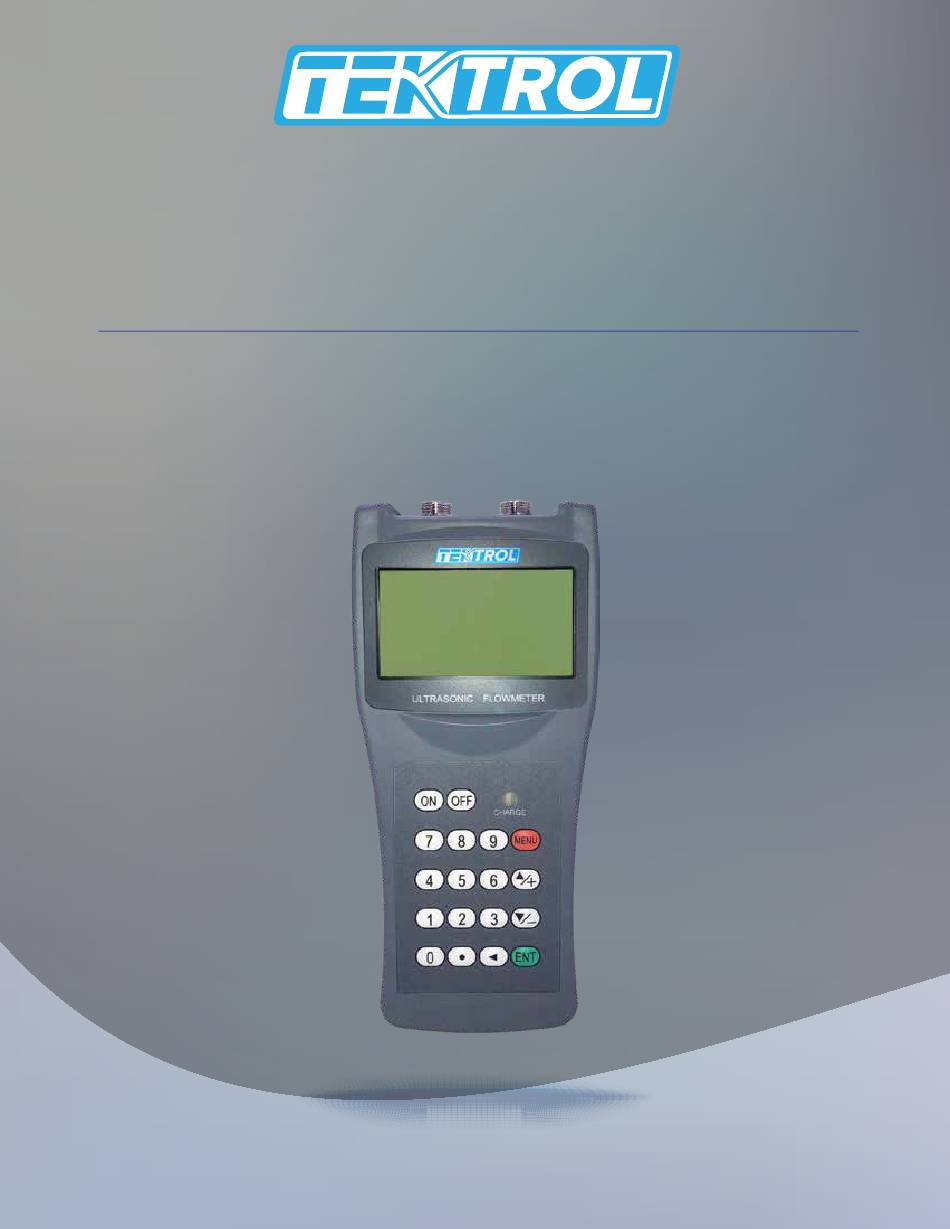

  • Page 1 Technology Solutions LAMP 1200A-100H Handheld Ultrasonic Flow Meter Instruction Manual Document Number: IM-1200A-100H www.tek-trol.com...
  • Page 2 www.tek-trol.com NOTICE Read this manual before working with the product. For personal and system safety, and for optimum product performance, make sure you thoroughly understand the contents before installing, using, or maintaining this product. For technical assistance, contact Customer Support 796 Tek-Drive Crystal Lake, IL 60014 Tel: +1 847 857 6076, +1 847 655 7428...
  • Page 3: Table Of Contents

    Instruction Manual Tek-Clamp 1200A-100H Technology Solutions Table of Contents Safety Instructions ......................2 Intended Use ........................2 Safety Instructions from the Manufacturer ................2 1.2.1 Disclaimer ..........................2 1.2.2 Product Liability and Warranty ....................2 1.2.3 Information Concerning the Documentation ................2 1.2.4...
  • Page 4: Safety Instructions

    1 Safety Instructions 1.1 Intended Use Tek-Clamp 1200A-100H is a Handheld Ultrasonic Flow Meter are used only for measure the flow of liquids in closed pipes, e.g.: Clean water, wastewater etc. The manufacturer is not liable for damage caused by improper or non-designated use.
  • Page 5: Packaging, Transportation And Storage

    Indicates that operating the hardware or software in this manner may damage it or lead to system failure. 1.2.5 Packaging, Transportation and Storage 1.2.5.1 Packaging The original package consists of 1. Tek-Clamp 1200A-100H Handheld Ultrasonic Flow Meter 2. Documentation NOTE Unpack and check the contents for damages or signs of rough handling. Report damage to the manufacturer immediately.
  • Page 6: Transportation

    Transport the product to the installation site using the original manufacturer’s • packing whenever possible. 1.4.3 Storage the Tek-Clamp 1200A-100H is designed for installation and usage purpose in typical commercial/industrial environments. The following considerations must be observed in selecting a location for the meter: The ambient operating temperature range is -22°F (-30°C) to 176°F (80°C).
  • Page 7: Product Description

    It consists of the built-in data logger for over 2000 lines of data and is optional as an external data logger. Tek-Clamp 1200A-100H has a pair of transducers capable of measuring flow rates in pipes from 1/2" (12.5 mm) to 28" (700 mm) at temperatures of between 32 °F (0 °C) to 320 °F (160 °C).
  • Page 8: Specifications

    Instruction Manual Tek-Clamp 1200A-100H Technology Solutions 2.3 Specifications ±1% of reading at rates >0.2 mps Accuracy Velocity 0.03 to 100ft/sec 0.2% Repeatability Measurement Period 0-999 seconds, user-configurable Transit Time Ultrasonic Flow Meter Measurement Principle Portable transmitter weight 514g Weight Package with accessories weight 6kg Volume weight for whole package 12kg 3 AAA built-in Ni-MH batteries 1.2V (for over 12 hours of...
  • Page 9: Dimensional Drawings

    Instruction Manual Tek-Clamp 1200A-100H Technology Solutions 2.4 Dimensional Drawings Fig 2: Top View of 1200A-100H Handheld Ultrasonic Flow Meter Fig 3: Front View of 1200A-100H Handheld Ultrasonic Flow Meter Bottom View Fig 4: Bottom View of 1200A-100H Handheld Ultrasonic Flow Meter...
  • Page 10: Installation

    The axis for measuring electrode shall be approximate to horizontal direction. Tek-Clamp 1200A-100H Handheld Ultrasonic Flow Meter can simplify the ultrasonic flow meter installation process, by shortening installation time and improving installation accuracy. Tek-Clamp 1200A-100H Handheld Ultrasonic Flow Meter installed by two methods: 3.1.1 Clamp on Transducer:...
  • Page 11: Clamp On Mounting Bracket Transducer

    • Several types of bracket Tek-Clamp 1200A - 100H are used to measure temperature range from -22°F to 320°F (-30°C to 160°C) Fig 6: Tek-Clamp 1200A-100H Handheld Ultrasonic Clamp-on mounting bracket transducer 3.2 Requirements for Measuring Flow meter Accuracy • Medium must be conductive.
  • Page 12: Installation Condition

    Instruction Manual Tek-Clamp 1200A-100H Technology Solutions 3.3 Installation Condition 3.3.1 V-method Installation: V-method installation is the most widely mode for daily measurement with pipe inner diameters ranging from 15 mm to 400 mm (½" to 16”). It is also called reflective mode.
  • Page 13: Electrical Installations

    • When wire stripping, do not damage insulating layer which should be reserved. Fig 10: TEK-Clamp 1200A-100H Electrical Connections Cables. Fig 11: Tek-Clamp 1200A-100H Converted Terminal and AC/DC Adaptor Fig 12: TEK-Clamp 1200A-100H Electrical Connections Cables interface. www.tek-trol.com...
  • Page 14: Signal Strength

    Instruction Manual Tek-Clamp 1200A-100H Technology Solutions 4.1 Signal Strength • Signal strength indicates the amplitude of receiving ultrasonic signals by a 3-digit number. [000] means there is no signal detected and [999] refers to the maximum signal strength that can be received.
  • Page 15: Transmitter Connections

    Instruction Manual Tek-Clamp 1200A-100H Technology Solutions 4.2 Transmitter Connections 4.2.1 Basic Circuit of the Transmitter The converter can supply the uncontrollable current to the coil in the sensor of electromagnetic flow meter. The head amplifier amplifies the electromotive force from the sensor and converts it into standard signals of current or frequency so that the signals can be used for displaying, controlling, and processing.
  • Page 16: Menu

    Instruction Manual Tek-Clamp 1200A-100H Technology Solutions • Push “Down” & “Compound” or “Up” & “Compound” “Down” key Subtract 1 from the number above cursor “Up” key Plus 1 to the number above cursor “Compound” & “Down” To shift cursor to left “Compound”...
  • Page 17 Instruction Manual Tek-Clamp 1200A-100H Technology Solutions 4. Linear material and its sound speed and thickness shows half sentence what any linear. 5. For non-standard liquids, the sound speed of the liquid is also needed. 6. Generally, the Standard M1 clamp-on transducers is selected.
  • Page 18: Menu Window Details

    Instruction Manual Tek-Clamp 1200A-100H Technology Solutions 4.4.3 Menu Window Details Menu Window Function Display instant flow rate/net totalizer. Adjust the units in M30- Display instant flow rate/instant flow velocity. Adjust the units in M30-M32 Display instant flow rate/positive totalizer. Adjust the units in M30-M32 Display instant flow rate/negative totalizer.
  • Page 19 Instruction Manual Tek-Clamp 1200A-100H Technology Solutions Input signal strength when the pipe flow is set to be empty. For example: inputting 65 means when the signal strength is lower than 65, the flow meter will think that there is no liquid in...
  • Page 20 Instruction Manual Tek-Clamp 1200A-100H Technology Solutions flow directly to the thermal printer hanged inside bus. Setup printing data output to outside serial port (RS485 port) Display analogue input AI5(reserved for the Tek-Clamp 1200A AI5 setup mainboard) Setup of OCT totalizer pulse output, pulse width, range:6 Ms- 1000Ms.
  • Page 21 Instruction Manual Tek-Clamp 1200A-100H Technology Solutions frequency signal output upper limit of alarm, confirm a range. When actual flow is Setup upper limit flow of over the range set in this frequency signal output window, then it creates an LCD backlit control...
  • Page 22 Instruction Manual Tek-Clamp 1200A-100H Technology Solutions Display the flow rate of last power off Display total times of power on Scientific calculator Setup threshold value of fluid sound velocity Net totalizer of this month Net totalizer of this year Operating time with trouble (including power off time)
  • Page 23: Troubleshooting

    Instruction Manual Tek-Clamp 1200A-100H Technology Solutions 5 Troubleshooting This section provides troubleshooting techniques for most common operating problems. 5.1 No Display 1. Check the power supply connection. 2. Check the power fuse for faults. 3. Check the contrast of LCD and adjust.
