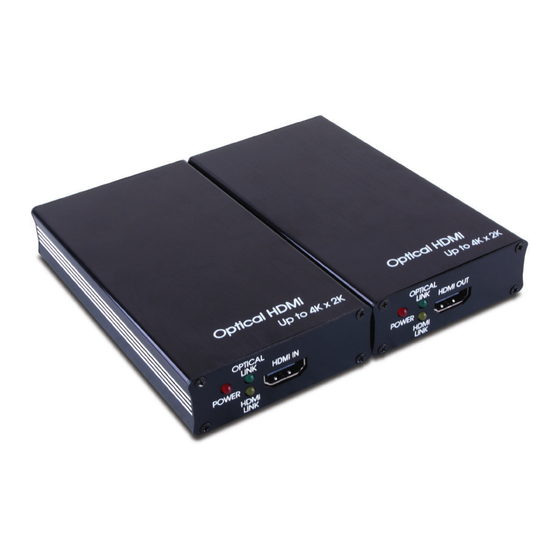

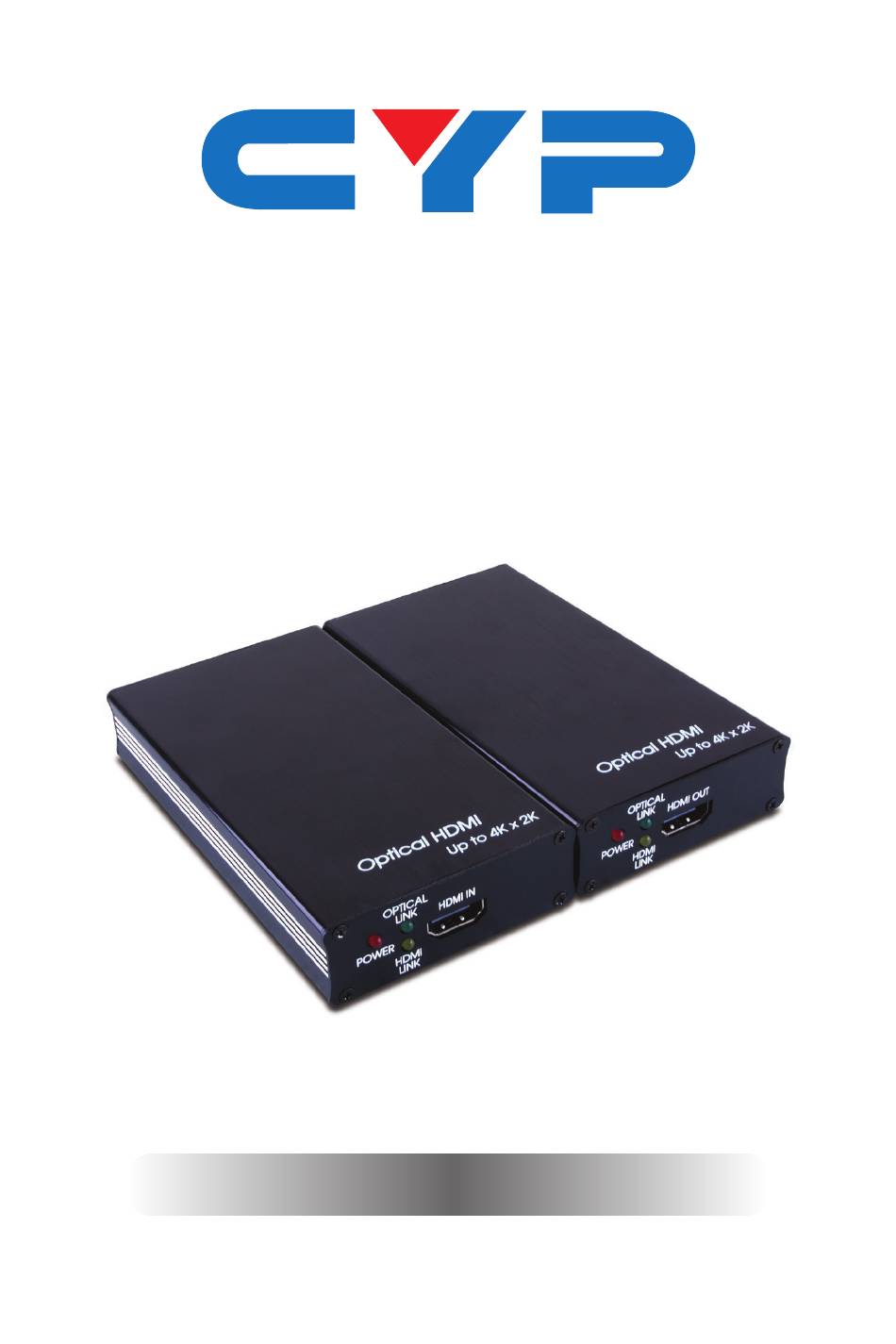

- Page 1 COH-TX2 & COH-RX2 4K x 2K HDMI to Optical Transmitter and Receiver Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......... 1 5. Features ............1 6. Operation Controls and Functions .... 2 6.1 Transmitter Front and Rear Panels ..2 6.2 Receiver Front and Rear Panels ... 3 7. -
Page 6: Introduction
1. INTRODUCTION The 4Kx2K HDMI to Optical Transmitter and Receiver set uses fiber optic cables to give you longer transmission distances (up to 300m) utilizing thinner, lighter cables for greater flexibility in installations. With this system the HDMI signal is uncompressed and is fully compliant with HDMI and HDCP. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels OPTICAL LINK HDMI IN POWER DC 5V HDMI OPTICAL LINK 1 2 3 POWER LED This LED will illuminate when connected to an AC wall outlet. OPTICAL LINK LED The LED will illuminate when the optical cable is connected and has successfully detected and communicated data between the Transmitter and Receiver. -
Page 8: Receiver Front And Rear Panels
6.2 Receiver Front and Rear Panels OPTICAL LINK HDMI OUT POWER DC 5V HDMI OPTICAL LINK 1 2 3 POWER LED This LED will illuminate when connected to an AC wall outlet.. OPTICAL LINK LED The LED will illuminate when the optical cable is connected and has successfully detected and communicated data between the Transmitter and Receiver. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI Input OPTICAL LINK HDMI IN Power POWER HDMI LINK Supply DC 5V OPTICAL Fiber Optical Cable (up to 300m) Power Supply DC 5V OPTICAL OPTICAL LINK HDMI OUT POWER HDMI LINK HDMI Output Display... -
Page 10: Specifications
8. SPECIFICATIONS Video Bandwidth 340 MHz/10.2 Gbps Optical Fiber OM3 50/125um, SC-SC connector Transmitter Input Port 1×HDMI Output Port 1×Multi-mode Fiber Optical Receiver Input Port 1×Multi-mode Fiber Optical Output port 1×HDMI Resolution Support PC: VGA ~ WUXGA HD: 3D & 480i ~ 1080p (50/60 Hz), 4K×2K (24/25/30 Hz) HDMI In/Out Cable Up to 10m (In) and 10m (Out) at 8-bit... -
Page 11: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM HDCP High-bandwidth Digital Content Protection HDMI High-Definition multimedia Interface... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-COHTX2RX2...
