Summary of Contents for CYP COH-TX
-

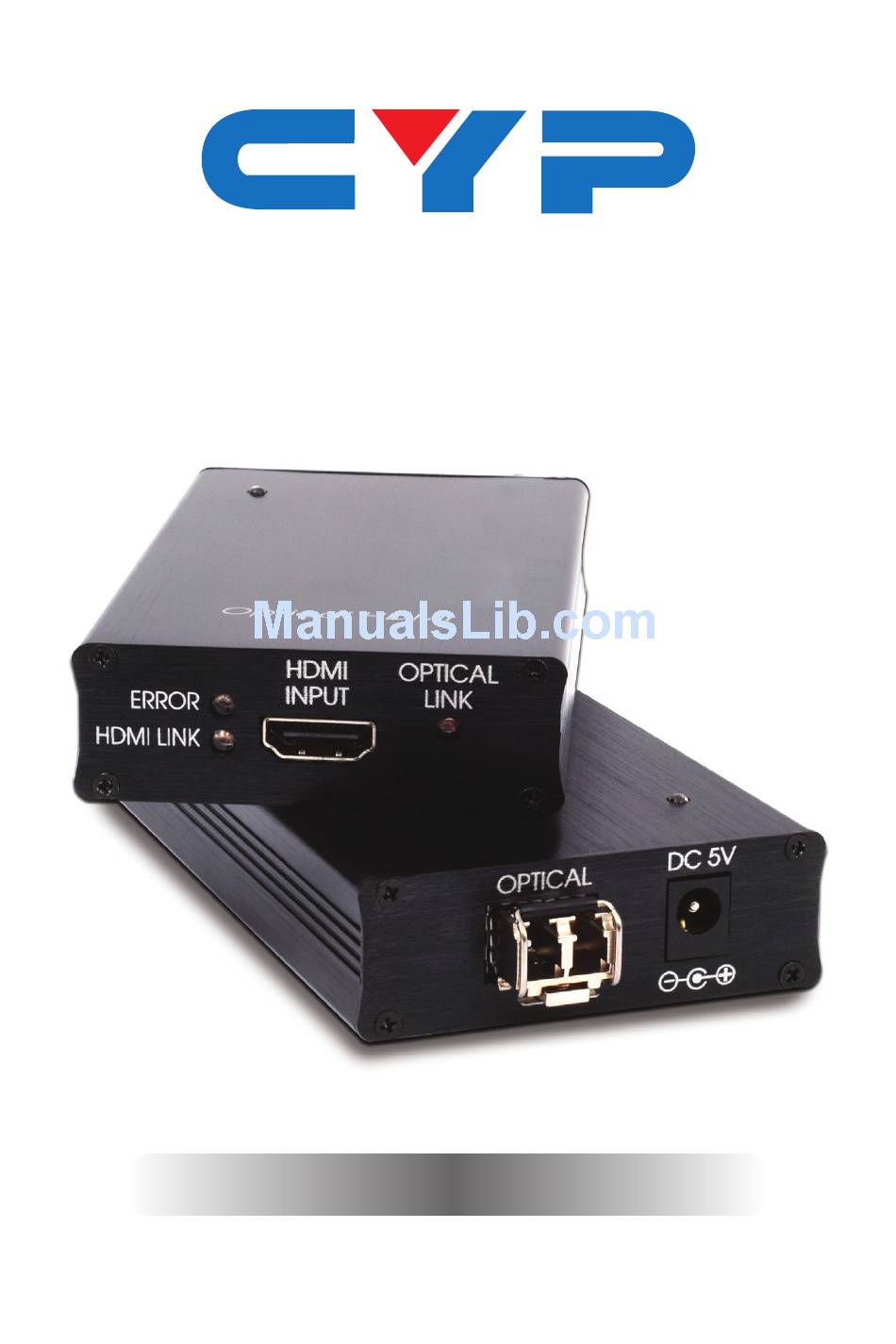

Page 1: Operation Manual
COH-TX & COH-RX HDMI to Optical Transmitter and Receiver Operation Manual Operation Manual... -
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Transmitter Front and Rear Panels ..2 6.2 Receiver Front and Rear Panels ..3 7. -
Page 6: Introduction
1. INTRODUCTION With HDMI becoming more and more popular around the world, many consumers have been searching for a way to transmit HDMI signals over very long distances. The HDMI to Optical Transmitter and Receiver set which uses fiber optical cables will give you longer transmission distances (up to 300m) while also providing you with thinner, lighter cables for easier installation. -
Page 7: Operation Controls And Functions

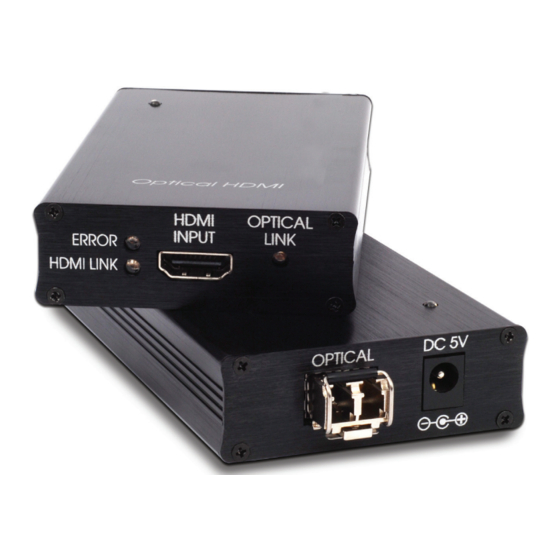

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels DC 5V OPTICAL HDMI OPTICAL INPUT LINK ERROR HDMI LINK HDMI LINK This blue LED will illuminate when at least one optical cable is connected and has successfully detected and sent, between the Transmitter and Reciever, a signal containing video or audio data. -
Page 8: Receiver Front And Rear Panels
6.2 Receiver Front and Rear Panels DC 5V OPTICAL OPTICAL HDMI LINK OUTPUT ERROR HDMI LINK HDMI LINK This blue LED will illuminate when at least one optical cable is connected and has successfully detected and sent, between the Transmitter and Receiver, a signal containing video or audio data. ERROR This red LED will illuminate when there appears to be an error in the input signal data rate that is higher than 75MHz or the HDMI output... -
Page 9: Support Timing Chart
7. SUPPORT TIMING CHART 7.1 TV Timing Formats Field Rate Picture Aspect Ratio 720x480p 59.94Hz/60Hz 720x480p 59.94Hz/60Hz 16:9 1280x720p 59.94Hz/60Hz 16:9 1920x1080i 59.94Hz/60Hz 16:9 720(1440)x480i 59.94Hz/60Hz 720(1440)x480i 59.94Hz/60Hz 16:9 720x576p 50Hz 720x576p 50Hz 16:9 1280x720p 50Hz 16:9 1920x1080i 50Hz 16:9 720(1440)x576i 50Hz 720(1440)x576i... -
Page 10: Pc Timing
7.2 PC Timing Pixel Refresh Horizontal Pixel Standard Type Format Rate Frequency Frequency 85 Hz 37.9 kHz 31.500 MHz VESA Standard 640 x 350 85 Hz 37.9 kHz 31.500 MHz VESA Standard 640 x 400 85 Hz 37.9 kHz 35.500 MHz VESA Standard 720 x 400 60 Hz... -
Page 11: Connection Diagram
8. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI HDMI OPTICAL INPUT LINK Power ERROR HDMI LINK Supply DC 5V OPTICAL Fibre Optical Cable Power Supply DC 5V OPTICAL OPTICAL HDMI LINK OUTPUT ERROR HDMI LINK HDMI Display... -
Page 12: Specifications
9. SPECIFICATIONS Optical Fiber Duplex MM62.5/125um, LC-LC Connector Transmitter Input Port 1 × HDMI Output Port 1 × Duplex Multi-mode Optical Receiver Input Port 1 × Duplex Multi-mode Optical Output Port 1 × HDMI HDMI In/Out Cable Up to 10 Meters Distance Optical In/Out Cable Up to 300 Meters... -
Page 13: Acronyms
10. ACRONYMS ACRONYM COMPLETE TERM HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
