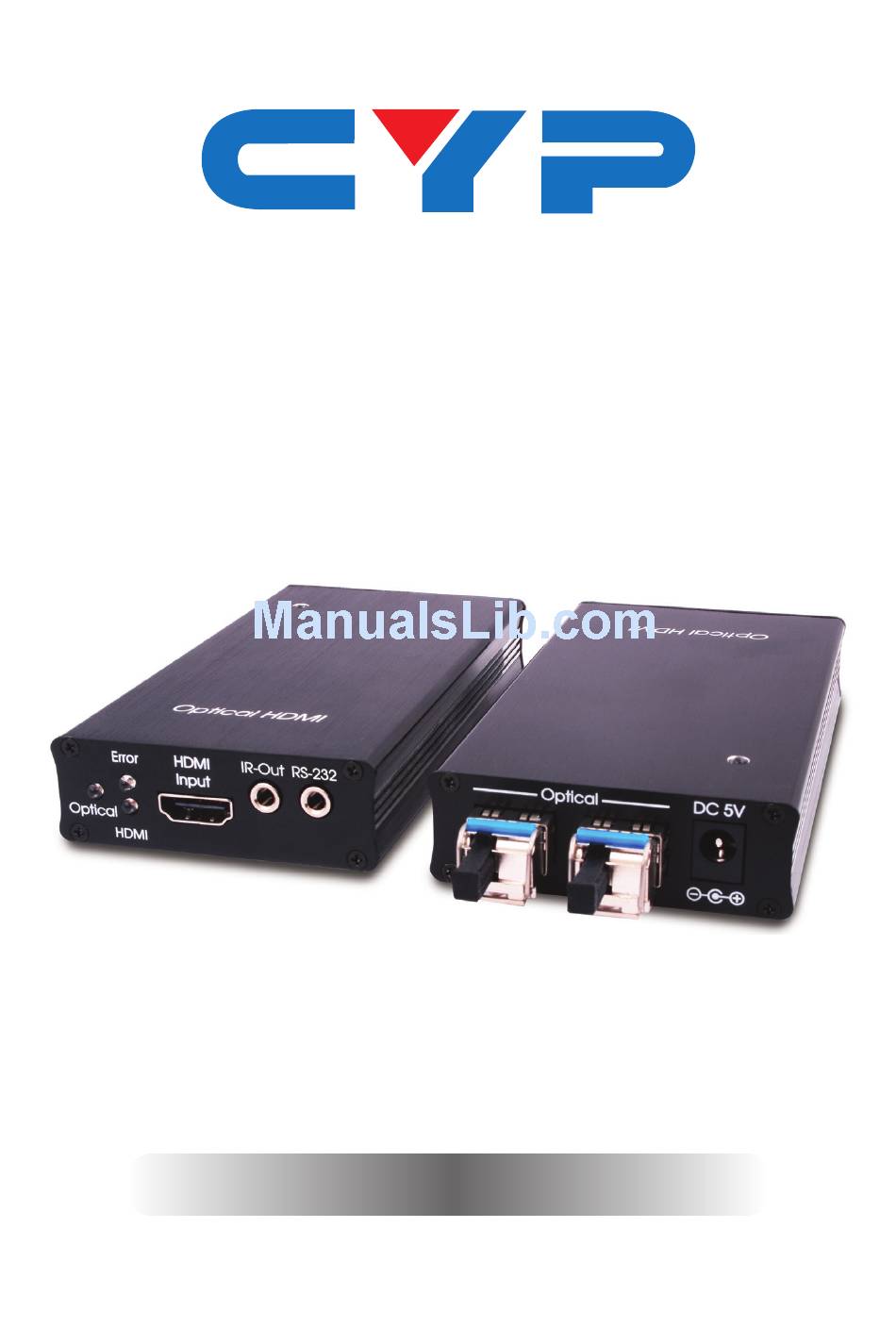

Page 1: Operation Manual
COH-TX1 & COH-RX1 HDMI to Optical Transmitter and Receiver Operation Manual Operation Manual... -
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Transmitter Front and Rear Panels ..3 6.2 Receiver Front and Rear Panels ..4 7. -
Page 6: Introduction
1. INTRODUCTION With HDMI becoming more and more popular around the world, many consumers have been searching for a way to transmit HDMI signals over very long distances. The HDMI to Optical Transmitter and Receiver set which uses fiber optical cables will give you longer transmission distances (up to 300m) while also providing you with thinner, lighter cables for easier installation. -
Page 7: Features
5. FEATURES • HDMI v1.2, HDCP and DVI compliance • Long transmission distances - up to 300m or more • Thinner and lighter cables for easier, more discreet installations • Faster data transmission • Lower power consumption • Support the reading of EDID information... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels Optical DC 5V Error HDMI IR-Out RS-232 Input Optical Main HDMI OPTICAL LED: This blue LED will illuminate when at least one optical cable is connected and has successfully detected and communicated data between the Transmitter and Receiver. -
Page 9: Receiver Front And Rear Panels
6.2 Receiver Front and Rear Panels Optical DC 5V HDMI IR-In RS-232 Error Output Optical Main HDMI OPTICAL LED: This blue LED will illuminate when at least one optical cable is connected and has successfully detected and communicated data between the Transmitter and Receiver. Note: If the LED is not illuminated then users will to need to check the connection of the fiber cable between the Transmitter and Receiver units and then check the connection is good and that... -
Page 10: Support Timing Chart
7. SUPPORT TIMING CHART 7.1 TV Timing Formats Field Rate Picture Aspect Ratio 720 × 480p 59.94 Hz/60 Hz 720 × 480p 59.94 Hz/60 Hz 16:9 1280 × 720p 59.94 Hz/60 Hz 16:9 1920 ×1080i 59.94 Hz/60 Hz 16:9 720 (1440) × 480i 59.94 Hz/60 Hz 720 (1440) ×... -
Page 11: Pc Timing
7.2 PC Timing Refresh Horizontal Pixel Pixel Format Standard Type Rate Frequency Frequency 640×350 85 Hz 37.9 kHz 31.500 MHz VESA Standard 640×400 85 Hz 37.9 kHz 31.500 MHz VESA Standard 720×400 85 Hz 37.9 kHz 35.500 MHz VESA Standard 640×480 60 Hz 31.5 kHz... -
Page 12: Connection Diagram
8. CONNECTION DIAGRAM DVD or Blu-ray Player 1.5m 60° IR Blaster HDMI RS-232 RS-232 Adaptor HDMI IR-Out RS-232 Error Input Power Optical HDMI Supply Optical DC 5V Main Fibre RS232 Equipped Optical PC or Notebook Cable Power Supply DC 5V Optical Main Error... -
Page 13: Specifications
9. SPECIFICATIONS Optical Fiber Duplex SM 9/125um, LC-LC Connector Transmitter Input Port 1 × HDMI, 1 × RS-232, 1 × IR Out Output Port 1 × Duplex Single-mode Fiber Optical Receiver Input Port 1 × Duplex Single-Mode Fiber Optical Output Port 1 ×... -
Page 14: Acronyms
10. ACRONYMS ACRONYM COMPLETE TERM HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
