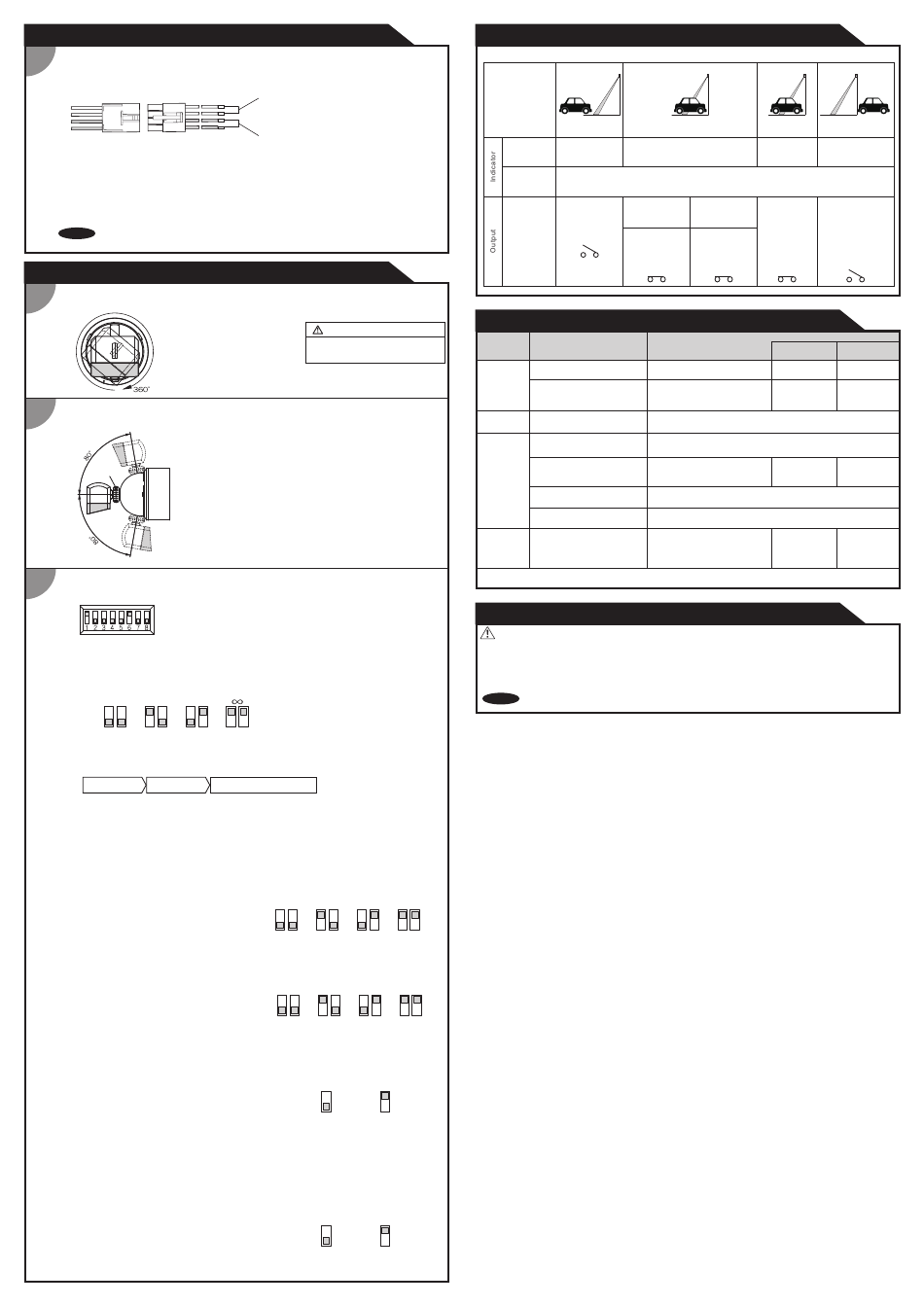

INSTALLATION
2
HOW TO WIRING
< Wiring to the controller >
Penetrate conector to the end.
If connector plugged not enough, signal will not stable.
< Sensor connecting cable setting >
Take care following matter when connect sensor cable.
NOTE
Sensor cable sensor to sensor : Please use VCTF cable 0.75mm
Cable length : Please use cable within 32' 9 11/16"(10m) long between sensor to sensor.
ADJUSTMENTS
1
Adjust detection area of right & left direction.
Rotate sensor head angle which
position you want.
It can be revolved 360˚.
Horizontal angle of detection area
adjustment is as left picture.
2
Adjust detection area of vertical direction.
Lock nut
3
Adjust mode switches.
Adjust mode switch is found pull out sensor head cover. Please set dip switches.
[1] & [2], Presence detection timer. (Sec.)
[3] & [4], Frequency switch setting.
[5] & [6], Adjust detection area length. (Sensitivity)
[7],
[8],
(3-1) Adjust presence detection time setting
Adjust presence time by mode switch [1] & [2]
Attention : All detection area are adjusted.
2 sec.
15 sec.
60 sec.
1
2
1
2
1
2
< Presence detection >
After power ON, please wait 10 sec without moving object in the detection area.
Presence detect function will be done by this.
Power ON
Wait 10 sec
< Infinity mode switch setting >
When Infinity presence deteation mode is on, LED indicator is [Fast Blinking], and keep detection during
the object is in the detection area.
< CAUTION : When you use infinity mode on >
If the reflection ratio of floor condition will be changed by sudden rain or heavy snow, sensor will be filure
and keep detection.
If happen above situation, please cut power OFF and ON again. (Reset sensor)
(3-2) Adjust frequency switch setting
Mode switch [3] & [4] could adjust four kinds of
frequency position.
< Frequency switch setting >
When using more than one sensor close to each other, set the frequency different for each sensor.
(3-3) Adjust sensor detection area length (Sensitivity)
Mode switch [5] & [6] could adjust detection area
length (Sencitivity).
Set the sensitivity according to the mounting height.
Values below dipswitch are reference only.
< Detection area length switch setting >
[Detection area length] is lough indication. Depend on object or enviroment the effectual sensitivity will be
changed. Please re-adjust the swcitch position.
(3-4) Adjust LED indicator setting
Mode switch [7] turn on the LED indicator in usual.
< Adjust indicator switch setting >
・Turn on when detect : When sensor detect object LED light turn off. LED light indicator is on when waiting.
・Always turn on: LED light indicator is always turn on wheneven sensor detect object or not.
When you getting close to the detection point centor on the floor, you can find the LED indicator light is
more bright. To use this function, [Always turn on] mode can help to check the detection area on the floor.
After check and adjust the detection area, please set the switch to [Turn on when detect] mode.
(3-5) On delay setting
Mode switch [8] could On delay setting.
< On delay setting >
・Normal detection mode: When sensor detect object relay will be on.
・On delay mode: When detect objec the sensor relay will be turned on, after keep stay in the area 3 sec.
Signal output (Yellow)
Relay output (N.O. / Non voltage contact.)
100VAC 1A, 30VDC under 0.1A
Power supply (Gray) 24VDC
2
.
CAUTION : Risk of product failure.
Never rotate sensor head over three
rounds otherwise cable will be broken.
1, Loose sensor head lock nut to anticlockwise direction.
2, Move sensor head angle which you want. And tighten lock nut.
It can be moved up to 80 degrees and down to 80 degrees.
Adjust LED indicator setting.
Adjust On delay.
Other than Infinity, will be changed to the presence
time is 10 minutes when the area has multiple
detection.
1
2
Presence detection mode
1
2
3
3
4
3
4
3
4
L: 2~4m
M: 3~5m
H: 4~6m
5
6
5
6
5
6
When sensor
When sensor
detect object LED
detect object LED
light turn off.
light turn on.
7
OFF
3sec.
8
www.GateOpenerSafety.com | (800) 878-7829 | Sales@GateOpenerSafety.com
CHECKING
Check the operation in the operation mode according to the chart below.
Entrance
(Image)
OFF at
detection
setting
Always turn
ON
setting
OVS-6000
TROUBLESHOOTING
Problem
Does not work
Power voltage
Wire disconnection, connect
trouble.
Does not work
Dirty on the window.
sometime.
It works on
Moving object or light source in
normal
the detection area.
operation.
Detective area of other sensor
is lapped over.
There is some noisy machine
near sensor.
Water droppes on the window.
Sensor signal
Change the floor condition
keep on.
during presence mode.
If the trouble cound not solve, please call installar or service staff.
INFORM BUILDING OWNER / OPERATOR OF THE FOLLOWING ITEMS
WARNING
1. Always keep the detection window clean. If dirty, wipe the window with a damp cloth. Do not use any cleaner / solvent.
2. Do not wash the sensor with water.
3. Do not disassemble, rebuild or repair the sensor yourself, otherwise an electric shock may occur.
4. Always contact your installer or service engineer when changing the settings.
5. Do not paint the detection window.
1. When turning the power ON, always walk-test the detection area to ensure the proper operation.
NOTE
2. Do not place any objects that move or emit light in the detection area. (e.g. plant, illumination, etc.)
4
3
4
Reserved
5
6
7
8
Outside of the
Entry into the area
area
ON
OFF or Blinking
ON
On delay
On delay
detection:
detection:
Normal setting
3sec. setting
Entry into
Stopped 3 sec. or
OFF
the area
more in the area
ON
ON
Possible cause
Possible countermeasures
Set to the stated voltage.
Check the wireing and connector.
Clean up the dirty on the window.
Adjuct detection area or put out the moving object.
Change frequency switch by each
sensors.
Please take the noisy machne away from sensor.
Please re-install in order to avoide the rain water.
Please turn OFF the power and
ON again.
Stopped in the
Passed the area
area
OFF or
ON
Blinking
Within
1.0sec. after
presence
passing
time
OFF
ON
