MeteoClock
®
Elegance First
SM1840 + ASM30 - Owners manual

Advertisement

Table of Contents
loading

Related Manuals for LEXIBOOK Meteo Clock Elegance First SM1840

Summary of Contents for LEXIBOOK Meteo Clock Elegance First SM1840

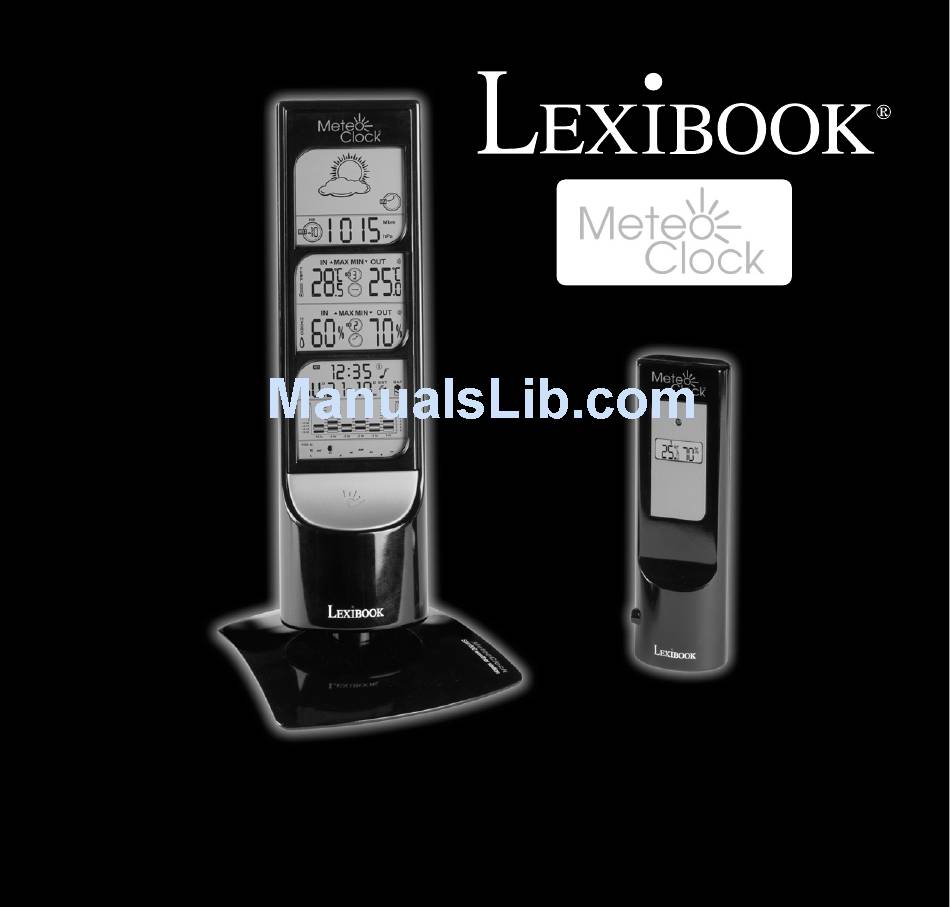

  • Page 1 MeteoClock ® Elegance First SM1840 + ASM30 - Owners manual...
  • Page 2 ---------- English ---------- Français ---------- Español ---------- Português ---------- Italiano ---------- Deutsch ---------- Nederlands...
  • Page 3 SM1840 incorporates the following functions: - Thermometer: The temperature is displayed in real time to the nearest tenth of a degree Celsius. Thanks to its wireless sensor, the weather station can give you the temperature reading outside or in another room.

  • Page 4: Main Features

    12 hours barometric pressure reading. open area. Receives and monitors temperature and Battery type: 2 x AAA size humidity from up to 3 remote sensors via RF technology of 433MHz (One Wireless Thermo Sensor Included). Temperature and humidity trend indicator.

  • Page 5: Getting Started

    A4 – Current barometric pressure A5 – Indoor Temperature A6 – Outdoor Max/Min temperature and humidity memory A7 – Remote sensor channel # (CH) & outdoor temperature trend A8 – Outdoor Temperature A9 – Indoor Humidity A10 – Indoor Max/Min temperature & humidity memory A11 –...
  • Page 6 12/24 display mode. Press and hold to adjust digits at a faster rate. B11 – - (Out °C/°F) / Hold: to adjust the alarm clock and the alert, to trigger the RCC signal search. Press and hold to adjust digits at a faster rate.
  • Page 7 C4 – Outdoor humidity C5 – Automatic learn function icon D. Sensor Unit Function keys *** D1 – °C/°F button: to select °C or °F display. D2 – Channel selection switch: to set the sensor unit to channel 1, 2 or 3.

  • Page 8: Power Supply

    POWER SUPPLY Your Meteoclock works with 2 AA batteries for the main unit and 2 AAA for the remote sensor (all not included). Battery installation Main Unit Remote Sensor 1. Main Unit: Use your finger to lift the battery door located at the back of the main unit.
  • Page 9 2. CH 123 will be displayed. Select a channel (1, 2 or 3) using the [D2] switch. The channel function allows the receiver to identify each remote sensor. The main unit can receive up to 3 different remote channels. The preferred channel number (1, 2 or 3) for each individual remote sensor can be assigned.
  • Page 10 - For a better reception and synchronization, please first place the main unit near a window on a table or on a shelf. - Most of the buttons will not function during the scan and will work again once the DCF signal is well received or the scan is stopped manually.

  • Page 11: Clock And Alarm Settings

    5. Time Zone: If you receive no radio-control signal, the time zone should be set to 0. The time zone is used in countries which can receive the radio-control signal but are not located in the GMT+1 zone (Madrid, Paris, Roma, Berlin time zone).
  • Page 12 If you are located in the GMT-1 zone, you should set the time zone to -1 and so on. This operation will adjust the radio control clock automated time to your time zone. 6. Day of the week : It can be displayed in different 8 languages: for English, select EN; German (GE), French (FR), Spanish (SP), Italian (IT), Dutch (NE), Danish (DA), and Russian (RU).
  • Page 13 1. Press and hold [B6]; the height in metres flashes [A4]. 2. Press [B7] to increase the value and [B8] to decrease the height to the nearest ten. If you want to move the digits at a faster rate, keep [B7] / [B8] pressed down. The range is 200m below sea level to 2,500m above sea level.
  • Page 14 The barometric pressure [A4] can be measured in 3 different units: inHg (inches of mercury), mb (millibar) and hPa (hecto-Pascal). Inches of mercury are employed in the United States. Millibars and hecto-Pascal are equivalent. You can select the barometric pressure to be displayed in nHg or in mb / hPa.
  • Page 15 12 hours but decreases slightly in the next 3 hours, the weather station might forecast rain, but you could expect the probability of rain to remain low. On the other hand, if you observe a sudden and large shift in pressure, the weather forecast is more likely to be extreme. For example, if the forecast is rain, and you observe a large and sudden downward shift of pressure, the rain is likely to be heavy.
  • Page 16 1°C or higher than 34°C, the temperature alarm will ring and [A8] will blink. It will ring for a few seconds, stop, and ring a few seconds later until it is turned off.
  • Page 17 Every 12 hours approximately, the oceans on each side of the planet rise slightly then fall back. This movement is called tides. It is the result of the gravitational pull of the moon and the sun and the rotations of the earth, moon and sun. Your weather station displays the tide status [A17] as follows:...
  • Page 18 Press and hold [B2] to remove a channel manually. It will automatically search and register new chan- nel again if a new channel is received. If no temperature is displayed on an existing channel (“ - - . –“ is displayed on the LCD), press and hold [B2] to cancel that channel and receive the channel again.

  • Page 19: Specifications

    Resolution: 0.1°C MAINTENANCE In order to clean the unit, use only a soft cloth moistened with water; do not use any detergent product. Do not dismantle or drop the unit. Remove the batteries if the unit is not going to be used for an extended period of time.

  • Page 20: Troubleshooting

    TROUBLESHOOTING Problem: Solution : Cannot receive radio control DCF-77 Place the clock near a window, up and away from signals to update the clock. metal objects or electrical appliances such as TVs, computers, monitors, etc. The temperature measurements of Wait for about 1-2 minute to ensure the remote the remote sensor and receiver do sensor and receiver are in phase.

  • Page 21: Warranty

    Our warranty covers material or installation-related defects attributable to the manufacturer, with the exception of wear caused by failure to respect the instructions for use or any unauthorised work on the equipment (such as dismantling, exposure to heat or damp, etc.).

  • Page 22: Declaration Of Conformity

    EN301489-1-3. We hereby declare that the above named product is in conformity to all the essential requirements of R&TTE Directive 1999/5/EC of 09. March 1999.
