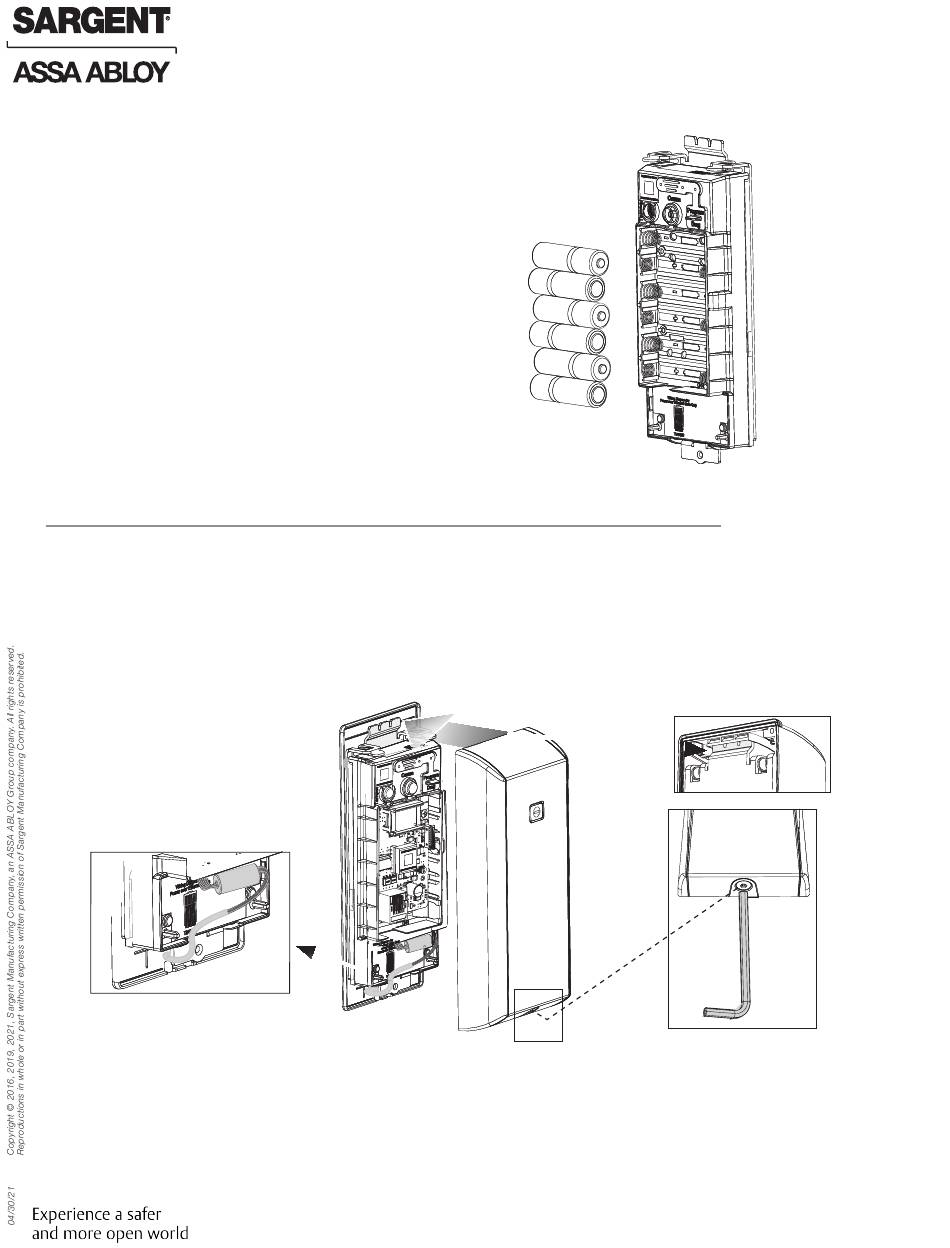

B. IN120 (WIFI)

1. Once controller is securely in place, place (6) "AA"

alkaline batteries in the compartment, being care-

ful to align polarity properly.

2. After batteries are installed, there is a slight delay;

then an audible "beep" will sound and the lock

motor will cycle.

6 Inside Cover Installation

1. Assemble cover by hooking top edge on inside mounting plate taking care not

to pinch gasket (top edge goes between plate and gasket).

2. Carefully press bottom of cover toward door without pinching any wires.

3. Secure the cover with a security allen wrench.

*Note location of installed ferrite bead (IN220 PoE) and excess wires (Fig. 6A, D).

Fig. 6D

Fig. 5B

Fig. 6A

1-800-810-WIRE • www.sargentlock.com • A8185D

IN120 / IN220 Exit Device

Fig. 6B

Security

Allen Screw

Fig. 6C
